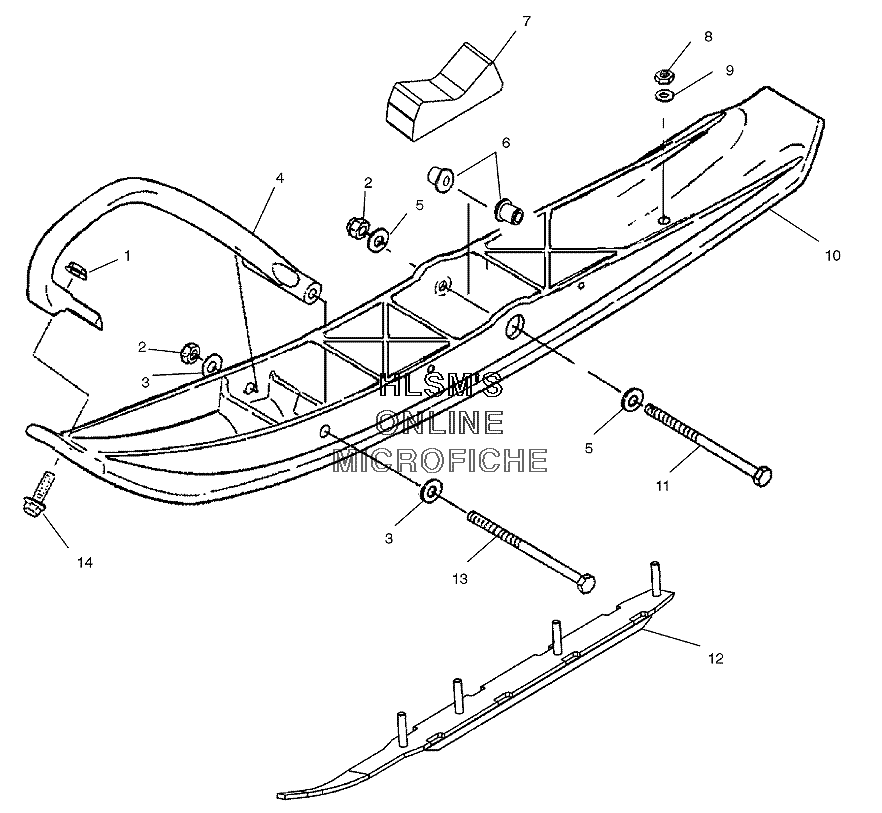

SKI ASSEMBLY для Polaris FRONTIER TOURING (S03NT7DS) - 2003 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-070 TOE-PLASTIC SKI (BLACK)TOE-PLASTIC SKI (BLACK)
-
57556130 WASHERWASHER
-
65132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
75412018 STOP, RUBBERSTOP, RUBBER
-
87542324 NUT, NYLOKNUT, NYLOK
-
97556175 WASHER FL-YWASHER FL-Y
-
101820929-070 COMP SKI, BLANK SERVICE ASSY. (BLACK)COMP SKI, BLANK SERVICE ASSY. (BLACK)
-
117517968 SCREW HEXAGON/CAP YSCREW HEXAGON/CAP Y
-
122874066 SKAG, ACCU-TRAC DUAL (4"X60 DEG)SKAG, ACCU-TRAC DUAL (4"X60 DEG)
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
