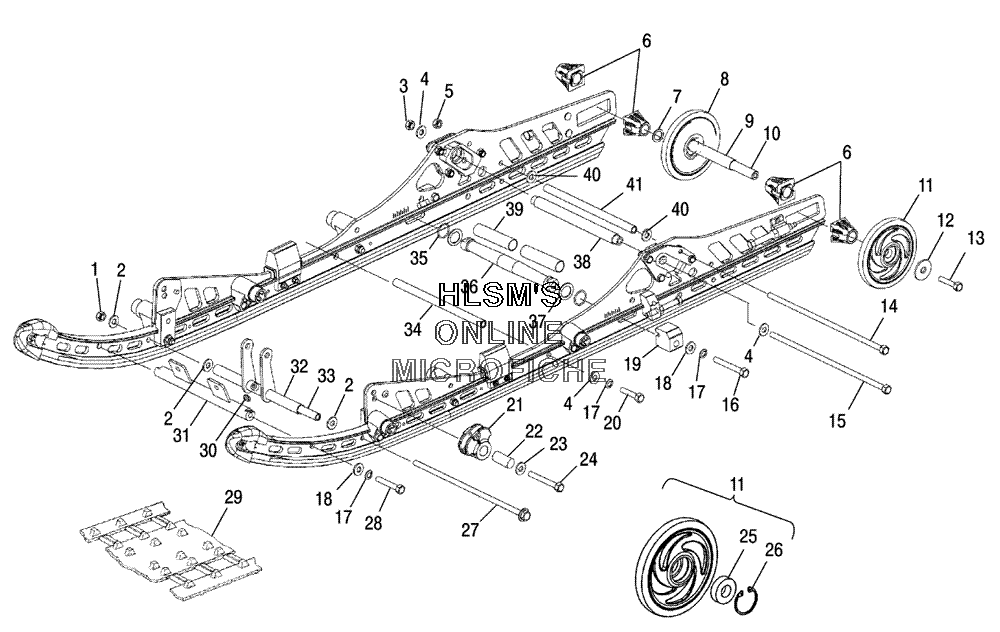

SUSPENSION - REAR TRACK для Polaris FRONTIER TOURING (S03NT7DS) - 2003 года выпуска
-
№АртикулНазвание
-
17547217 NUT NYLOK GR8, YNUT NYLOK GR8, Y
-
27556216 WASHERWASHER
-
37542439 NUT, NYLOKNUT, NYLOK
-
47555806 WASHER FLATWASHER FLAT
-
57547064 NUT, NYLOKNUT, NYLOK
-
65432535 SPACER IDLERSPACER IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL, PLAIN ASSY. (6.38 O.D.)WHEEL, PLAIN ASSY. (6.38 O.D.)
-
95333285 SPACER IDLER, LONGSPACER IDLER, LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
111590303-244 WHEEL IDLER, ASSY. HP (BRIGHT SILVER METALLIC)WHEEL IDLER, ASSY. HP (BRIGHT SILVER METALLIC)
-
127556130 WASHERWASHER
-
137517731 BOLTBOLT
-
147517896 SCREW HEXAGON HEAD CAP YSCREW HEXAGON HEAD CAP Y
-
157517821 SCREW HEXAGON HEAD CAP YSCREW HEXAGON HEAD CAP Y
-
167517856 SCREW 1/4 HEXAGON CAP GR8-YSCREW 1/4 HEXAGON CAP GR8-Y
-
177552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
187556042 WASHER, FLATWASHER, FLAT
-
195132583 BLOCK SHOCK PIVOT ADJUSTBLOCK SHOCK PIVOT ADJUST
-
207517247 SCREWSCREW
-
215434897 GUIDE SPRING, SQUAREGUIDE SPRING, SQUARE
-
225010332 BUSHINGBUSHING
-
237555976 WASHER FLATWASHER FLAT
-
247515538 BOLTBOLT
-
253514384 BEARING NTNBEARING NTN
-
267710444 RING, RETAININGRING, RETAINING
-
277517996 SCREW HWH, SP, GR8-YSCREW HWH, SP, GR8-Y
-
287517857 SCREW HEXAGON/CAP GR8-P80YSCREW HEXAGON/CAP GR8-P80Y
-
295411797 TRACK, 136"X1" LIGHTNINGTRACK, 136"X1" LIGHTNING
-
295241473 CLIP, SLIDECLIP, SLIDE
-
295241474 CLIP, GUIDECLIP, GUIDE
-
307080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
31
-
32
-
335334042 TUBE NITROTUBE NITRO
-
345020868 SHAFTSHAFT
-
355411092 O-RINGO-RING
-
365132793 SHAFT TAPEREDSHAFT TAPERED
-
377556401 BUSHINGBUSHING
-
385133093 SHAFT (LOWER)SHAFT (LOWER)
-
395333902 SPACER SHOCK CENTERINGSPACER SHOCK CENTERING
-
407558402 WASHER FLATWASHER FLAT
-
415333477 TUBETUBE
