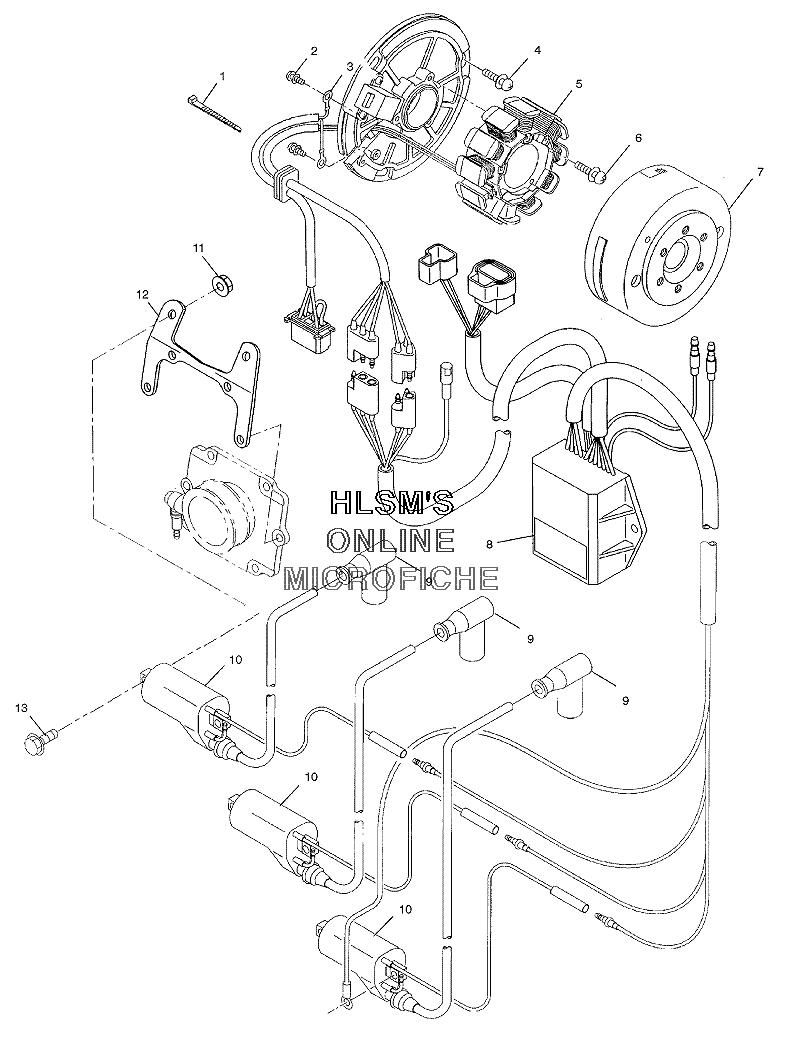

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 800 XCR (S03SB8AS) - 2003 года выпуска`
-
№АртикулНазвание
-
13084512 BAND, WIREBAND, WIRE
-
23081256 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
33084976 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
43083866 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
53086147 STATOR, PLATE ASSY (INCL. 1-3, 5, 6)STATOR, PLATE ASSY (INCL. 1-3, 5, 6)
-
63085604 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
73085607 FLYWHEEL ASSYFLYWHEEL ASSY
-
83086828 CDI, SYSTEMCDI, SYSTEM
-
94020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
103085293 COIL, IGNITIONCOIL, IGNITION
-
113083856 NUT, FLANGENUT, FLANGE
-
123085797 PLATE, IGNITION COILPLATE, IGNITION COIL
-
133084126 BOLT, FLANGEBOLT, FLANGE
