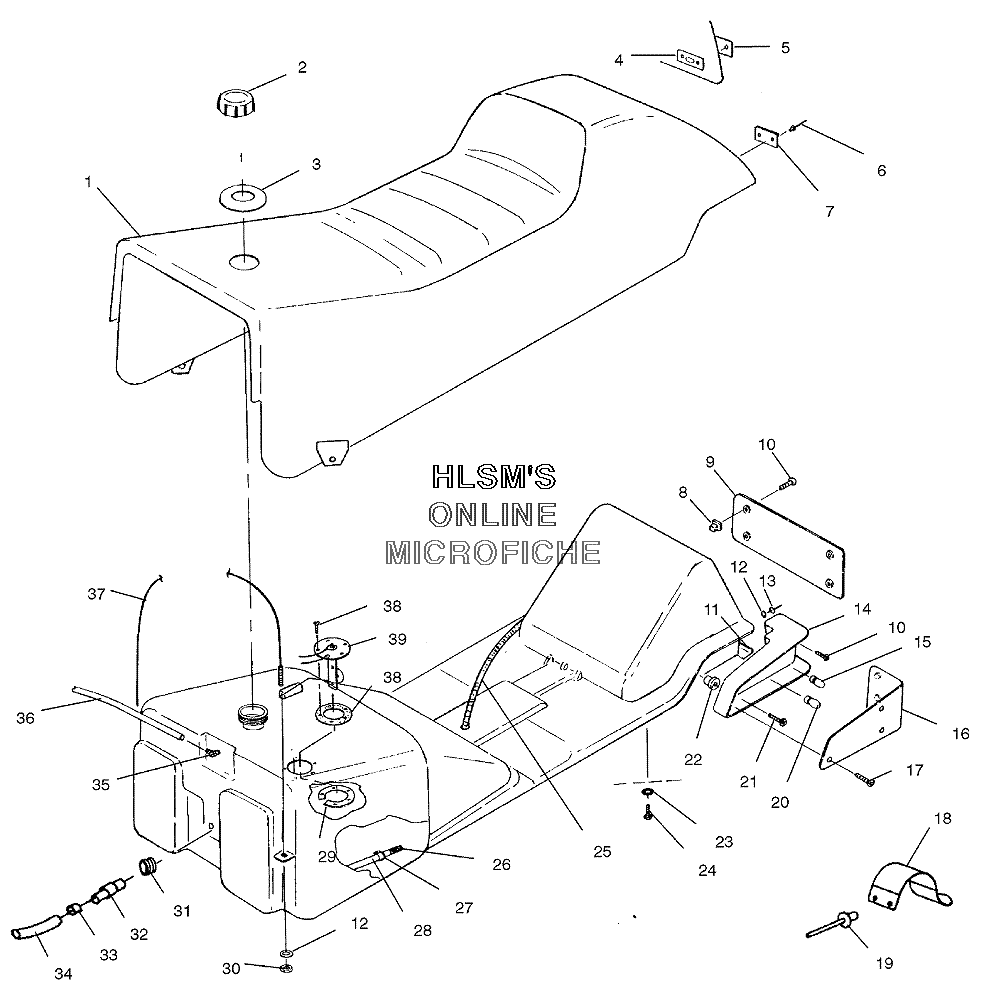

SEAT W/ GAS TANK ASSEMBLY для Polaris 800 XCR (S03SB8AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2683043 SEAT, ASSY 121" SCLPT/CLIP (INCL. 4-22, 25-32, 35, 37)
    SEAT, ASSY 121" SCLPT/CLIP (INCL. 4-22, 25-32, 35, 37)
  • 1
    2683044 COVER, ASSY 121" SCLPT/CLIP
    COVER, ASSY 121" SCLPT/CLIP
  • 2
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 2
    5812123 GASKET
    GASKET
  • 3
    5410842 GROMMET, FUELTANK
    GROMMET, FUELTANK
  • 4
    7080550 GROMMET, RELATCH 1" (BOTTOM)
    GROMMET, RELATCH 1" (BOTTOM)
  • 5
    7080549 GROMMET, RELATCH 1" TOP
    GROMMET, RELATCH 1" TOP
  • 6
    7661058 RIVET
    RIVET
  • 7
    7080548 TWISTLOCK, RELATCH 1" W/HOLE
    TWISTLOCK, RELATCH 1" W/HOLE
  • 8
    7546908 NUT
    NUT
  • 9
    5432008 REFLECTOR SEAT (CENTER)
    REFLECTOR SEAT (CENTER)
  • 10
    7522004 SCREW SELF-TAP
    SCREW SELF-TAP
  • 11
    1012838-067 BRACKET SEAT MOUNT W/CLIP ASSY (BLACK)
    BRACKET SEAT MOUNT W/CLIP ASSY (BLACK)
  • 12
    7555746 WASHER
    WASHER
  • 13
    7661046 RIVET POP
    RIVET POP
  • 14
    5432002 HOUSING LENS (LEFT)
    HOUSING LENS (LEFT)
  • 14
    5432003 HOUSING LENS (RIGHT)
    HOUSING LENS (RIGHT)
  • 15
    4030045 BULB
    BULB
  • 16
    5432031 LENS (LEFT)
    LENS (LEFT)
  • 16
    5432032 LENS (RIGHT)
    LENS (RIGHT)
  • 17
    7512054 SCREW
    SCREW
  • 18
    5243185 RETAINER CLIP, TOOL POUCH
    RETAINER CLIP, TOOL POUCH
  • 19
    7621472 RIVET
    RIVET
  • 20
    4032084 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 21
    7511954 SCREW
    SCREW
  • 22
    7541901 NUT, WELL
    NUT, WELL
  • 23
    7558302 WASHER, WROUGHT
    WASHER, WROUGHT
  • 24
    7512242 SCREW
    SCREW
  • 25
    2460541 HARNESS, TAILLIGHT 121" (SCULPT)
    HARNESS, TAILLIGHT 121" (SCULPT)
  • 26
    7052215 PICK-UP, FUEL W/MESH
    PICK-UP, FUEL W/MESH
  • 27
    7080768 RING, COMPRESSION
    RING, COMPRESSION
  • 28
    8350020-600 FUEL LINE ETHER (3/8")
    FUEL LINE ETHER (3/8")
  • 29
    5244067 FLANGE FUEL TANK MOUNTING
    FLANGE FUEL TANK MOUNTING
  • 30
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 31
    5432981 GROMMET, NITRILE (1/2")
    GROMMET, NITRILE (1/2")
  • 32
    7052214 FITTING, ST.THRM 3/8 HOSE
    FITTING, ST.THRM 3/8 HOSE
  • 33
    7080544 CLAMP, HOSE
    CLAMP, HOSE
  • 34
    8350016-600 FUEL LINE, ETHER (3/8") (RED)
    FUEL LINE, ETHER (3/8") (RED)
  • 35
    7052095 FITTING (90 DEG)
    FITTING (90 DEG)
  • 36
    8450061-600 LINE, FUEL
    LINE, FUEL
  • 37
    7080559 CABLE, TANK RETENTION
    CABLE, TANK RETENTION
  • 38
    2410012 HEADWEAR PACKAGE SENDING UNIT
    HEADWEAR PACKAGE SENDING UNIT
  • 39
    3280306 SENDER, FUEL LEVEL
    SENDER, FUEL LEVEL
