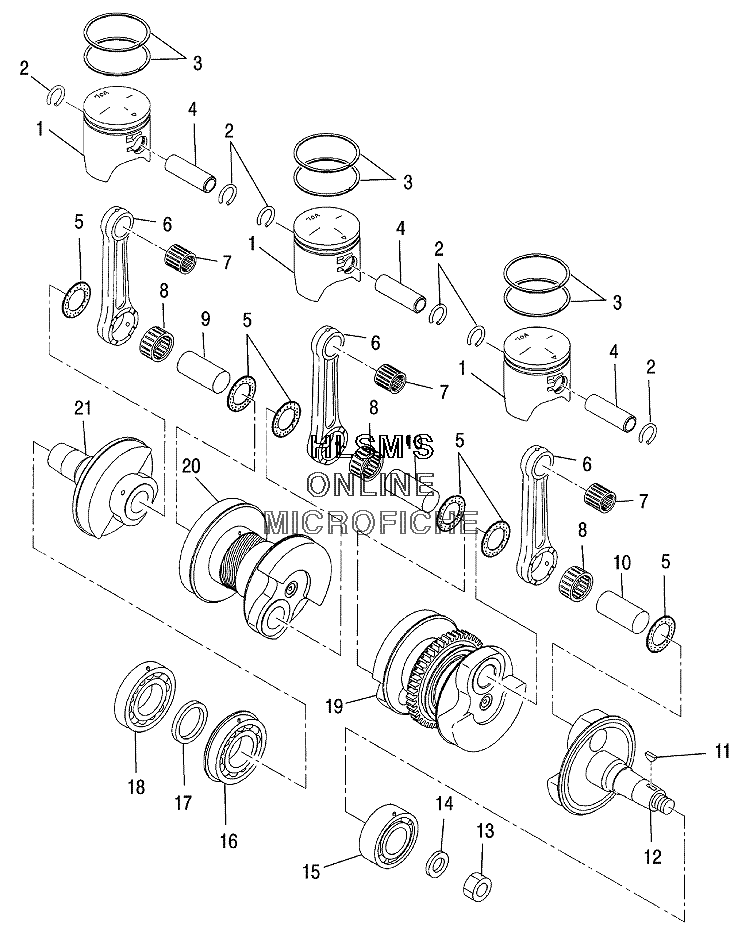

PISTON AND CRANKSHAFT для Polaris 800 XCR (S03SB8AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3086142 PISTON
    PISTON
  • 2
    3084167 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 3
    3085803 RING, PISTON
    RING, PISTON
  • 4
    3085596 PIN, PISTON
    PIN, PISTON
  • 5
    3083804 SPACER
    SPACER
  • 6
    3085790 ROD, CONNECTING
    ROD, CONNECTING
  • 7
    3083216 BEARING, SMALL END
    BEARING, SMALL END
  • 8
    3085752 BEARING, LARGE END
    BEARING, LARGE END
  • 9
    3085259 PIN, CRANK #2
    PIN, CRANK #2
  • 10
    3085258 PIN, CRANK #1
    PIN, CRANK #1
  • 11
    3080130 KEY, WOODRUFF
    KEY, WOODRUFF
  • 12
    3086127 CRANKSHAFT ASSY (INCL. 5, 6, 8-10, 12, 15-21)
    CRANKSHAFT ASSY (INCL. 5, 6, 8-10, 12, 15-21)
  • 12
    3085251 CRANKSHAFT #1
    CRANKSHAFT #1
  • 13
    3083093 NUT
    NUT
  • 14
    3084457 WASHER
    WASHER
  • 15
    3085260 BEARING, BALL
    BEARING, BALL
  • 16
    3085753 BEARING, BALL
    BEARING, BALL
  • 17
    3085261 SPACER
    SPACER
  • 18
    3085754 BEARING, BALL
    BEARING, BALL
  • 19
    3085789 CRANKSHAFT (CENTER) (INCL. 5, 6, 8-10, 19, 20)
    CRANKSHAFT (CENTER) (INCL. 5, 6, 8-10, 19, 20)
  • 19
    3086128 CRANKSHAFT (MAG) (INCL. 10)
    CRANKSHAFT (MAG) (INCL. 10)
  • 20
    3086129 CRANKSHAFT (PTO) (INCL. 9)
    CRANKSHAFT (PTO) (INCL. 9)
  • 21
    3085751 CRANKSHAFT #3
    CRANKSHAFT #3
