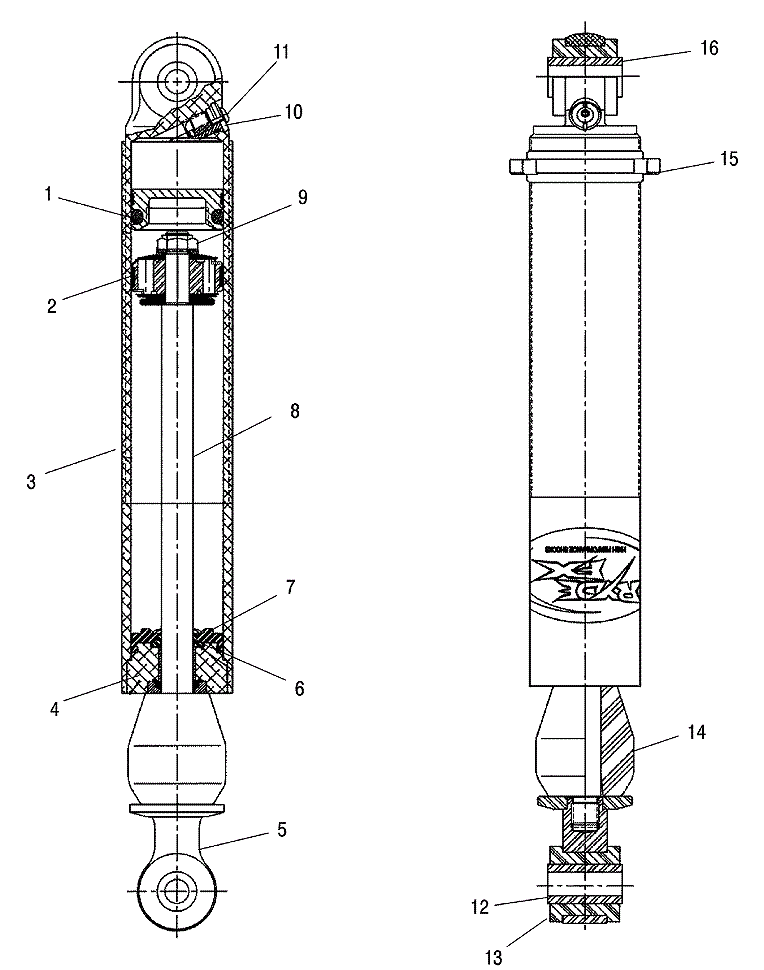

SUSPENSION - RYDE FX - IFS SHOCK для Polaris 800 XCR (S03SB8AS) - 2003 года выпуска
-
№АртикулНазвание
-
11700023 IFPIFP
-
11700032 IFP WEAR BANDIFP WEAR BAND
-
11700048 IFP O-RINGIFP O-RING
-
21700108 BANDED PISTON ORIFICE (.086")BANDED PISTON ORIFICE (.086")
-
21700031 PISTON WEAR BANDPISTON WEAR BAND
-
21700077 WASHER (TOP/OUTER)WASHER (TOP/OUTER)
-
21700078 BACK-UP WASHERBACK-UP WASHER
-
31700112 BODY ASSYBODY ASSY
-
41700007 CYLINDER HEAD ASSY (1/2" ROD)CYLINDER HEAD ASSY (1/2" ROD)
-
51700011 MOUNT (UPPER)MOUNT (UPPER)
-
61700021 ROD SEALROD SEAL
-
71700022 CAP SEALCAP SEAL
-
81700028 SHAFTSHAFT
-
91700057 NUTNUT
-
101700076 PRESS VALVE ASSYPRESS VALVE ASSY
-
101700047 PRESS VALVE O-RINGPRESS VALVE O-RING
-
111700056 VALVE SCREWVALVE SCREW
-
121700079 SLEEVESLEEVE
-
131700072 BUSHINGBUSHING
-
141700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
151700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
161700036 BUSHINGBUSHING
-
167041978 SHOCK IFS, GAS X-10 ARVINSHOCK IFS, GAS X-10 ARVIN
