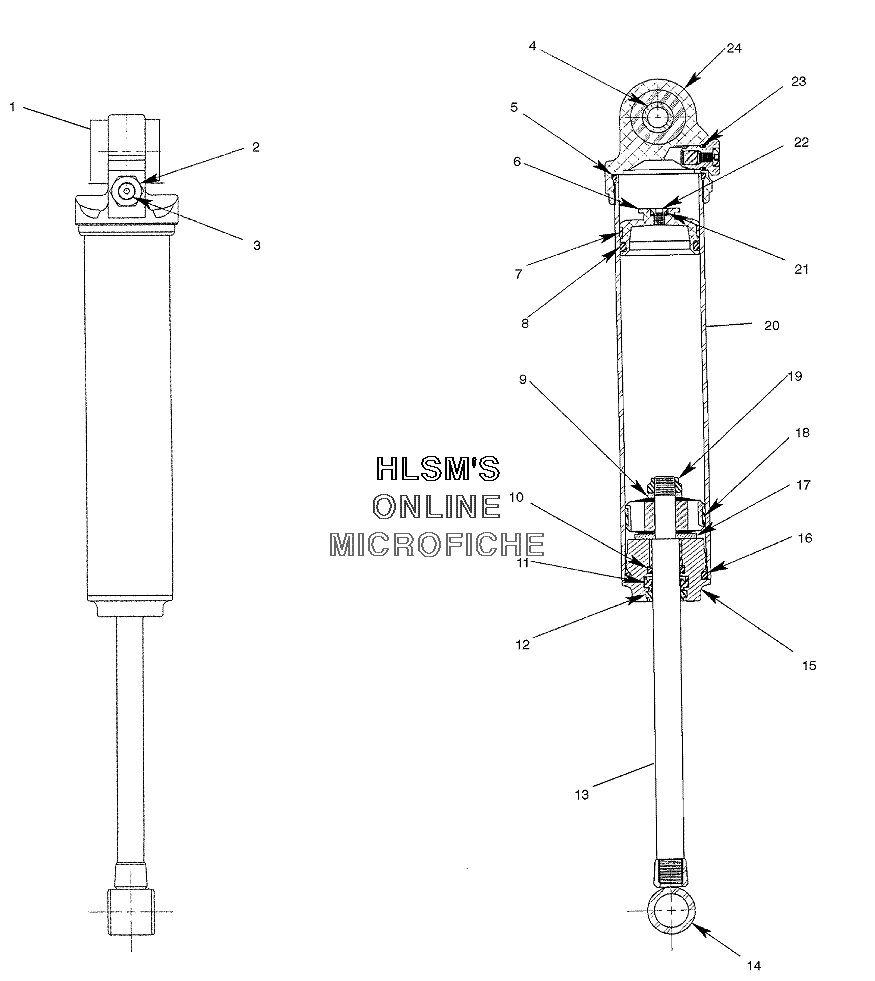

SUSPENSION - REAR SHOCK TRACK - GAS для Polaris 800 XCR (S03SB8AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5432040 BUSHING, EYELET
    BUSHING, EYELET
  • 2
    1500014 VALVE ASSY AIR
    VALVE ASSY AIR
  • 3
    1500019 SCREW
    SCREW
  • 4
    5020657 BUSHING
    BUSHING
  • 5
    1500108 O-RING (.103W-1.549ID)
    O-RING (.103W-1.549ID)
  • 6
    1500187 PISTON FLOATING
    PISTON FLOATING
  • 7
    1500006 BEARING, EXTERNAL
    BEARING, EXTERNAL
  • 8
    1500003 O-RING, ENDCAP
    O-RING, ENDCAP
  • 9
    1500015 PLATE, BACKUP
    PLATE, BACKUP
  • 10
    1500021 O-RING (INNER)
    O-RING (INNER)
  • 11
    1500025 U-CUP, URETH
    U-CUP, URETH
  • 12
    1500024 WIPER, CLEAR (OUTER)
    WIPER, CLEAR (OUTER)
  • 13
    1500035 SHAFT
    SHAFT
  • 14
    1500302 EYELET
    EYELET
  • 15
    1500145 BEARING, ASSY
    BEARING, ASSY
  • 16
    1500020 O-RING (.103W-1.299ID)
    O-RING (.103W-1.299ID)
  • 17
    1500017 PLATE (TOP/OUTER)
    PLATE (TOP/OUTER)
  • 18
    1500002 BEARING, PISTON
    BEARING, PISTON
  • 19
    1500016 NUT, LOCK
    NUT, LOCK
  • 20
    1500303 BODY
    BODY
  • 21
    1500022 O-RING, DRUM (OUTER)
    O-RING, DRUM (OUTER)
  • 22
    1500018 SCREW
    SCREW
  • 23
    1500023 O-RING (OUTER)
    O-RING (OUTER)
  • 24
    1500288 BODY, CAP
    BODY, CAP
  • 24
    7041809 SHOCK REAR TRACK X-10 FOX (INCL. ALL)
    SHOCK REAR TRACK X-10 FOX (INCL. ALL)
