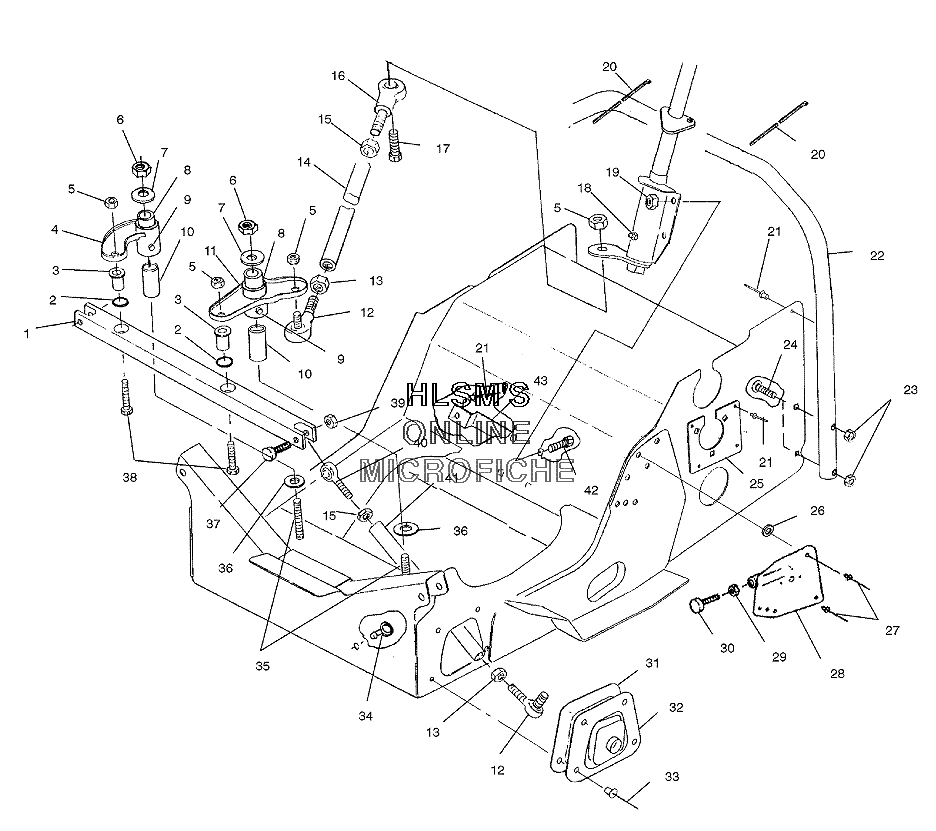

STEERING LINKAGE для Polaris 800 XCR (S03SB8AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1820691 STEERING RACK, W/WEBBS ASSY (LEFT)
    STEERING RACK, W/WEBBS ASSY (LEFT)
  • 2
    5411220 O-RING
    O-RING
  • 3
    5010384 TUBE, SPACER
    TUBE, SPACER
  • 4
    1820579 IDLER ARM (INCL. 8, 9)
    IDLER ARM (INCL. 8, 9)
  • 5
    7542403 NUT LOCK
    NUT LOCK
  • 6
    7547029 NUT, FLEX LOCK
    NUT, FLEX LOCK
  • 7
    7555721 WASHER
    WASHER
  • 8
    3563907 BUSHING
    BUSHING
  • 9
    7080433 FITTING, LUBRICATION THREADED
    FITTING, LUBRICATION THREADED
  • 10
    5010468 SPACER
    SPACER
  • 11
    1822562 ARM, PITMAN ASSY (INCL. 8, 9)
    ARM, PITMAN ASSY (INCL. 8, 9)
  • 12
    7060174 ROD END 3/8, HI-ANGLE (RIGHT)
    ROD END 3/8, HI-ANGLE (RIGHT)
  • 13
    7542401 NUT, HEXAGON (RIGHT)
    NUT, HEXAGON (RIGHT)
  • 14
    5333411 ROD, DRAGLINK
    ROD, DRAGLINK
  • 15
    7542424 NUT (LEFT)
    NUT (LEFT)
  • 16
    7060164 ROD END (LEFT)
    ROD END (LEFT)
  • 17
    7512404 BOLT
    BOLT
  • 18
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 19
    7542303 NUT FLEX-LOCK
    NUT FLEX-LOCK
  • 20
    7080804 CABLE TIE RELEASABLE, 5 1/2"
    CABLE TIE RELEASABLE, 5 1/2"
  • 21
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 22
    1012902-067 STEERING HOOP, TRIPLE (BLACK)
    STEERING HOOP, TRIPLE (BLACK)
  • 23
    7542103 NUT, FLEXLOC
    NUT, FLEXLOC
  • 24
    7512275 BOLT CAREARIAGE
    BOLT CAREARIAGE
  • 25
    5211806-067 PLATE, BEARING.SUPPORT B'HEAD
    PLATE, BEARING.SUPPORT B'HEAD
  • 26
    7555965 WASHER
    WASHER
  • 27
    7661643 RIVET
    RIVET
  • 28
    1013177 TORQUE STOP, WELD
    TORQUE STOP, WELD
  • 29
    7542414 NUT, HEXAGON
    NUT, HEXAGON
  • 30
    3110078 STOP, TORQUE
    STOP, TORQUE
  • 31
    5411249 BOOT, TIEROD MODULE
    BOOT, TIEROD MODULE
  • 32
    5211796-067 PLATE, BOOT MODULE
    PLATE, BOOT MODULE
  • 33
    7621323 POP RIVET
    POP RIVET
  • 34
    4020139 CLIP (ROSEBUD)
    CLIP (ROSEBUD)
  • 35
    7517402 SCREW
    SCREW
  • 36
    7556053 WASHER
    WASHER
  • 37
    7515434 SCREW
    SCREW
  • 38
    7517574 SCREW
    SCREW
  • 39
    7542411 NUT, FLEXLOC
    NUT, FLEXLOC
  • 40
    7060166 ROD END (LEFT)
    ROD END (LEFT)
  • 41
    5020970 RID, TIE (BLACK)
    RID, TIE (BLACK)
  • 42
    7517428 BOLT
    BOLT
  • 43
    5241997 BRACKET BOLT RETAINER
    BRACKET BOLT RETAINER
