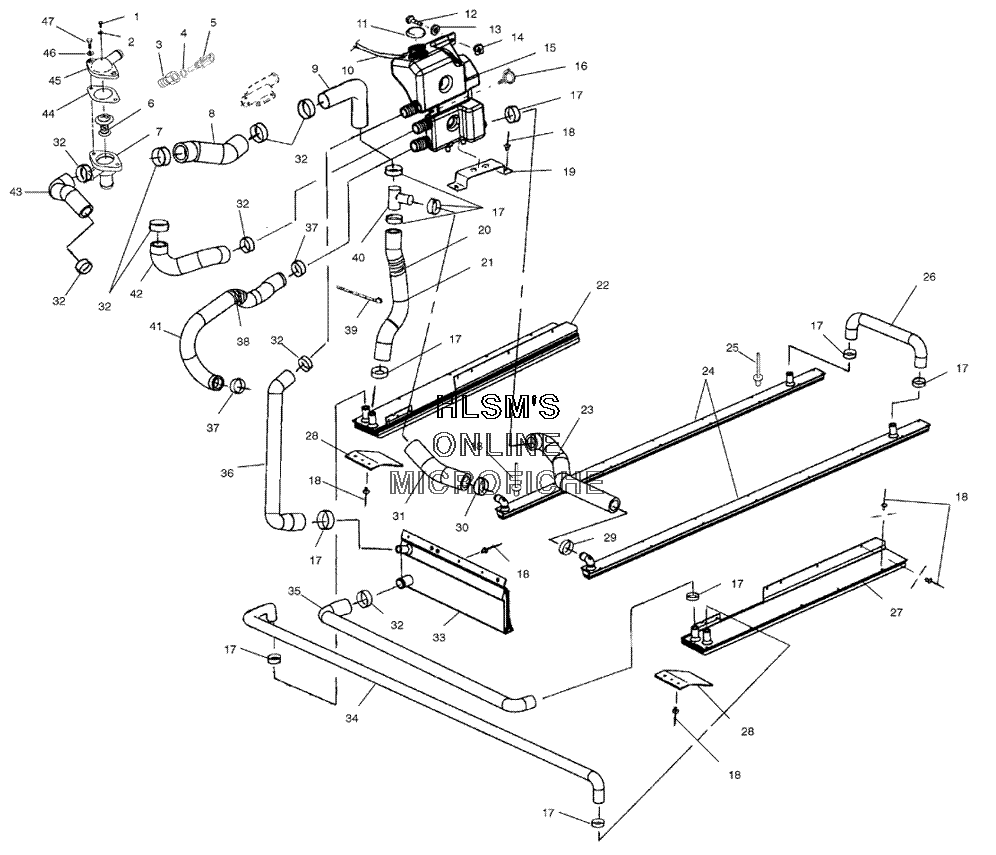

COOLING SYSTEM для Polaris 800 XCR (S03SB8AS) - 2003 года выпуска`
-
№АртикулНазвание
-
17517266 SCREWSCREW
-
27555998 WASHER, FLATWASHER, FLAT
-
33085737 PLUG, THERMOSTATPLUG, THERMOSTAT
-
43086139 GASKET, TEMP SENSORGASKET, TEMP SENSOR
-
53086138 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
67051017 AUTOSTAT, 120DEG.AUTOSTAT, 120DEG.
-
75132025 HOUSING THERMOSTAT, MACHHOUSING THERMOSTAT, MACH
-
85411815 HOSE, STAT OUT/BRAKE IN, 1 IN IDHOSE, STAT OUT/BRAKE IN, 1 IN ID
-
95410845 HOSE, COOLER 3-WAY (REAR)HOSE, COOLER 3-WAY (REAR)
-
108450003-1525 LINE, FUEL (1/4 ID/1525 CM.)LINE, FUEL (1/4 ID/1525 CM.)
-
112511270 CAP, PRESSURE (13 LB)CAP, PRESSURE (13 LB)
-
127512276 BOLTBOLT
-
137558302 WASHER, WROUGHTWASHER, WROUGHT
-
147670096 NUTNUT
-
155433269 TANK, COOLANT NO BLEED TRIPLETANK, COOLANT NO BLEED TRIPLE
-
164020139 CLIP (ROSEBUD)CLIP (ROSEBUD)
-
177080841 CLAMP, SPRINGBAND (GREEN)CLAMP, SPRINGBAND (GREEN)
-
187661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
195241331 BRACKET SURGE TANK COINEDBRACKET SURGE TANK COINED
-
207041079 SPRING, HOSE RETAINERSPRING, HOSE RETAINER
-
215411703 HOSE FOOTREST/COOLANT TEE (RIGHT)HOSE FOOTREST/COOLANT TEE (RIGHT)
-
221240051 COOLER, SIDE X-10 (RIGHT)COOLER, SIDE X-10 (RIGHT)
-
235411673 HOSE, STRIP COOLER/TANKHOSE, STRIP COOLER/TANK
-
241240052 WEAR STRIP COOLER (1.00")WEAR STRIP COOLER (1.00")
-
257621432 RIVETRIVET
-
265411383 HOSE, WEARSTRIP COOLER (REAR)HOSE, WEARSTRIP COOLER (REAR)
-
271240059 COOLER, SIDE X-10 (LEFT)COOLER, SIDE X-10 (LEFT)
-
285222863 GUARD, COOLER EXTENTIONGUARD, COOLER EXTENTION
-
285243333 GUARD SIDE COOLER (RIGHT)GUARD SIDE COOLER (RIGHT)
-
297080696 CLAMP, HOSE WORM DRIVE (1.25)CLAMP, HOSE WORM DRIVE (1.25)
-
307080842 CLAMP, SPRINGBAND (BLACK)CLAMP, SPRINGBAND (BLACK)
-
315411704 HOSE, COOLANT TEE/RIGHT WEAR STRIPHOSE, COOLANT TEE/RIGHT WEAR STRIP
-
327080844 CLAMP, SPRINGBAND (BLACK)CLAMP, SPRINGBAND (BLACK)
-
332511304 EXCHANGER, CLOSE-OFFEXCHANGER, CLOSE-OFF
-
345411706 HOSE, CROSSOVERHOSE, CROSSOVER
-
355411705 HOSE, COOLER/LEFT FOOTREST (FRONT)HOSE, COOLER/LEFT FOOTREST (FRONT)
-
365411717 HOSE COOLER/TOP SURGE (CENTER)HOSE COOLER/TOP SURGE (CENTER)
-
377080845 SPRINGBAND CLAMP (BLACK)SPRINGBAND CLAMP (BLACK)
-
385521242 TUBING, CONVOL (1"X2.5")TUBING, CONVOL (1"X2.5")
-
397080492 CABLE TIE (11")CABLE TIE (11")
-
407052093 CONNECTOR, TEE (3/4")CONNECTOR, TEE (3/4")
-
415411688 HOSE, COOLANTHOSE, COOLANT
-
425411817 HOSE, STAT OUT/TANK (1"ID)HOSE, STAT OUT/TANK (1"ID)
-
435411816 HOSE, ENGINE OUT/STAT (1"ID)HOSE, ENGINE OUT/STAT (1"ID)
-
445830020 GASKET, THERMOSTATGASKET, THERMOSTAT
-
455130942 CAP, THERMOSTAT HOUSING MACH.CAP, THERMOSTAT HOUSING MACH.
-
467552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
477512383 BOLTBOLT
