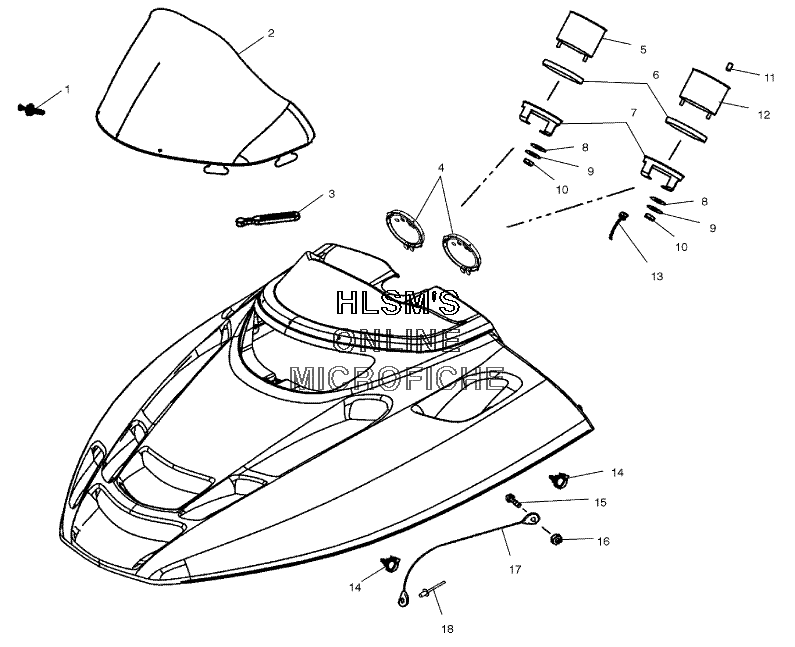

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 440 PRO X (S03NX4CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
25434617 WINDSHIELD 7" CHROME RACEWINDSHIELD 7" CHROME RACE
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
45433960 PLUG DASH, 5"PLUG DASH, 5"
-
53280329 TACHOMETER, 6 P WHITE W/FUEL LTTACHOMETER, 6 P WHITE W/FUEL LT
-
54030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
63280209 CUSHION, TACHOMETER/SPEEDOMETER, RUBBERCUSHION, TACHOMETER/SPEEDOMETER, RUBBER
-
73280210 BRACKET TACHOMETER/SPEEDOMETER 5"BRACKET TACHOMETER/SPEEDOMETER 5"
-
83280157 WASHER FLATWASHER FLAT
-
93280156 WASHER SPLIT LOCKWASHER SPLIT LOCK
-
103280158 NUTNUT
-
113280186 KNOB, TRIP ODOMETER THD. (LEFT)KNOB, TRIP ODOMETER THD. (LEFT)
-
123280348 SPEEDOMETER, 5" 120MPH (WHITE W/ORANGE)SPEEDOMETER, 5" 120MPH (WHITE W/ORANGE)
-
124030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
133280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
144010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
157512018 SCREWSCREW
-
167541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
177080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
187661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
