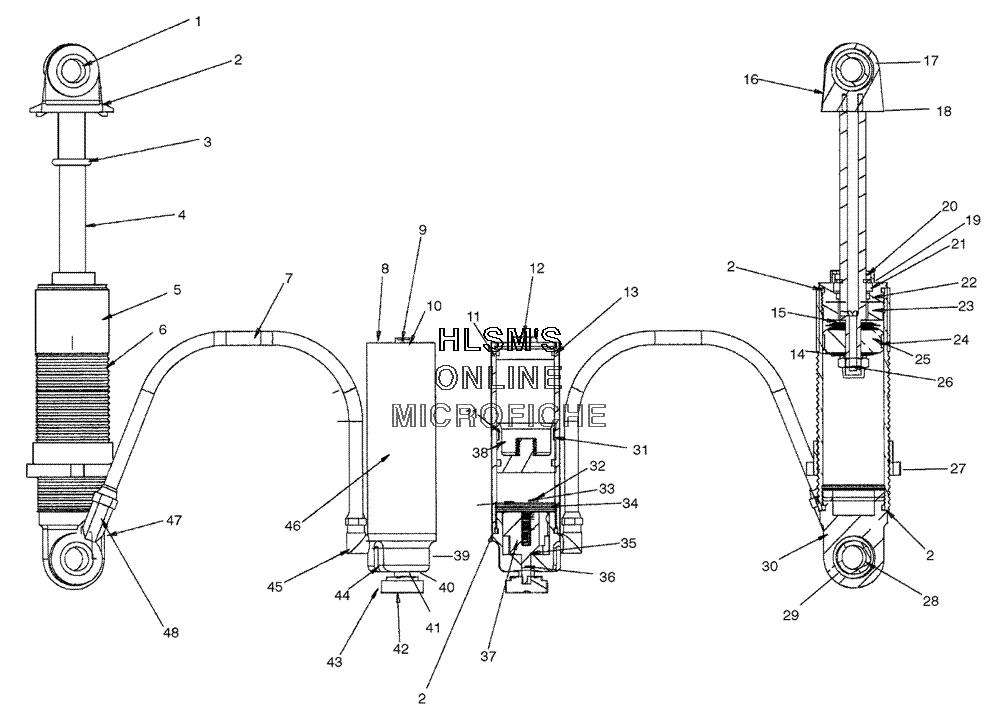

SUSPENSION - WALKER EVANS - FRONT TRACK SHOCK для Polaris 440 PRO X (S03NX4CS) - 2003 года выпуска
-
№АртикулНазвание
-
11800032 SLEEVE 1.202"SLEEVE 1.202"
-
21800027 O-RING BODYO-RING BODY
-
31800095 O-RINGO-RING
-
41800015 SHAFT 6.603" LSHAFT 6.603" L
-
51800047 WEAR SLEEVEWEAR SLEEVE
-
61800105 BODY THREADED FTBODY THREADED FT
-
71800111 HOSE, ASSYHOSE, ASSY
-
81800106 CAP ENDCAP END
-
91800107 VALVE NEEDLEVALVE NEEDLE
-
101800108 O-RINGO-RING
-
111800028 O-RING RESERVOIRO-RING RESERVOIR
-
121800109 SCREW BUTTON HEAD 8/32SCREW BUTTON HEAD 8/32
-
131800019 RESERVOIR SNAP RINGRESERVOIR SNAP RING
-
141800050 3/8" AN WASHER3/8" AN WASHER
-
151800118 WASHERWASHER
-
161800104 EYELETEYELET
-
171800036 BUSHING/URETHANEBUSHING/URETHANE
-
181800116 SPRING RETAINING RINGSPRING RETAINING RING
-
191800131 SHAFT SEAL HOUSING, ASSYSHAFT SEAL HOUSING, ASSY
-
201800034 WIPER D/TYPEWIPER D/TYPE
-
211800035 SHAFT SEAL U CUPSHAFT SEAL U CUP
-
221800037 O-RING SHAFT SEAL HEADO-RING SHAFT SEAL HEAD
-
231800038 SHAFT BUSHINGSHAFT BUSHING
-
241800026 WEAR BANDWEAR BAND
-
251800132 PISTON W/BAND CONCAVE, ASSYPISTON W/BAND CONCAVE, ASSY
-
261800031 3/8" CRIMP NUT3/8" CRIMP NUT
-
271800046 SPRING RETAINERSPRING RETAINER
-
281800039 SLEEVE 1.685" LSLEEVE 1.685" L
-
291800033 BUSHING/URETHANEBUSHING/URETHANE
-
301800099 LOOP BODYLOOP BODY
-
311800029 WEAR BANDWEAR BAND
-
321800125 BALL CHECKBALL CHECK
-
331800124 BOLT BALL CHECKBOLT BALL CHECK
-
341800091 VALVEVALVE
-
351800052 SHIM VALVESHIM VALVE
-
361800094 O-RINGO-RING
-
371800121 DRUMDRUM
-
381800016 RESERVOIR PISTONRESERVOIR PISTON
-
391800127 BALL D-TENTBALL D-TENT
-
401800128 SPRING D-TENTSPRING D-TENT
-
411800129 O-RINGO-RING
-
421800122 SCREW 10/32 ALLENSCREW 10/32 ALLEN
-
431800123 KNOBKNOB
-
441800126 HOUSING ADJUSTORHOUSING ADJUSTOR
-
451800045 1/8" NPT FEMALE 90Ш1/8" NPT FEMALE 90Ш
-
461800120 BODY RESERVOIRBODY RESERVOIR
-
471800114 EXTENTION 1/8"NPTEXTENTION 1/8"NPT
-
481800113 ELBOWELBOW
-
487042178 SHOCK FRONT TRACK WALKER/EVANSSHOCK FRONT TRACK WALKER/EVANS
