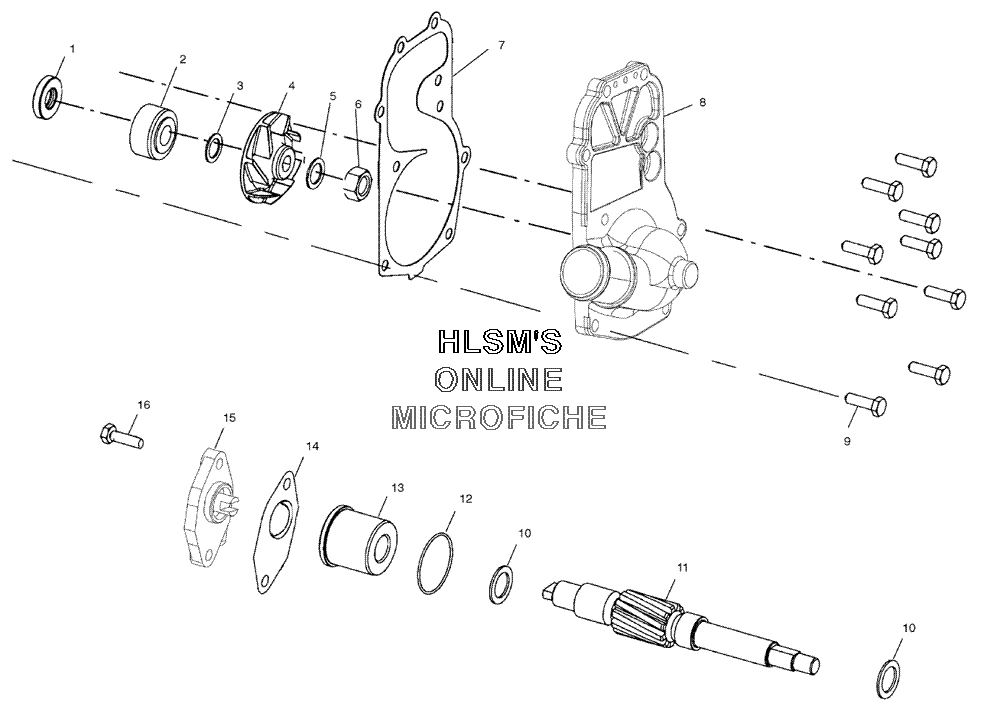

WATER PUMP/OIL PUMP для Polaris 440 PRO X (S03NX4CS) - 2003 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S ARSSEAL, TYPE S ARS
-
23610067 SEALSEAL
-
37556006 WASHER FLATWASHER FLAT
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER FLATWASHER FLAT
-
67546804 NUT, HEXAGON NYLOKNUT, HEXAGON NYLOK
-
75811601 GASKET, WATERPUMP COVERGASKET, WATERPUMP COVER
-
85630920 COVER WATERPUMP HI FLOWCOVER WATERPUMP HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER THRUSTWASHER THRUST
-
115131855 DRIVESHAFT, WATER/OIL PUMPDRIVESHAFT, WATER/OIL PUMP
-
125411196 O-RINGO-RING
-
135010391 BRNG, PUMP SHAFT FLANGEDBRNG, PUMP SHAFT FLANGED
-
145811789 GASKETGASKET
-
155245940 COVER CASE, OIL PUMPCOVER CASE, OIL PUMP
-
167517277 SCREWSCREW
