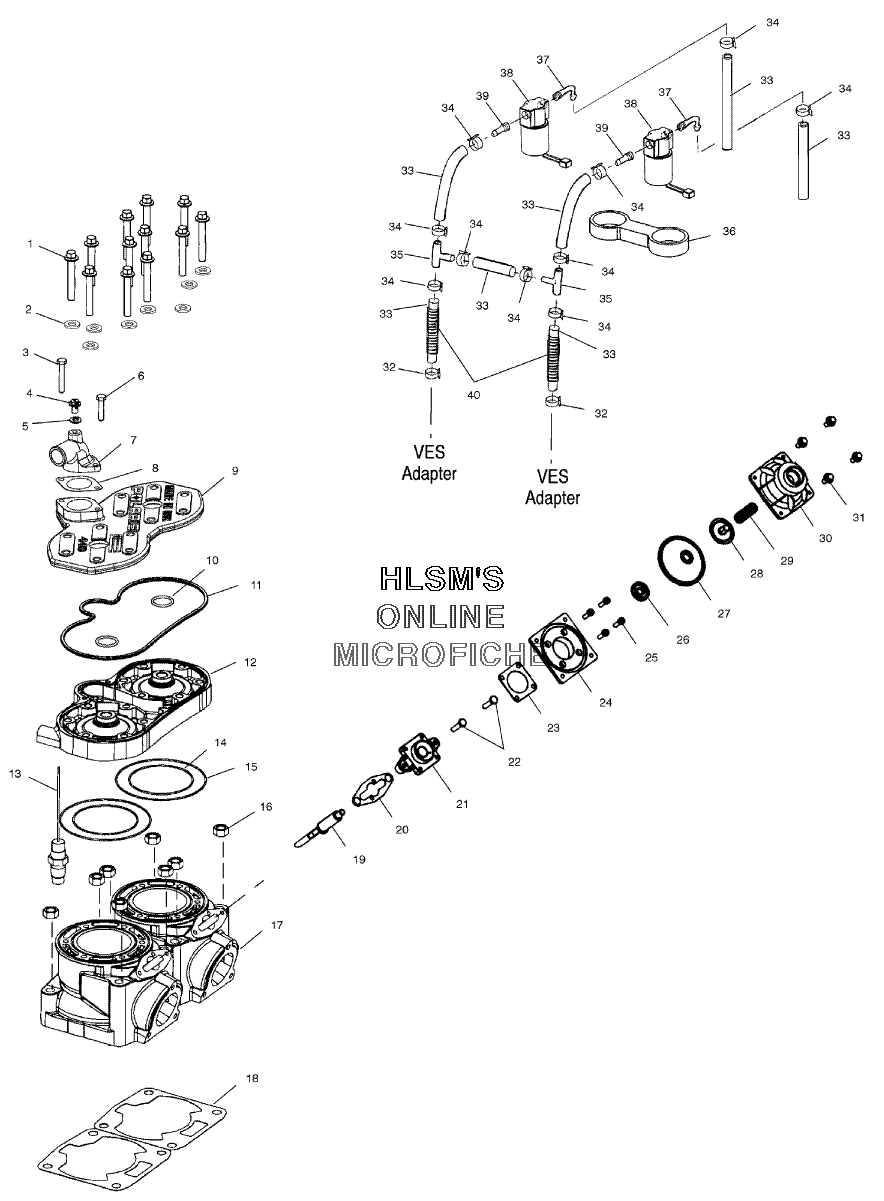

CYLINDER ASSEMBLY для Polaris 440 PRO X (S03NX4CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7517281 SCREW
    SCREW
  • 2
    7556082 WASHER
    WASHER
  • 3
    7516818 SCREW
    SCREW
  • 4
    7517679 SCREW, SL/HEXAGON/FLANGE-Z
    SCREW, SL/HEXAGON/FLANGE-Z
  • 5
    7555998 WASHER FLAT
    WASHER FLAT
  • 6
    7516822 SCREW
    SCREW
  • 7
    5630992 COVER, THERMOSTAT M6 BLEED MACH
    COVER, THERMOSTAT M6 BLEED MACH
  • 8
    5830113 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 9
    5631204-366 COVER HEAD 66MM 440 E-COAT (RED)
    COVER HEAD 66MM 440 E-COAT (RED)
  • 10
    5411411 O-RING
    O-RING
  • 11
    5411465 SEAL
    SEAL
  • 12
    3021299 HEAD CYLINDER, 66MM 44-02 (HIGH OCTANE)
    HEAD CYLINDER, 66MM 44-02 (HIGH OCTANE)
  • 12
    2202188 92 OCTANE CYLINDER HEAD KIT (INCL., 8, 10, 11, 14, 15 AND CLUTCH WEIGHTS)
    92 OCTANE CYLINDER HEAD KIT (INCL., 8, 10, 11, 14, 15 AND CLUTCH WEIGHTS)
  • 13
    4010398 SENSOR THERMISTER ESX8477A
    SENSOR THERMISTER ESX8477A
  • 14
    5411199 O-RING
    O-RING
  • 15
    5411359 O-RING
    O-RING
  • 16
    7547013 NUT
    NUT
  • 17
    3021304 CYLINDER 66MM W/EV
    CYLINDER 66MM W/EV
  • 18
    5811599 GASKET, CYLINDER.BASE (66MM AND 70.5MM)
    GASKET, CYLINDER.BASE (66MM AND 70.5MM)
  • 19
    1202159 GUILLOTINE, ASSY
    GUILLOTINE, ASSY
  • 20
    5812087 GASKET
    GASKET
  • 21
    1201919 EV 3.5 HOUSING W/BUSH H.DOWEL ASSY
    EV 3.5 HOUSING W/BUSH H.DOWEL ASSY
  • 22
    7516823 SCREW
    SCREW
  • 23
    5433375 GASKET, HOUSING
    GASKET, HOUSING
  • 24
    1202037 ADAPTER, ASSY
    ADAPTER, ASSY
  • 25
    7517314 SCREW
    SCREW
  • 26
    5132950 WASHER BELLOWS, EXHAUST VALVE DOM
    WASHER BELLOWS, EXHAUST VALVE DOM
  • 27
    5412379 BELLOWS, EXHAUST MODIFIED
    BELLOWS, EXHAUST MODIFIED
  • 28
    5631381 CAP/NUT, BELLOWS EXHAUST VALVE DOM
    CAP/NUT, BELLOWS EXHAUST VALVE DOM
  • 29
    7041786-01 SPRING COMP (RED/WHITE)
    SPRING COMP (RED/WHITE)
  • 30
    5434175 HOUSING W/BUSHING ASSY
    HOUSING W/BUSHING ASSY
  • 31
    7516820 SCREW
    SCREW
  • 32
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 33
    8450040-600 LINE FUEL (1/4 ID/600 CM.)
    LINE FUEL (1/4 ID/600 CM.)
  • 34
    7080138 CABLE TIE
    CABLE TIE
  • 35
    7052075 FITTING, TEE
    FITTING, TEE
  • 36
    5412092 RETAINER SOLENOID
    RETAINER SOLENOID
  • 37
    7052065 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 38
    4010305 CONTROL, VALUE EV SOLENOID
    CONTROL, VALUE EV SOLENOID
  • 39
    7052099 FITTING
    FITTING
  • 40
    8360052-30 TUBING CONVOLUTED (.500 ID, 30CM)
    TUBING CONVOLUTED (.500 ID, 30CM)
