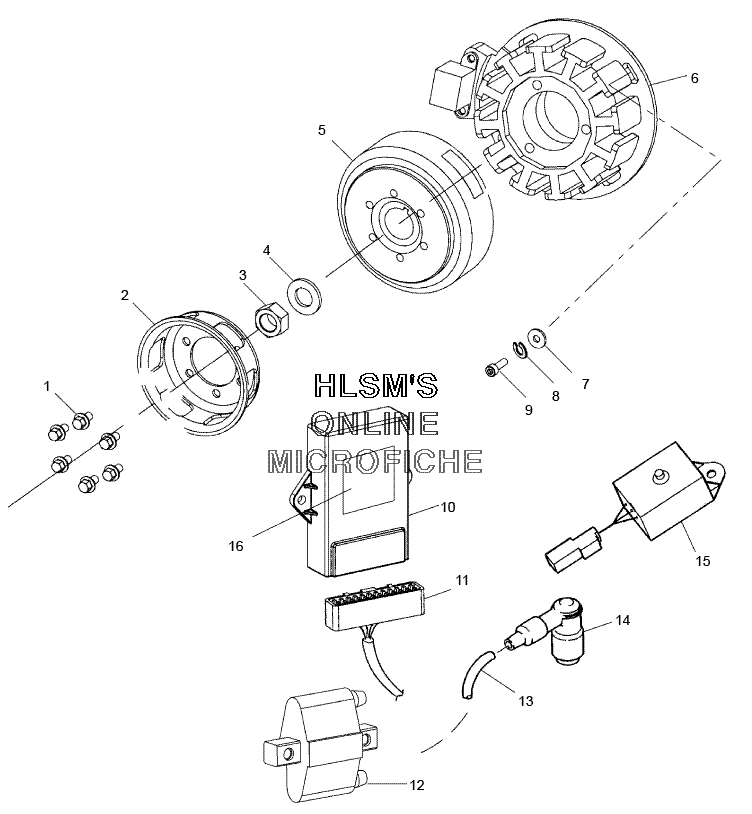

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 440 PRO X (S03NX4CS) - 2003 года выпуска
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010629 FLYWHEEL IGNITION SNO KOK W/O GLUEFLYWHEEL IGNITION SNO KOK W/O GLUE
-
64060222 STATORSTATOR
-
77555970 WASHER FLATWASHER FLAT
-
87555969 WASHER LOCKWASHER LOCK
-
97517314 SCREWSCREW
-
102202478 CDI, KIT (S44-44-03) (INCL. NYOGEL AND DECAL)CDI, KIT (S44-44-03) (INCL. NYOGEL AND DECAL)
-
114010860 HARNESS IGNITION KOKHARNESS IGNITION KOK
-
124060229 COIL, IGNITION KOKCOIL, IGNITION KOK
-
134010124-305 WIRE, IGNITION BULK (305CM.)WIRE, IGNITION BULK (305CM.)
-
144020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
154010329 SWITCH IGNITION, TIMINGSWITCH IGNITION, TIMING
-
167077187 DECAL PATENT PENDINGDECAL PATENT PENDING
