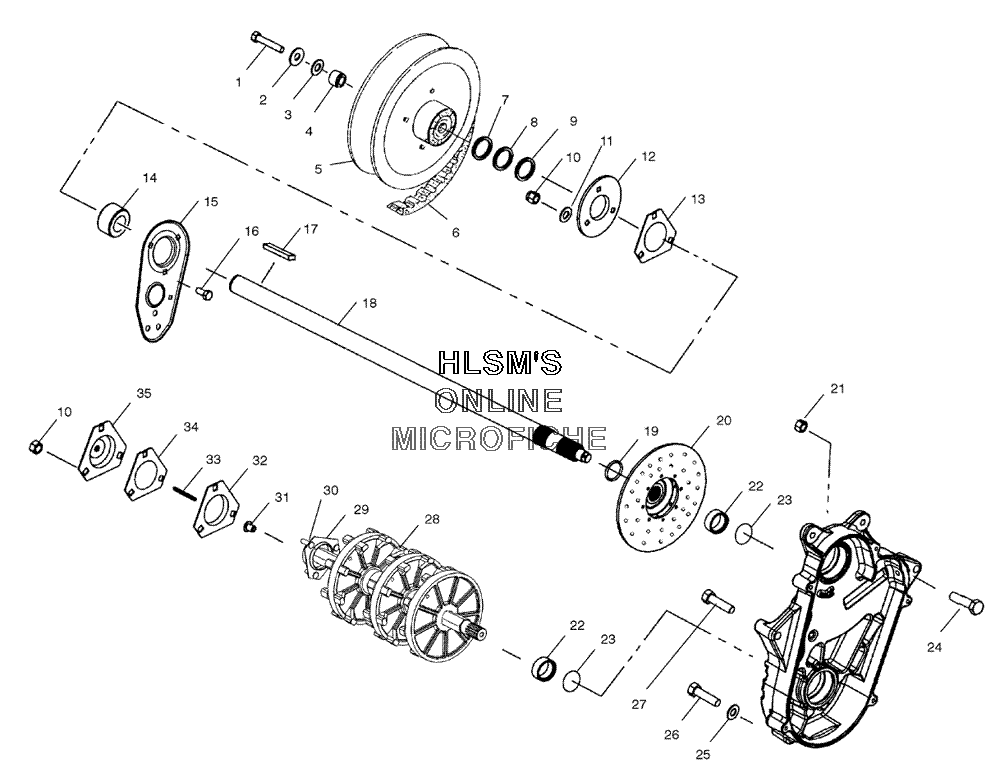

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 440 PRO X (S03NX4CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHER FLATWASHER FLAT
-
45133106 SPACER INPUT SHAFT (.38)SPACER INPUT SHAFT (.38)
-
63211080 BELT DRIVEBELT DRIVE
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107542324 NUT, NYLOKNUT, NYLOK
-
117558402 WASHER FLATWASHER FLAT
-
125241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514519 BEARING, JACKSHAFTBEARING, JACKSHAFT
-
155245889-067 FLANGETTE JACKSHAFT, REINFORCEMENT (BLACK)FLANGETTE JACKSHAFT, REINFORCEMENT (BLACK)
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721116 KEYKEY
-
181332267 JACKSHAFT, ASSY LWT (INCL. 19)JACKSHAFT, ASSY LWT (INCL. 19)
-
197710422 RING, RETAININGRING, RETAINING
-
201910197 DISC BRAKE, ASSY VENTEDDISC BRAKE, ASSY VENTED
-
217542423 NUT, FLANGENUT, FLANGE
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O-RINGO-RING
-
247515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
257558403 WASHER WROUGHTWASHER WROUGHT
-
267512492 SCREWSCREW
-
277515485 BOLTBOLT
-
281590364 DRIVE SHAFT ASSY 7.06 3DR 1-SIDE SM (INCL. 29, 30, 31)DRIVE SHAFT ASSY 7.06 3DR 1-SIDE SM (INCL. 29, 30, 31)
-
291012945 FLANGETTE W/SCREWS, ASSYFLANGETTE W/SCREWS, ASSY
-
303514525 BEARINGBEARING
-
313280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
325243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
333280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
345830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
353280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
