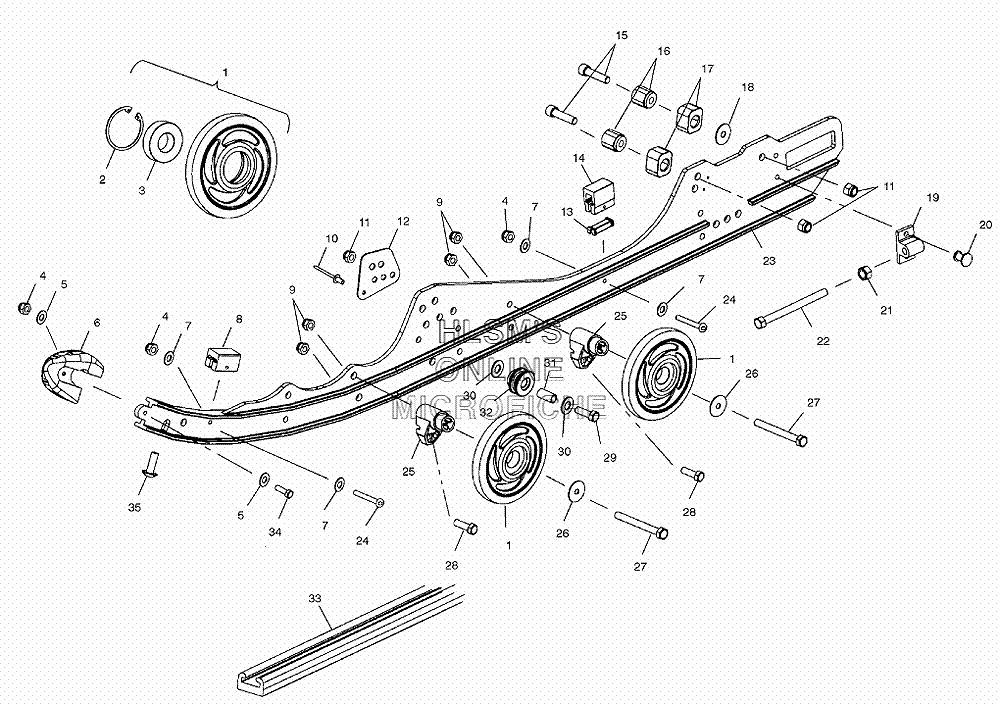

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris SUPERSPORT (S02NB5BS) - 2002 года выпуска
-
№АртикулНазвание
-
11590275-293 WHEEL ASSY. (RED) (INCL. 2, 3)WHEEL ASSY. (RED) (INCL. 2, 3)
-
27718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47541925 NUTNUT
-
57555792 WASHERWASHER
-
65434374 CAP, RAIL TIPCAP, RAIL TIP
-
77555783 WASHERWASHER
-
85521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
97542324 NUTNUT
-
107661845 RIVETRIVET
-
117542439 NUT, NYLOKNUT, NYLOK
-
125244677 BRACKET, RAIL REINFBRACKET, RAIL REINF
-
135432946 LINER, BUMPERLINER, BUMPER
-
145521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
157515537 BOLTBOLT
-
165131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
175410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
185244371 SPACERSPACER
-
195132444 BLOCK, IDLER BOLTBLOCK, IDLER BOLT
-
207621501 RIVETRIVET
-
217547156 NUT, JAMNUT, JAM
-
227517773 SCREWSCREW
-
231541480 RAIL, ASSY. 121 (LEFT) (INCL. 6, 8, 14, 17, 19)RAIL, ASSY. 121 (LEFT) (INCL. 6, 8, 14, 17, 19)
-
231541481 RAIL, ASSY. 121 (RIGHT) (INCL. 6, 8, 14, 17, 19)RAIL, ASSY. 121 (RIGHT) (INCL. 6, 8, 14, 17, 19)
-
247510504 SCREWSCREW
-
255631065 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
267556179 WASHER, SPRINGWASHER, SPRING
-
277515346 BOLTBOLT
-
287515317 BOLTBOLT
-
297515438 BOLTBOLT
-
307555893 WASHER, FLATWASHER, FLAT
-
315333948 SPACERSPACER
-
325433959 ROLLER, SPRING SQUAREROLLER, SPRING SQUARE
-
335521571 HI, FAXHI, FAX
-
347511975 SCREWSCREW
-
357515199 SCREWSCREW
