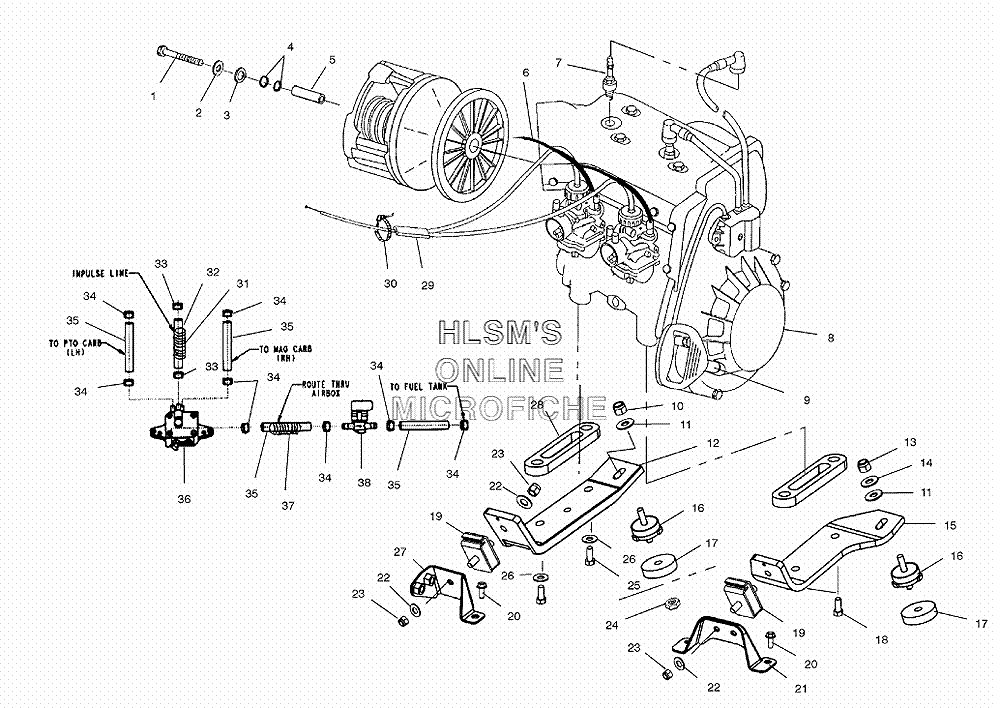

ENGINE MOUNTING W/ SHORT BLOCK для Polaris SUPERSPORT (S02NB5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7517776 SCREW
    SCREW
  • 2
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 3
    5010287 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 4
    5410507 O-RING
    O-RING
  • 5
    5020513 SPACER, CLUTCH BOLT
    SPACER, CLUTCH BOLT
  • 6
    7080290 CABLE, CHOKE
    CABLE, CHOKE
  • 7
    3070163 SPARKPLUG (BR9ES)
    SPARKPLUG (BR9ES)
  • 8
    3085618 SHORT BLOCK ASSY.
    SHORT BLOCK ASSY.
  • 9
    5431499-070 HANDLE, RECOIL (BLACK)
    HANDLE, RECOIL (BLACK)
  • 10
    7542451 NUT, NYLOCK
    NUT, NYLOCK
  • 11
    7555893 WASHER
    WASHER
  • 12
    5245466 STRAP, ENGINE MOUNT (LEFT)
    STRAP, ENGINE MOUNT (LEFT)
  • 13
    7542404 NUT
    NUT
  • 14
    7556180 WASHER
    WASHER
  • 15
    5245016 STRAP, ENGINE MOUNT (RIGHT)
    STRAP, ENGINE MOUNT (RIGHT)
  • 16
    3021220 MOUNT, ENGINE
    MOUNT, ENGINE
  • 17
    5245117 SPACER, ENGINE MOUNT
    SPACER, ENGINE MOUNT
  • 18
    7517399 SCREW
    SCREW
  • 19
    3021206 MOUNT, ENGINE
    MOUNT, ENGINE
  • 20
    7517854 SCREW
    SCREW
  • 21
    5245044 BRACKET, ENGINE MOUNT (RIGHT)
    BRACKET, ENGINE MOUNT (RIGHT)
  • 22
    7555806 WASHER
    WASHER
  • 23
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 24
    7547180 NUT, FLANGED
    NUT, FLANGED
  • 25
    7517442 BOLT
    BOLT
  • 26
    7553101 WASHER, LOCK
    WASHER, LOCK
  • 27
    1013397 WELD, ENG MOUNT BRACKET (LEFT)
    WELD, ENG MOUNT BRACKET (LEFT)
  • 28
    5245020 SPACER, ENGINE
    SPACER, ENGINE
  • 29
    7080888 CABLE, THROTTLE
    CABLE, THROTTLE
  • 30
    7080138 CABLE TIE
    CABLE TIE
  • 31
    8360052-305 TUBING, CONVOLUTED
    TUBING, CONVOLUTED
  • 32
    8450040-600 FUEL LINE (1/4 ID 600 CM.)
    FUEL LINE (1/4 ID 600 CM.)
  • 33
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 34
    7080307 CLAMP
    CLAMP
  • 35
    8350018-160 TUBING, ETHER ERETHNE (160CM)
    TUBING, ETHER ERETHNE (160CM)
  • 36
    3085490 FUEL PUMP ASSY.
    FUEL PUMP ASSY.
  • 37
    4010051-15 CONDUIT, CONVOL (15 CM)
    CONDUIT, CONVOL (15 CM)
  • 38
    7052248 VALVE, FUEL PLASTIC INLINE (1/4'')
    VALVE, FUEL PLASTIC INLINE (1/4'')
