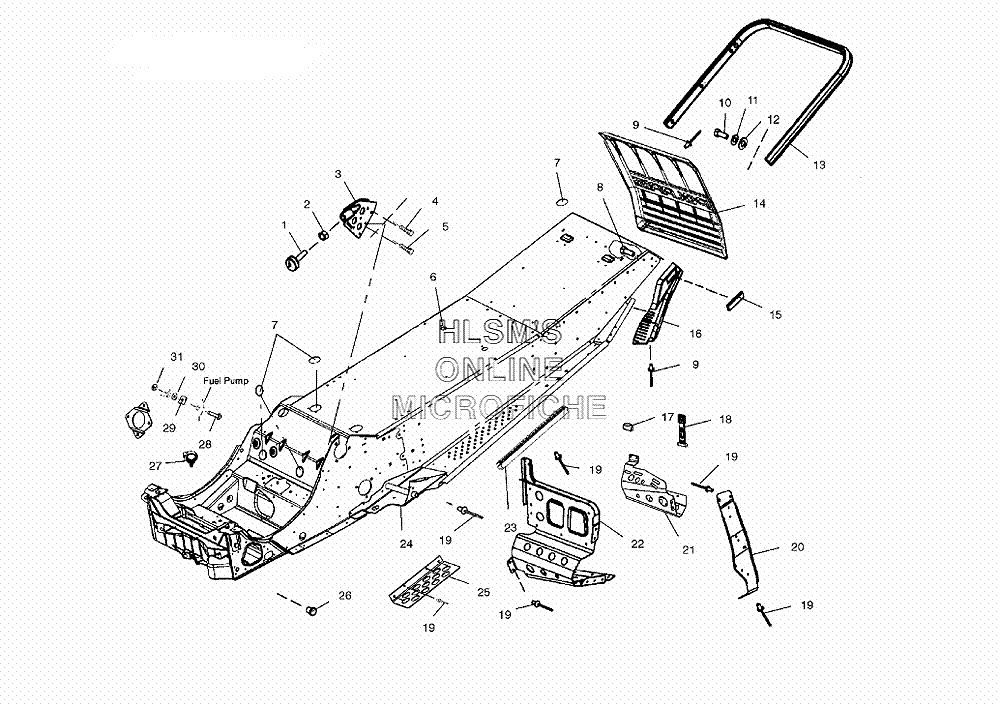

FRAME - CHASSIS для Polaris SUPERSPORT (S02NB5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    1013686-309 CHASSIS ASSY.
    CHASSIS ASSY.
  • 1
    3021104 STOP, TORQUE COURSE
    STOP, TORQUE COURSE
  • 2
    7542404 NUT
    NUT
  • 3
    1013399 WELD, TORQUE STOP
    WELD, TORQUE STOP
  • 4
    7517632 SCREW
    SCREW
  • 5
    7517854 SCREW
    SCREW
  • 6
    7080592 CAPLUG (3/4'')
    CAPLUG (3/4'')
  • 7
    7080934 CAPLUG (1 5/8'')
    CAPLUG (1 5/8'')
  • 8
    7517441 SCREW
    SCREW
  • 9
    7621472 RIVET
    RIVET
  • 10
    7512240 BOLT
    BOLT
  • 11
    7552801 LOCK WASHER
    LOCK WASHER
  • 12
    7558301 WASHER
    WASHER
  • 13
    2632165-309 BUMPER, REAR
    BUMPER, REAR
  • 14
    5433521-1106 FLAP, SNOW (BLACK W/CHROME)
    FLAP, SNOW (BLACK W/CHROME)
  • 15
    2670133 REFLECTOR ASSY. (RED)
    REFLECTOR ASSY. (RED)
  • 16
    2632443-070 SNOWSKIRT/REFL ASSY. (LEFT/BLACK)
    SNOWSKIRT/REFL ASSY. (LEFT/BLACK)
  • 16
    2632444-070 SNOWSKIRT/REFL ASSY. (RIGHT/BLACK)
    SNOWSKIRT/REFL ASSY. (RIGHT/BLACK)
  • 17
    5521238 EXTRUSION, CLUTCHGUARD
    EXTRUSION, CLUTCHGUARD
  • 18
    5433150 STRAP, RUBBER
    STRAP, RUBBER
  • 19
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 20
    5246310 SUPPORT, FOOTREST (LEFT)
    SUPPORT, FOOTREST (LEFT)
  • 20
    5242742 SUPPORT, FOOTREST (RIGHT)
    SUPPORT, FOOTREST (RIGHT)
  • 21
    5245457 MOUNT, CONSOLE TOE CLIP (LEFT)
    MOUNT, CONSOLE TOE CLIP (LEFT)
  • 21
    5245458 MOUNT, CONSOLE TOE CLIP (RIGHT)
    MOUNT, CONSOLE TOE CLIP (RIGHT)
  • 22
    5245288 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 22
    5242740 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 23
    5245118 BRACE, TUNNEL ROLL
    BRACE, TUNNEL ROLL
  • 24
    2202059 MOUNT, TRAILING ARM KIT (LEFT)
    MOUNT, TRAILING ARM KIT (LEFT)
  • 24
    2202060 MOUNT, TRAILING ARM KIT (RIGHT)
    MOUNT, TRAILING ARM KIT (RIGHT)
  • 25
    5245066 GUARD, BELT
    GUARD, BELT
  • 26
    7080416 PLUG, HOLE
    PLUG, HOLE
  • 27
    4020139 CLIP, PLASTIC
    CLIP, PLASTIC
  • 28
    7512275 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 29
    7670021 SPEED NUT
    SPEED NUT
  • 30
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 31
    7542122 NUT, LOCK
    NUT, LOCK
