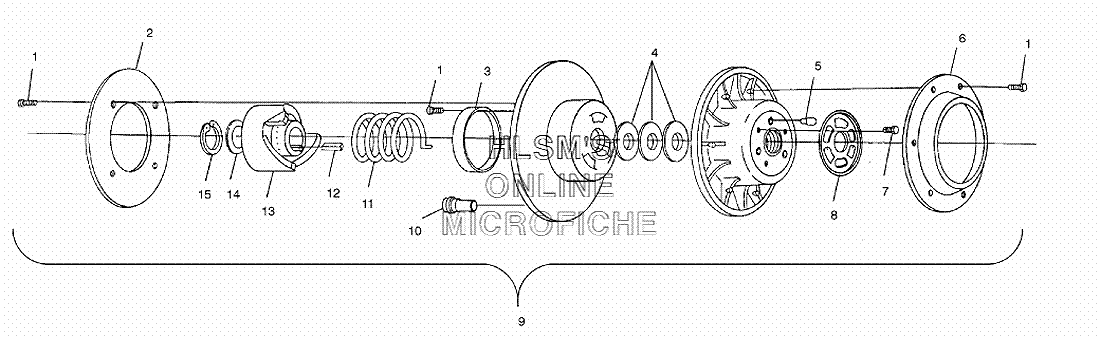

CLUTCH - DRIVEN для Polaris SUPERSPORT (S02NB5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512048 SCREW
    SCREW
  • 2
    5243158 PLATE, DRIVEN VENTED
    PLATE, DRIVEN VENTED
  • 3
    3569803 BUSHING, (D.U.)
    BUSHING, (D.U.)
  • 4
    7556804 WASHER (.03)
    WASHER (.03)
  • 4
    7555898 WASHER (.02)
    WASHER (.02)
  • 4
    7556076 WASHER (.025)
    WASHER (.025)
  • 4
    7555865 WASHER, DRIVE CLUTCH (.075)
    WASHER, DRIVE CLUTCH (.075)
  • 5
    5020653 PIN, CLUTCH
    PIN, CLUTCH
  • 6
    5243157 CAP, DRIVEN VENTED
    CAP, DRIVEN VENTED
  • 7
    7515133 SCREW
    SCREW
  • 8
    5222878 CAM, DRIVEN ADJUSTABLE
    CAM, DRIVEN ADJUSTABLE
  • 9
    1321927 DRIVEN CLUTCH ASSY.
    DRIVEN CLUTCH ASSY.
  • 10
    5430466 BUTTON, RAMP
    BUTTON, RAMP
  • 11
    7041646 SPRING, CLUTCH (SVR/BLUE)
    SPRING, CLUTCH (SVR/BLUE)
  • 12
    7721103 KEY SQUARE
    KEY SQUARE
  • 13
    5130895 RAMP, DRIVEN (36 DEGREE)
    RAMP, DRIVEN (36 DEGREE)
  • 14
    7556804 WASHER
    WASHER
  • 15
    7714804 RING, RETAINING
    RING, RETAINING
