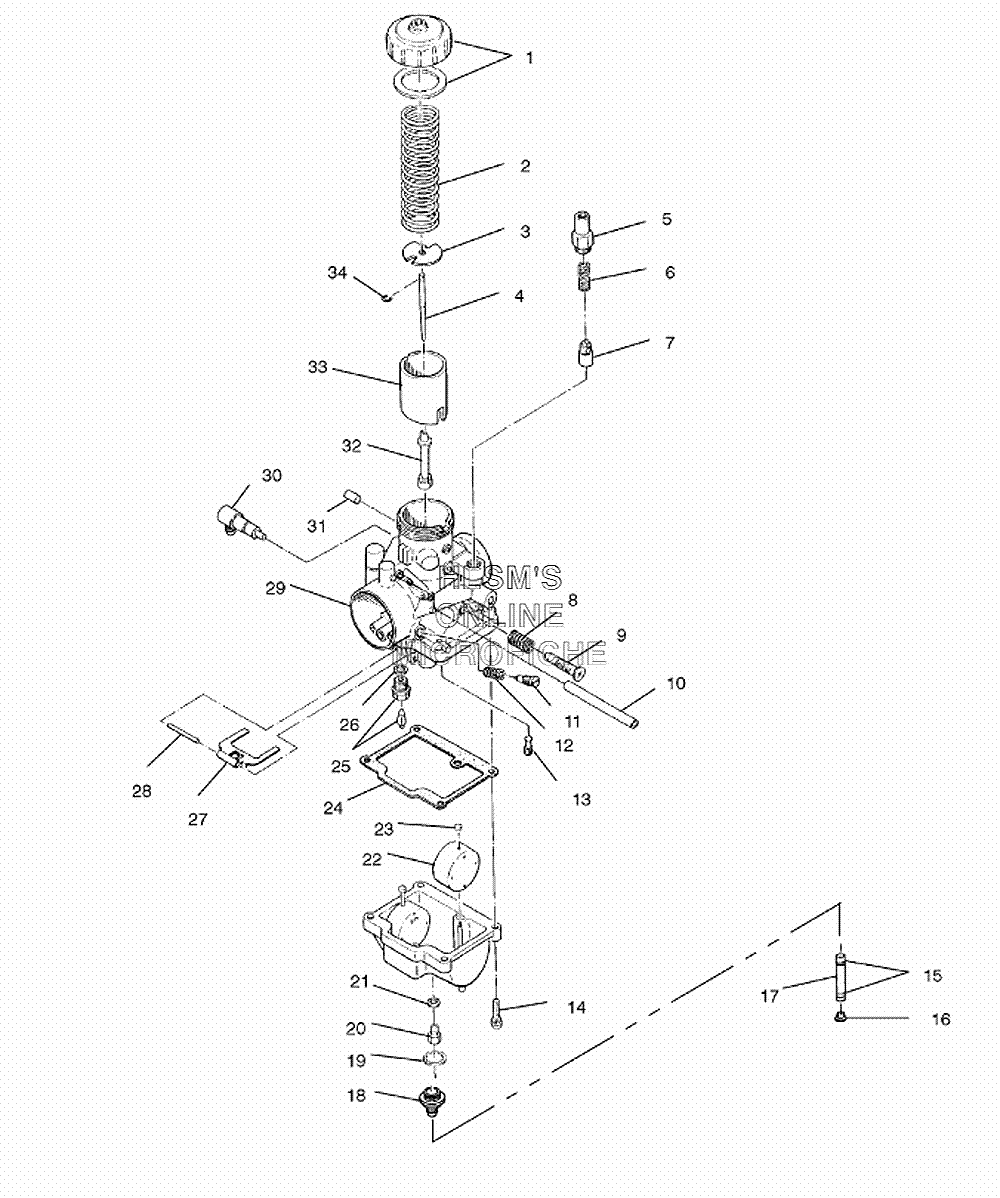

CARBURETOR ASSEMBLY для Polaris SUPERSPORT (S02NB5BS) - 2002 года выпуска
-
№АртикулНазвание
-
13130184 TOP ASSY.TOP ASSY.
-
23130439 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATEPLATE
-
43131244 NEEDLE, JETNEEDLE, JET
-
53130199 HOLDER, GUIDEHOLDER, GUIDE
-
63130006 SPRING, PLUNGERSPRING, PLUNGER
-
73130328 PLUNGER ASSY., STARTERPLUNGER ASSY., STARTER
-
83130010 SPRING, THROTTLE ADJ.SPRING, THROTTLE ADJ.
-
93130009 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
103131288 HOSEHOSE
-
113130011 SCREW, AIRSCREW, AIR
-
123130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
133130066 JET, PILOT (#35)JET, PILOT (#35)
-
143130025 SCREW AND WASHERSCREW AND WASHER
-
157080003 CLAMP, HOSECLAMP, HOSE
-
165431893 PLUG, TRAPPLUG, TRAP
-
178350017-160 FUEL, LINE ETHER RED 5/16'')FUEL, LINE ETHER RED 5/16'')
-
185020476 FITTING, SEDIMENTFITTING, SEDIMENT
-
193130239 O-RINGO-RING
-
203130132 JET, MAIN (#290)JET, MAIN (#290)
-
213130014 WASHERWASHER
-
223130430 FLOAT ASSY.FLOAT ASSY.
-
233130237 CAPCAP
-
243130020 PACKING, FLOAT CHAMBERPACKING, FLOAT CHAMBER
-
253131146 VALVE, NEEDLE (1.5)VALVE, NEEDLE (1.5)
-
263130017 PACKINGPACKING
-
273130018 ARM, FLOATARM, FLOAT
-
283130361 PIN, FLOATPIN, FLOAT
-
293131348 CARBURETOR ASSY. (INCL. 1, 14, 18, 34)CARBURETOR ASSY. (INCL. 1, 14, 18, 34)
-
303086785 VALVE CHECK ASSY.VALVE CHECK ASSY.
-
313130479 CAPCAP
-
323130894 JET, NEEDLE (#480)JET, NEEDLE (#480)
-
333130372 VALVE, THROTTLE (3.0)VALVE, THROTTLE (3.0)
-
343130508 E-RINGE-RING
