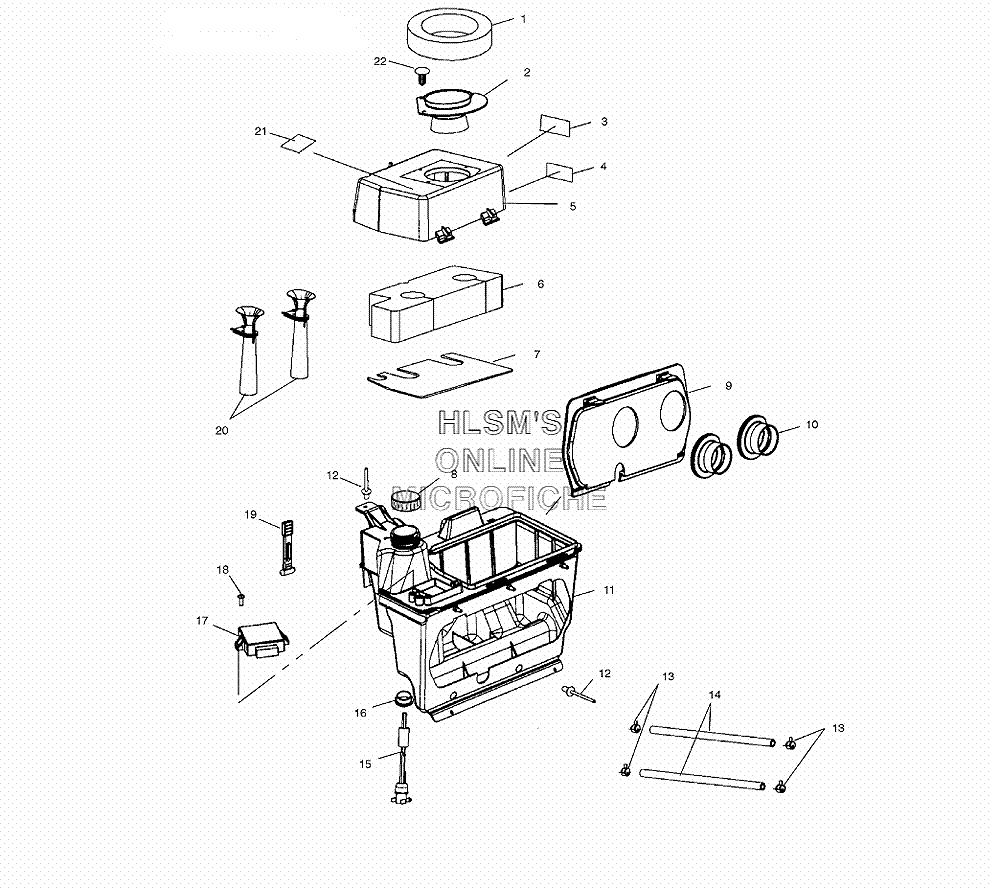

AIR BOX для Polaris SUPERSPORT (S02NB5BS) - 2002 года выпуска
-
№АртикулНазвание
-
15811882 FOAM, AIR BOXFOAM, AIR BOX
-
25433664 DUCT, AIR INLETDUCT, AIR INLET
-
37073820 DECAL, ADJ. DRIVEN CLUTCHDECAL, ADJ. DRIVEN CLUTCH
-
47073426 DECAL, GREASINGDECAL, GREASING
-
51253356 COVER, ASSY., AIR SILENCER (INCL. 2, 4, 21, 22)COVER, ASSY., AIR SILENCER (INCL. 2, 4, 21, 22)
-
65811979 FOAM, AIRBOX PLATEFOAM, AIRBOX PLATE
-
75433665 PLATE, INTAKEPLATE, INTAKE
-
81240094 CAP, OIL VENTED (CUSTOM COLOR)CAP, OIL VENTED (CUSTOM COLOR)
-
95433904 PLATE, CARB. ADAPTERPLATE, CARB. ADAPTER
-
105412189 BOOT, CARBURETORBOOT, CARBURETOR
-
111253336 AIR SILENCER ASSY. (INCL. 15, 16)AIR SILENCER ASSY. (INCL. 15, 16)
-
127621472 RIVETRIVET
-
137080307 CLAMPCLAMP
-
148450003-1525 FUEL LINE (1/4 ID 1525 CM.)FUEL LINE (1/4 ID 1525 CM.)
-
154010224 FITTING, OIL SENDERFITTING, OIL SENDER
-
167052305 GROMMET, OIL SENDERGROMMET, OIL SENDER
-
173087106 CDI SYSTEMCDI SYSTEM
-
187512095 SCREWSCREW
-
195433150 STRAP, RUBBERSTRAP, RUBBER
-
205433662 TUBE, INTAKE (OUTER)TUBE, INTAKE (OUTER)
-
217075351 DECAL, CAUTIONDECAL, CAUTION
-
227670090 CLIP, PLASTIC DART (NYLON)CLIP, PLASTIC DART (NYLON)
