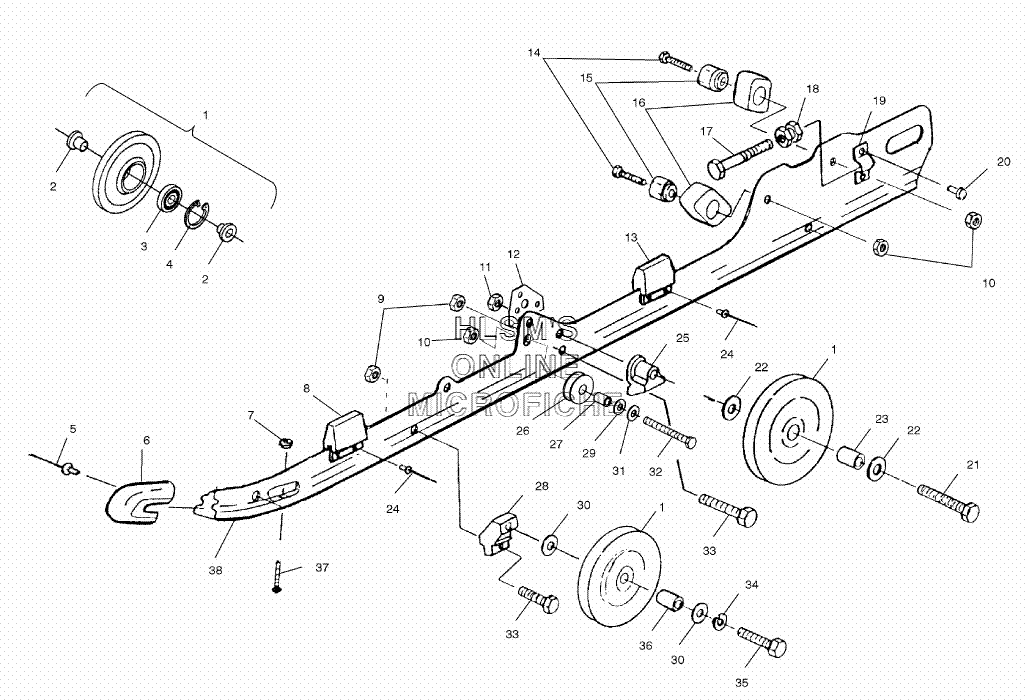

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 800 XCR (S02SB8AS) - 2002 года выпуска`
-
№АртикулНазвание
-
11594082-293 WHEEL, BOGIE (RED) (INCL. 2, 4)WHEEL, BOGIE (RED) (INCL. 2, 4)
-
25431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
57621435 RIVETRIVET
-
65433005 COVER, RAIL TIPCOVER, RAIL TIP
-
77542122 NUT, LOCKNUT, LOCK
-
85810554 BUMPER, RAILBUMPER, RAIL
-
85222629 REINF., BUMPERREINF., BUMPER
-
97542439 NUT, NYLOKNUT, NYLOK
-
107542411 NUT LOCKNUT LOCK
-
117542525 NUT, NYLOCKNUT, NYLOCK
-
125211790 BRACKET, RAIL REINFBRACKET, RAIL REINF
-
135811097 BUMPER, SUSPENSIONBUMPER, SUSPENSION
-
135222629 REINF., BUMPERREINF., BUMPER
-
147515545 BOLTBOLT
-
155131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
165410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
177515455 BOLT, ADJUSTERBOLT, ADJUSTER
-
185020943 NUT, TENSIONER ADJ.NUT, TENSIONER ADJ.
-
195130530 BLOCK, IDLER BOLT ADJ.BLOCK, IDLER BOLT ADJ.
-
207621501 RIVETRIVET
-
217512538 BOLTBOLT
-
227555852 WASHER, FLATWASHER, FLAT
-
235333116 SPACER, WHEELSPACER, WHEEL
-
247621476 RIVETRIVET
-
255630399 SPACERSPACER
-
265432982 ROLLER, SPRINGROLLER, SPRING
-
275332787 SPACERSPACER
-
285130570 BRACKET, BOGIE WHEELBRACKET, BOGIE WHEEL
-
297555806 WASHERWASHER
-
307555804 WASHERWASHER
-
317555976 WASHERWASHER
-
327515433 BOLTBOLT
-
337512404 BOLTBOLT
-
347553201 LOCK, WASHERLOCK, WASHER
-
357512659 BOLTBOLT
-
365332786 SPACERSPACER
-
377515175 BOLTBOLT
-
381541336 RAIL ASSY. 121 (LEFT) (INCL. 6, 8, 13, 16, 19)RAIL ASSY. 121 (LEFT) (INCL. 6, 8, 13, 16, 19)
-
381541337 RAIL ASSY. 121 (RIGHT) (INCL. 6, 8, 13, 16, 19)RAIL ASSY. 121 (RIGHT) (INCL. 6, 8, 13, 16, 19)
