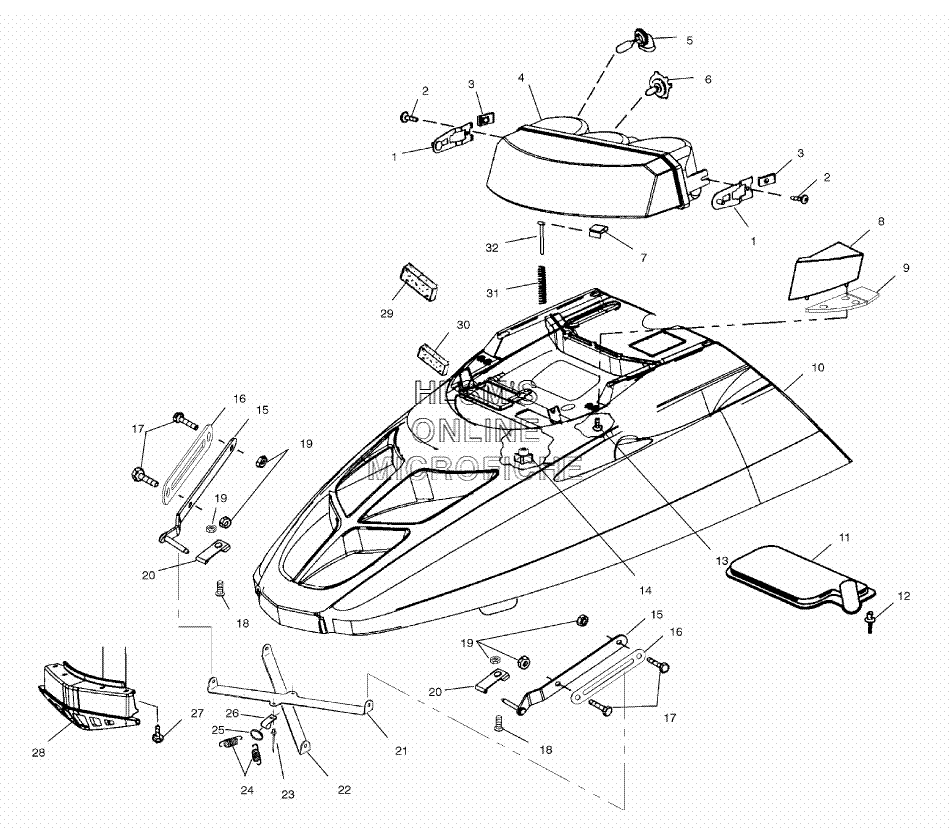

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 800 XCR (S02SB8AS) - 2002 года выпуска
-
№АртикулНазвание
-
11011944-067 MOUNT, HEADLIGHTMOUNT, HEADLIGHT
-
27515107 BOLTBOLT
-
37670057 NUT, SPEEDNUT, SPEED
-
42433016 HEADLAMP, THREE BULB ASSY. (INCL. BULBS)HEADLAMP, THREE BULB ASSY. (INCL. BULBS)
-
54010253 BULB, HEADLIGHTBULB, HEADLIGHT
-
62870448 BULB, QUARTZ HEADLIGHTBULB, QUARTZ HEADLIGHT
-
77670040 CLIP, U TYPECLIP, U TYPE
-
85431855 LENS, CLEAR REFLECTOR (LEFT)LENS, CLEAR REFLECTOR (LEFT)
-
85431856 LENS, CLEAR REFLECTOR (RIGHT)LENS, CLEAR REFLECTOR (RIGHT)
-
95811907 SEAL, REFLECTORSEAL, REFLECTOR
-
102632294-177 HOOD, W/O SCREEN (BLACK) (INCL. FOAM/FOIL)HOOD, W/O SCREEN (BLACK) (INCL. FOAM/FOIL)
-
115433723 COVER, ACCESSCOVER, ACCESS
-
127621509 RIVET, PLASTI LOC.RIVET, PLASTI LOC.
-
137512048 SCREWSCREW
-
147080887 KNOB, HEADLIGHT ADJUST LOCKING BKNOB, HEADLIGHT ADJUST LOCKING B
-
151012750 HINGE (LEFT/UPPER)HINGE (LEFT/UPPER)
-
151012751 HINGE (RIGHT/UPPER)HINGE (RIGHT/UPPER)
-
165242948 PLATE, BOLTPLATE, BOLT
-
177512247 BOLTBOLT
-
187512193 BOLTBOLT
-
197542122 NUT, LOCKNUT, LOCK
-
205244395 PLATE, HINGE (LOWER)PLATE, HINGE (LOWER)
-
215242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
225242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
237661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
247041732 SPRING, EXT.SPRING, EXT.
-
257041760 SPRING, ATTACHMENT RINGSPRING, ATTACHMENT RING
-
267080372 CLAMP, RETAINERCLAMP, RETAINER
-
277517441 SCREWSCREW
-
285432931 SCREEN, FRONTSCREEN, FRONT
-
295811886 FOAM, HEADLIGHT SEALFOAM, HEADLIGHT SEAL
-
305811822 FOAM, HEADLIGHT/POD SEALFOAM, HEADLIGHT/POD SEAL
-
317041308 SPRING, HEADLIGHT ADJ.SPRING, HEADLIGHT ADJ.
-
327517746 BOLT, TEE ADJUSTER (2.25)BOLT, TEE ADJUSTER (2.25)
