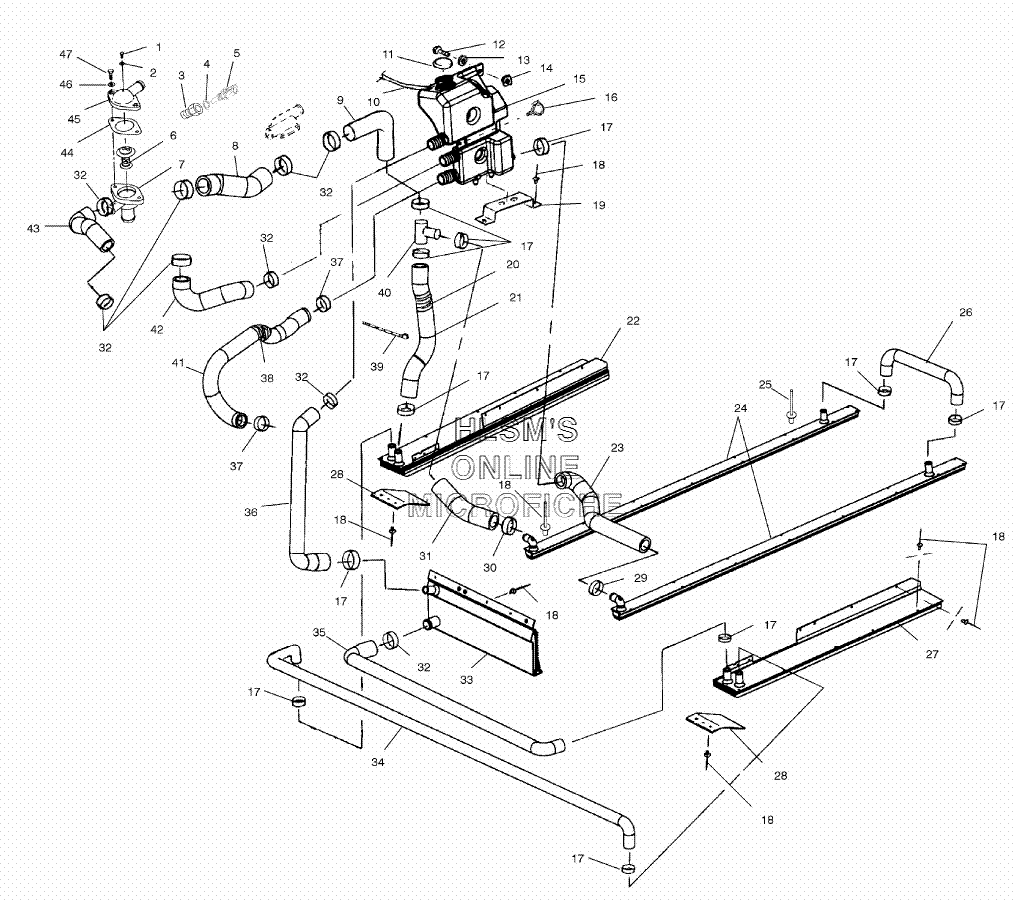

COOLING SYSTEM для Polaris 800 XCR (S02SB8AS) - 2002 года выпуска`
-
№АртикулНазвание
-
17517565 SCREWSCREW
-
27555998 WASHER, FLATWASHER, FLAT
-
33085737 PLUG, THERMOPLUG, THERMO
-
43086139 GASKET, TEMP SENSORGASKET, TEMP SENSOR
-
53086138 SENSOR, TEMPSENSOR, TEMP
-
67051017 AUTOSTAT (120DEG.)AUTOSTAT (120DEG.)
-
75132025 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
85411815 HOSE, STAT OUT/BRAKE INHOSE, STAT OUT/BRAKE IN
-
95410845 HOSE, COOLER (RIGHT)HOSE, COOLER (RIGHT)
-
108450003-1525 FUEL LINE (1/4 ID 1525 CM.)FUEL LINE (1/4 ID 1525 CM.)
-
112511270 CAP, PRESSURE (13 LB)CAP, PRESSURE (13 LB)
-
127512276 BOLTBOLT
-
137558302 WASHER, WROUGHTWASHER, WROUGHT
-
147670096 NUTNUT
-
155433269 TANK, COOLANTTANK, COOLANT
-
164020139 CLIP, PLASTICCLIP, PLASTIC
-
177080841 SPRINGBAND, CLAMP (GREEN)SPRINGBAND, CLAMP (GREEN)
-
187661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
195241331 BRACKET, SURGE TANKBRACKET, SURGE TANK
-
207041079 SPRING, HOSE RETAINERSPRING, HOSE RETAINER
-
215411703 HOSE, (RIGHT FOOTREST/COOLANT TEE)HOSE, (RIGHT FOOTREST/COOLANT TEE)
-
221240051 COOLER, SIDE (RIGHT)COOLER, SIDE (RIGHT)
-
235411673 HOSE, STRIP COOLER/TANKHOSE, STRIP COOLER/TANK
-
241240052 WEAR STRIP COOLER (1.00'')WEAR STRIP COOLER (1.00'')
-
257621432 RIVETRIVET
-
265411383 HOSE, WEARSTRIP (RIGHT)HOSE, WEARSTRIP (RIGHT)
-
271240059 COOLER, SIDE (LEFT)COOLER, SIDE (LEFT)
-
285222863 GUARD, COOLER EXT.GUARD, COOLER EXT.
-
285243333 GUARD, SIDE COOLER (RIGHT)GUARD, SIDE COOLER (RIGHT)
-
297080696 CLAMP, HOSE (1.25 WORM DRIVE)CLAMP, HOSE (1.25 WORM DRIVE)
-
307080842 SPRINGBAND, CLAMP (BLACK)SPRINGBAND, CLAMP (BLACK)
-
315411704 HOSE, COOLANT (TEE/RIGHT WEAR STRIP)HOSE, COOLANT (TEE/RIGHT WEAR STRIP)
-
327080844 SPRINGBAND, CLAMP (BLACK)SPRINGBAND, CLAMP (BLACK)
-
332511304 EXCHANGER, CLOSE (OFF)EXCHANGER, CLOSE (OFF)
-
345411706 HOSE, CROSSOVERHOSE, CROSSOVER
-
355411705 HOSE, FRONT COOLER/LEFT FOOTRESTHOSE, FRONT COOLER/LEFT FOOTREST
-
365411717 HOSE, CENTER COOLER/TOP SURGEHOSE, CENTER COOLER/TOP SURGE
-
377080845 SPRINGBAND, CLAMP (BLACK)SPRINGBAND, CLAMP (BLACK)
-
385521242 TUBING, CONVOL (1''X2.5'')TUBING, CONVOL (1''X2.5'')
-
397080492 STRAP, WEATHER RESIST. (BLACK)STRAP, WEATHER RESIST. (BLACK)
-
407052093 CONNECTOR, TEE (3/4'')CONNECTOR, TEE (3/4'')
-
415411688 HOSE, COOLANTHOSE, COOLANT
-
425411817 HOSE, STAT OUT/TANK INHOSE, STAT OUT/TANK IN
-
435411816 HOSE, ENGINE OUT/STAT INHOSE, ENGINE OUT/STAT IN
-
445830020 GASKET, THERMOSTATGASKET, THERMOSTAT
-
455130942 CAP, THERMOSTAT HOUSINGCAP, THERMOSTAT HOUSING
-
467552901 LOCK, WASHERLOCK, WASHER
-
477512383 BOLTBOLT
