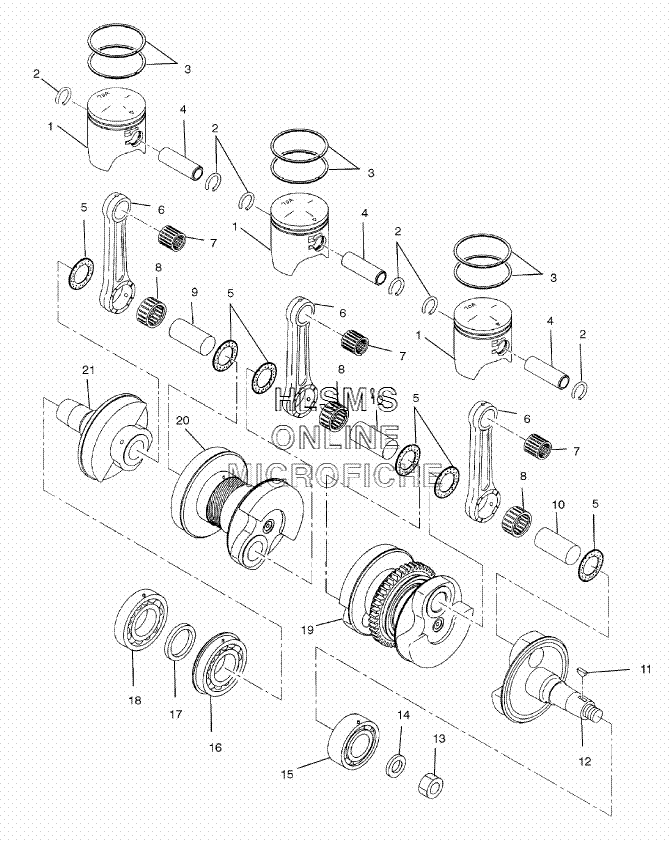

PISTON AND CRANKSHAFT для Polaris 800 XCR (S02SB8AS) - 2002 года выпуска
-
№АртикулНазвание
-
13086142 PISTONPISTON
-
23084167 CLIPCLIP
-
33085803 RING, PISTONRING, PISTON
-
43085596 PIN, PISTONPIN, PISTON
-
53083804 SPACERSPACER
-
63085790 ROD, CONNECTINGROD, CONNECTING
-
73085595 BEARING (SMALL END)BEARING (SMALL END)
-
83085752 BEARING (LARGE END)BEARING (LARGE END)
-
93085259 PIN, CRANK (#2)PIN, CRANK (#2)
-
103085258 PIN, CRANK (#1)PIN, CRANK (#1)
-
113081543 KEY WOODRUFFKEY WOODRUFF
-
123086127 CRANKSHAFT ASSY. (INCL. 5, 6, 8, 10, 12, 15, 21)CRANKSHAFT ASSY. (INCL. 5, 6, 8, 10, 12, 15, 21)
-
123085251 CRANKSHAFT (#1)CRANKSHAFT (#1)
-
133083093 NUTNUT
-
143084457 WASHERWASHER
-
153085260 BEARING, BALLBEARING, BALL
-
163085753 BEARING, BALLBEARING, BALL
-
173085261 SPACERSPACER
-
183085754 BEARING, BALLBEARING, BALL
-
193085789 CRANKSHAFT (CENTER) (INCL. 5, 6, 8, 10, 19, 20)CRANKSHAFT (CENTER) (INCL. 5, 6, 8, 10, 19, 20)
-
193086128 CRANKSHAFT (MAG) (INCL. 10)CRANKSHAFT (MAG) (INCL. 10)
-
203085254 CRANKSHAFT (PTO) (INCL. 9)CRANKSHAFT (PTO) (INCL. 9)
-
213085751 CRANKSHAFT 3CRANKSHAFT 3
