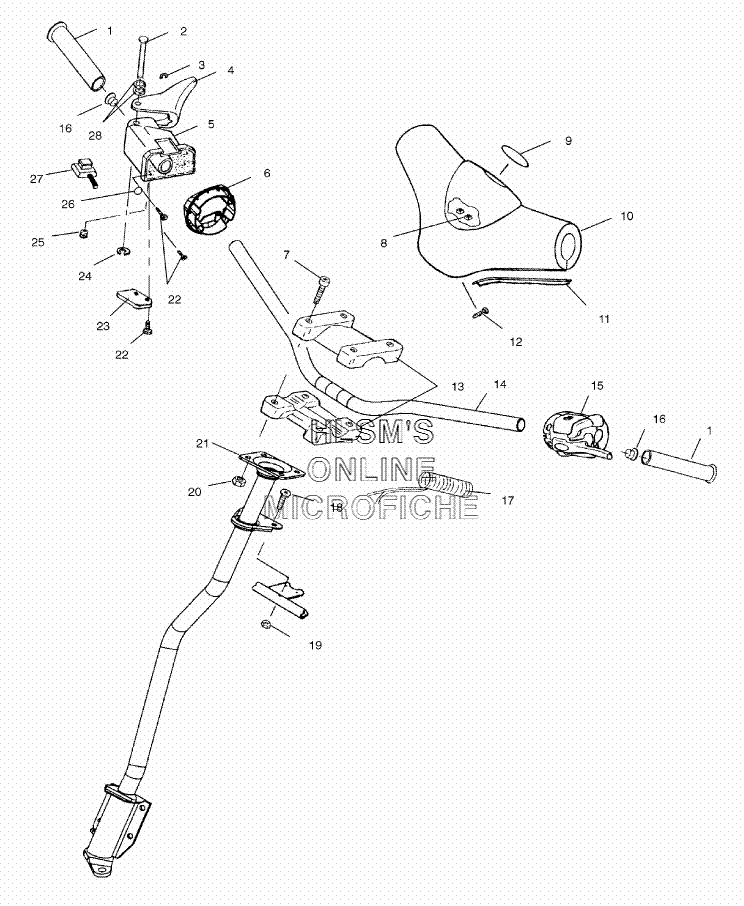

HANDLEBAR ASSEMBLY для Polaris 800 XCR (S02SB8AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5432634 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 2
    7661624 PIN, HINGE
    PIN, HINGE
  • 3
    7710503 RETAINING, RING
    RETAINING, RING
  • 4
    5432970 THROTLE, LEVER (35.5MM)
    THROTLE, LEVER (35.5MM)
  • 4
    2010171 LEVER ASSY., HEATER (HI/LO)
    LEVER ASSY., HEATER (HI/LO)
  • 5
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 6
    5433345 ADAPTER, BLOCK THROTTLE
    ADAPTER, BLOCK THROTTLE
  • 7
    7517238 SCREW
    SCREW
  • 8
    7670106 NUT, PUSH ON
    NUT, PUSH ON
  • 9
    5434179 EMBLEM, ''STAR''
    EMBLEM, ''STAR''
  • 10
    5433159-070 COVER, HANDLEBAR (BLACK)
    COVER, HANDLEBAR (BLACK)
  • 11
    5433160-070 SLIDE, HANDLEBAR COVER (BLACK)
    SLIDE, HANDLEBAR COVER (BLACK)
  • 12
    4010287 DART, CLIP NYLON (BLACK)
    DART, CLIP NYLON (BLACK)
  • 13
    5630187-067 BLOCK, HANDLEBAR
    BLOCK, HANDLEBAR
  • 14
    5243355-067 HANDLEBAR (BLACK)
    HANDLEBAR (BLACK)
  • 15
    2010168 CONTROL ASSY. (LEFT)
    CONTROL ASSY. (LEFT)
  • 16
    5431096 PLUG, OVERFLOW
    PLUG, OVERFLOW
  • 17
    2460677 HEATER, GRIP LO/MED/HI
    HEATER, GRIP LO/MED/HI
  • 18
    7517377 SCREW
    SCREW
  • 19
    7542103 NUT, LOCK
    NUT, LOCK
  • 20
    7542122 NUT, LOCK
    NUT, LOCK
  • 21
    1820682-067 STEERING POST
    STEERING POST
  • 22
    7511848 SCREW, SEMS
    SCREW, SEMS
  • 23
    5432261 HOLDER, WIRE
    HOLDER, WIRE
  • 24
    7710401 'E' RING
    'E' RING
  • 25
    7512465 SCREW
    SCREW
  • 26
    7555727 RIVET BURR
    RIVET BURR
  • 27
    4110106 SWITCH, AUX.SHUT OFF
    SWITCH, AUX.SHUT OFF
  • 28
    7555730 WASHER
    WASHER
