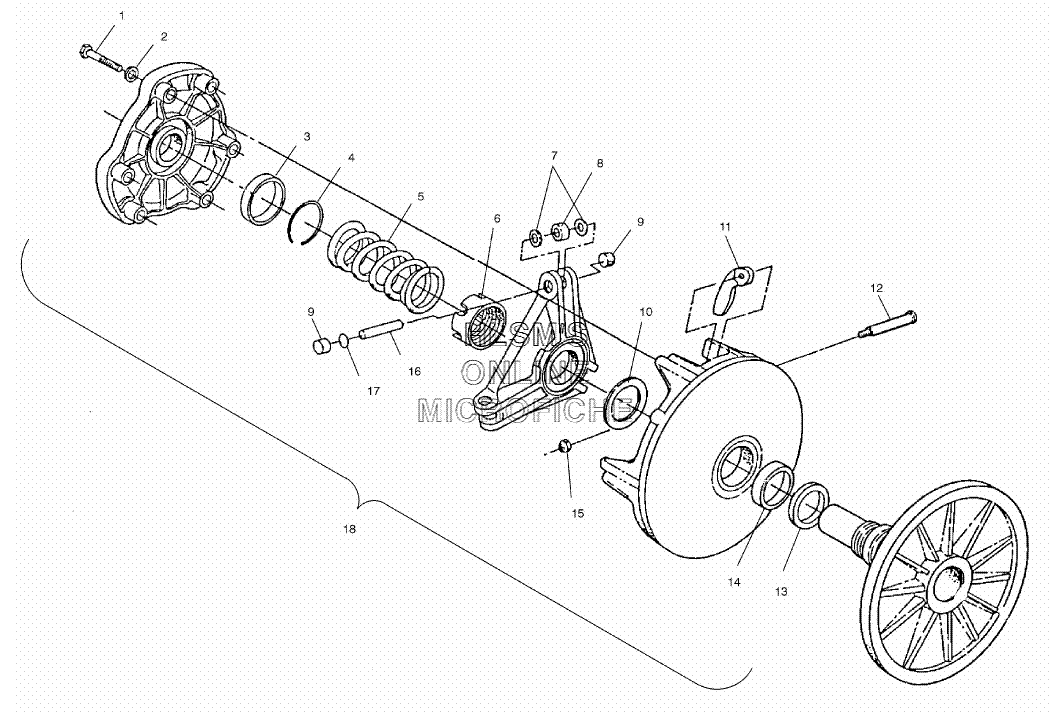

CLUTCH - DRIVE для Polaris 800 XCR (S02SB8AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    2201169 REBUILD, WIDE ROLLER KIT (INCL. 7, 9, 12, 16, 17)
    REBUILD, WIDE ROLLER KIT (INCL. 7, 9, 12, 16, 17)
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 LOCK, WASHER
    LOCK, WASHER
  • 3
    3576516 COVER, BEARING
    COVER, BEARING
  • 4
    7710417 RING, RETAINING BOLT
    RING, RETAINING BOLT
  • 5
    7041945 SPRING, CLUTCH (ALMOND/ROUND)
    SPRING, CLUTCH (ALMOND/ROUND)
  • 6
    5020425 NUT, JAM
    NUT, JAM
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321622 ROLLER AND BUSHING ASSY.
    ROLLER AND BUSHING ASSY.
  • 9
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 10
    5210754 SPACER (.050'')
    SPACER (.050'')
  • 10
    5210753 SPACER (.032'')
    SPACER (.032'')
  • 10
    5242981 SPACER (.025'')
    SPACER (.025'')
  • 10
    5210752 SPACER (.020'')
    SPACER (.020'')
  • 11
    1321587 WEIGHT/BUSHING ASSY.
    WEIGHT/BUSHING ASSY.
  • 12
    7515105 PIN, WEIGHT HARDENED
    PIN, WEIGHT HARDENED
  • 13
    5010188 BUSHING, RETAINER
    BUSHING, RETAINER
  • 14
    3576502 SLEEVE, BEARING
    SLEEVE, BEARING
  • 15
    7541906 NUT FLEX LOC
    NUT FLEX LOC
  • 16
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 17
    2200387 SHIM, DRIVE CLUTCH KIT
    SHIM, DRIVE CLUTCH KIT
  • 18
    1321810 CLUTCH, DRIVE (INCL. ALL LESS 5, 11)
    CLUTCH, DRIVE (INCL. ALL LESS 5, 11)
