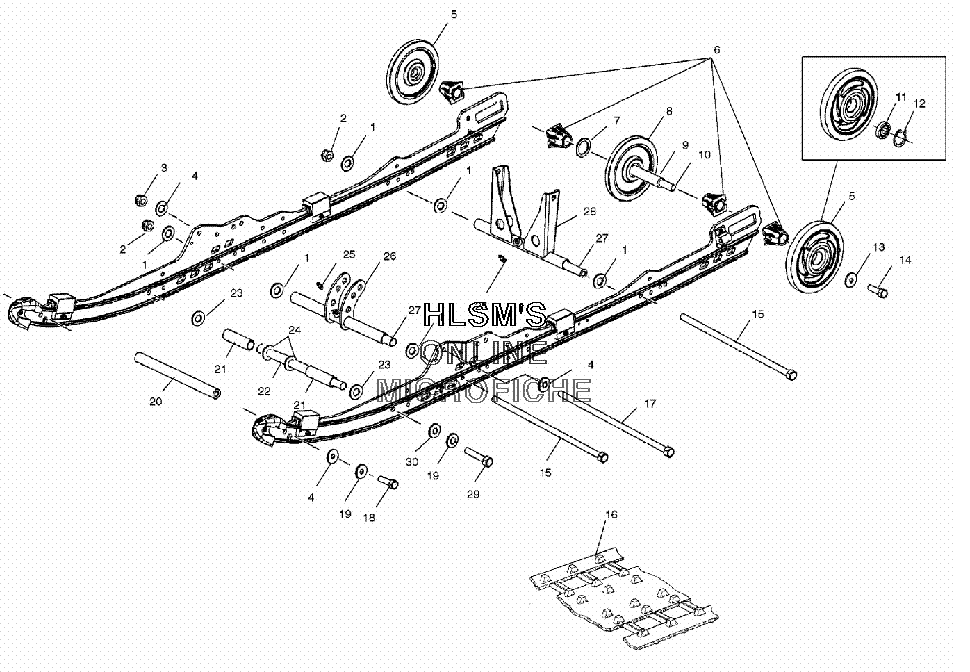

SUSPENSION/TRACK для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7556216 WASHER
    WASHER
  • 2
    7547064 NUT
    NUT
  • 3
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 4
    7555806 WASHER
    WASHER
  • 5
    1590303-293 WHEEL, IDLER, HP, RED [INCL. 11, 12]
    WHEEL, IDLER, HP, RED [INCL. 11, 12]
  • 6
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 7
    7555918 BUSHING
    BUSHING
  • 8
    1594087 WHEEL ASSY, PLAIN (6.38 O.D.)
    WHEEL ASSY, PLAIN (6.38 O.D.)
  • 9
    5333285 SPACER, IDLER, LONG
    SPACER, IDLER, LONG
  • 10
    5020744 SHAFT, IDLER
    SHAFT, IDLER
  • 11
    3514384 BEARING (.7874X1.6535X.4724, NTN)
    BEARING (.7874X1.6535X.4724, NTN)
  • 12
    7710444 RING, RETAINING
    RING, RETAINING
  • 13
    7556130 WASHER (.406X1.25X.125)
    WASHER (.406X1.25X.125)
  • 14
    7517731 BOLT, 3/8 16X1.25)
    BOLT, 3/8 16X1.25)
  • 15
    7517996 SCREW (5/16 24X9.75, HWH, SP, GR8)
    SCREW (5/16 24X9.75, HWH, SP, GR8)
  • 16
    5411915 TRACK, 144X2", DEEPLUG, SRS3
    TRACK, 144X2", DEEPLUG, SRS3
  • 17
    7517921 SCREW (3/8 24X9.875, HX/LP, GR8)
    SCREW (3/8 24X9.875, HX/LP, GR8)
  • 18
    7517247 SCREW,
    SCREW,
  • 19
    7552603 WASHER
    WASHER
  • 20
    5020868 SHAFT
    SHAFT
  • 21
    5334062 SPACER SHOCK CENTERING
    SPACER SHOCK CENTERING
