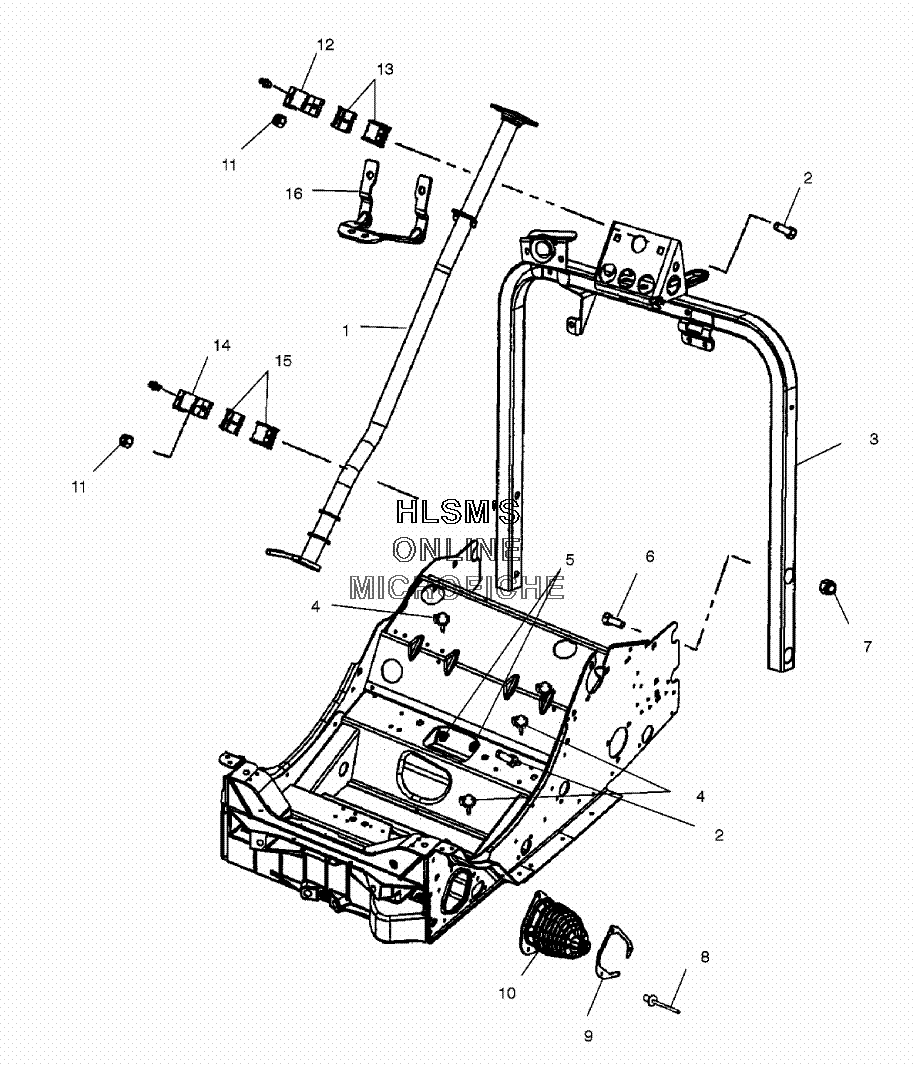

STEERING POST ASSEMBLY для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
11821162-067 WELD STEERING POST, RMK (BLACK)WELD STEERING POST, RMK (BLACK)
-
27517579 BOLT CARR 5/16 X1"GR5 Y LO)BOLT CARR 5/16 X1"GR5 Y LO)
-
31013444-067 WELD STEERING HOOP (BLACK)WELD STEERING HOOP (BLACK)
-
44020139 CLIP, PLASTICCLIP, PLASTIC
-
57547030 PALNUT,PALNUT,
-
67512377 BOLTBOLT
-
77542343 NUT, NYLOCKNUT, NYLOCK
-
87621433 RIVETRIVET
-
95244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
105433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
105433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
117542324 NUTNUT
-
125131841 BRACKET, STEER.POSTBRACKET, STEER.POST
-
127080510 FITTING, ZERKFITTING, ZERK
-
135432785 BUSHING, STEER.POSTBUSHING, STEER.POST
-
145132967 BRACKET STEERING POST, ALUM, .75WBRACKET STEERING POST, ALUM, .75W
-
155434167 BUSHING STEER POST (.75W, PLAS)BUSHING STEER POST (.75W, PLAS)
-
165245373 BRACKET CONSOLE, FRNT NECK, FWD, SRPBRACKET CONSOLE, FRNT NECK, FWD, SRP
