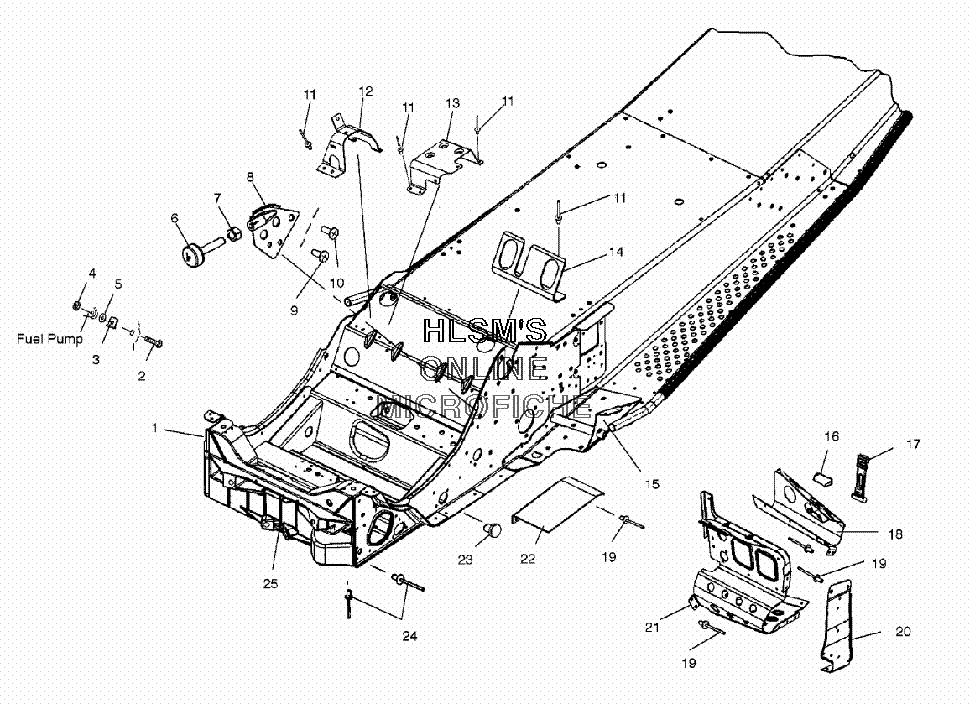

FRAME - CHASSIS для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
11013452-309 CHASSIS ASSY, SVC, EDGE, NATURALCHASSIS ASSY, SVC, EDGE, NATURAL
-
27512275 BOLT CARRIAGEBOLT CARRIAGE
-
37670021 SPEEDOMETER NUTSPEEDOMETER NUT
-
47542122 NUT LOCKNUT LOCK
-
57555932 WASHER, NYLONWASHER, NYLON
-
63021104 STOP, TORQUE COURSE (3/8 16)STOP, TORQUE COURSE (3/8 16)
-
77542404 NUTNUT
-
81013379 WELD TORQUE STOP (S44)WELD TORQUE STOP (S44)
-
97517854 SCREWSCREW
-
107517632 SCREWSCREW
-
117621432 RIVET (3/16X.402)RIVET (3/16X.402)
-
125245003 BRACKET JACKSHAFT, SHIELDBRACKET JACKSHAFT, SHIELD
-
135245202 BRACKET OIL BOTTLE, BULKHEADBRACKET OIL BOTTLE, BULKHEAD
-
145245725 BRACKET AIRBOX, EDGEBRACKET AIRBOX, EDGE
-
152202059 MOUNT KIT, TRAILING ARM (LEFT)MOUNT KIT, TRAILING ARM (LEFT)
-
152202060 MOUNT KIT, TRAILING ARM (RIGHT)MOUNT KIT, TRAILING ARM (RIGHT)
-
165521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
175433150 STRAP, RUBBERSTRAP, RUBBER
-
185245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
185245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
197661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
205242741 SUPPORT, FOOTREST (LEFT)SUPPORT, FOOTREST (LEFT)
-
205242742 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
215245288 FOOTREST (LEFT) (.080)FOOTREST (LEFT) (.080)
-
215242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
225221583 GUARD ADAPTER DRIVEGUARD ADAPTER DRIVE
-
237080416 PLUG, HOLEPLUG, HOLE
-
247661639 RIVET (3/16-.214-.420)RIVET (3/16-.214-.420)
-
255132292 BULKHEAD, MACH (FRONT)BULKHEAD, MACH (FRONT)
