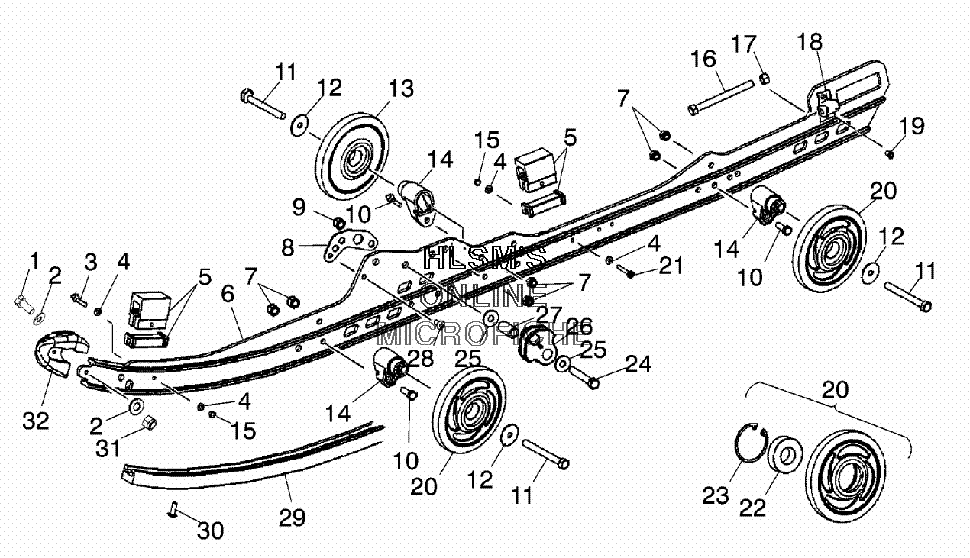

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512007 SCREW
    SCREW
  • 2
    7555792 WASHER
    WASHER
  • 3
    7510504 SCREW
    SCREW
  • 4
    7555783 WASHER
    WASHER
  • 5
    5521498 BUMPER, JOUNCE REAR
    BUMPER, JOUNCE REAR
  • 5
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 6
    1541611 ASSY RAIL, 144 (LEFT) [INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32]
    ASSY RAIL, 144 (LEFT) [INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32]
  • 6
    1541612 ASSY RAIL, 144 (RIGHT) [INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32]
    ASSY RAIL, 144 (RIGHT) [INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32]
  • 7
    7542324 NUT
    NUT
  • 8
    5245411 BRACKET RAIL, REINF
    BRACKET RAIL, REINF
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    7515317 BOLT
    BOLT
  • 11
    7515346 BOLT
    BOLT
  • 12
    7556179 WASHER SPRING, CON 5/16X.090
    WASHER SPRING, CON 5/16X.090
  • 13
    1590317 ASSY WHEEL, BOGIE, PLAIN, 5.62
    ASSY WHEEL, BOGIE, PLAIN, 5.62
  • 14
    5631065 BLOCK WHEEL MOUNT, LWT
    BLOCK WHEEL MOUNT, LWT
  • 15
    7541925 NUT
    NUT
  • 16
    7517227 SCREW,
    SCREW,
  • 17
    7542404 NUT
    NUT
  • 18
    5130530 BLOCK IDLER BOLT ADJ.
    BLOCK IDLER BOLT ADJ.
  • 19
    7621501 RIVET,
    RIVET,
  • 20
    1590318-293 ASSY WHEEL SCROLLED, 5.62, I RED [INCL. 22, 23]
    ASSY WHEEL SCROLLED, 5.62, I RED [INCL. 22, 23]
  • 21
    7510504 SCREW
    SCREW
  • 22
    3514303 BEARING [1 PER WHEEL]
    BEARING [1 PER WHEEL]
  • 23
    7718407 RING RETAINING [1 PER WHEEL]
    RING RETAINING [1 PER WHEEL]
  • 24
    7515438 BOLT
    BOLT
  • 25
    7555983 WASHER, FLAT
    WASHER, FLAT
  • 26
    5434334 GUIDE SPRING SQUARE
    GUIDE SPRING SQUARE
  • 26
    7661123 PIN CLEVIS (3/16X1 1/4)
    PIN CLEVIS (3/16X1 1/4)
  • 26
    7661644 PIN, HITCH
    PIN, HITCH
  • 27
    5333948 SPACER (.407X.625X1.33)
    SPACER (.407X.625X1.33)
  • 28
    7661845 RIVET
    RIVET
  • 29
    5521580-309 HI FAX, 136, .450, NATURAL
    HI FAX, 136, .450, NATURAL
  • 30
    7515199 SCREW
    SCREW
  • 31
    7541925 NUT
    NUT
  • 32
    5434355 CAP RAIL TIP UHMW
    CAP RAIL TIP UHMW
