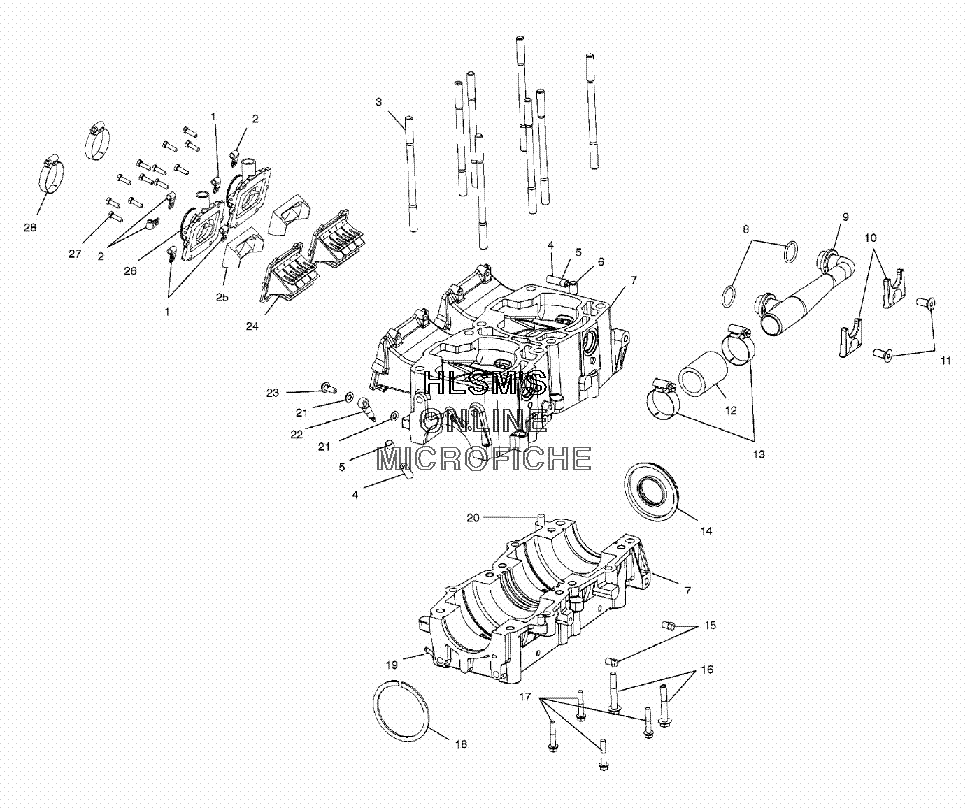

CRANKCASE ASSEMBLY для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7080880 CLAMP HOSE, VNL COATED (625 DIA)
    CLAMP HOSE, VNL COATED (625 DIA)
  • 2
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    5131677 STUD, CYLINDER FLANGE (152MM)
    STUD, CYLINDER FLANGE (152MM)
  • 4
    8450061-600 FUELLINE (3MMX7MM)
    FUELLINE (3MMX7MM)
  • 5
    7080603 CLAMP
    CLAMP
  • 6
    7051020 VALVE, CHECK (90 DEG)
    VALVE, CHECK (90 DEG)
  • 7
    2201930 CRANKCASE KIT 1202241 [INCL. 3, 7, 16, 17, 20]
    CRANKCASE KIT 1202241 [INCL. 3, 7, 16, 17, 20]
  • 8
    5411125 O-RING
    O-RING
  • 9
    5630610 MANIFOLD, WATER INLET
    MANIFOLD, WATER INLET
  • 10
    5243431 RETAINER INLET WATER MANIFOLD
    RETAINER INLET WATER MANIFOLD
  • 11
    7516736 SCREW
    SCREW
  • 12
    8450068-04 HOSE
    HOSE
  • 13
    7080560 CLAMP, S.S.
    CLAMP, S.S.
  • 14
    5411394 SEAL, FLANGED
    SEAL, FLANGED
  • 15
    7051529 PLUG
    PLUG
  • 16
    7516919 SCREW
    SCREW
  • 17
    7516732 SCREW
    SCREW
  • 18
    7710441 RING, RETAINING
    RING, RETAINING
  • 19
    7052145 FITTING
    FITTING
  • 20
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 21
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 22
    7052160 VALVE, CHECK, OIL PUMP
    VALVE, CHECK, OIL PUMP
  • 23
    7517319 SCREW
    SCREW
  • 24
    1201825 VALVE, REED ASSY
    VALVE, REED ASSY
  • 25
    5433151 STUFFER REED BLOCK, NOK
    STUFFER REED BLOCK, NOK
  • 26
    1253327 ADAPTER, CARBURETOR (40MM)
    ADAPTER, CARBURETOR (40MM)
  • 27
    7517398 SCREW
    SCREW
  • 28
    7080681 CLAMP, HOSE, SS
    CLAMP, HOSE, SS
