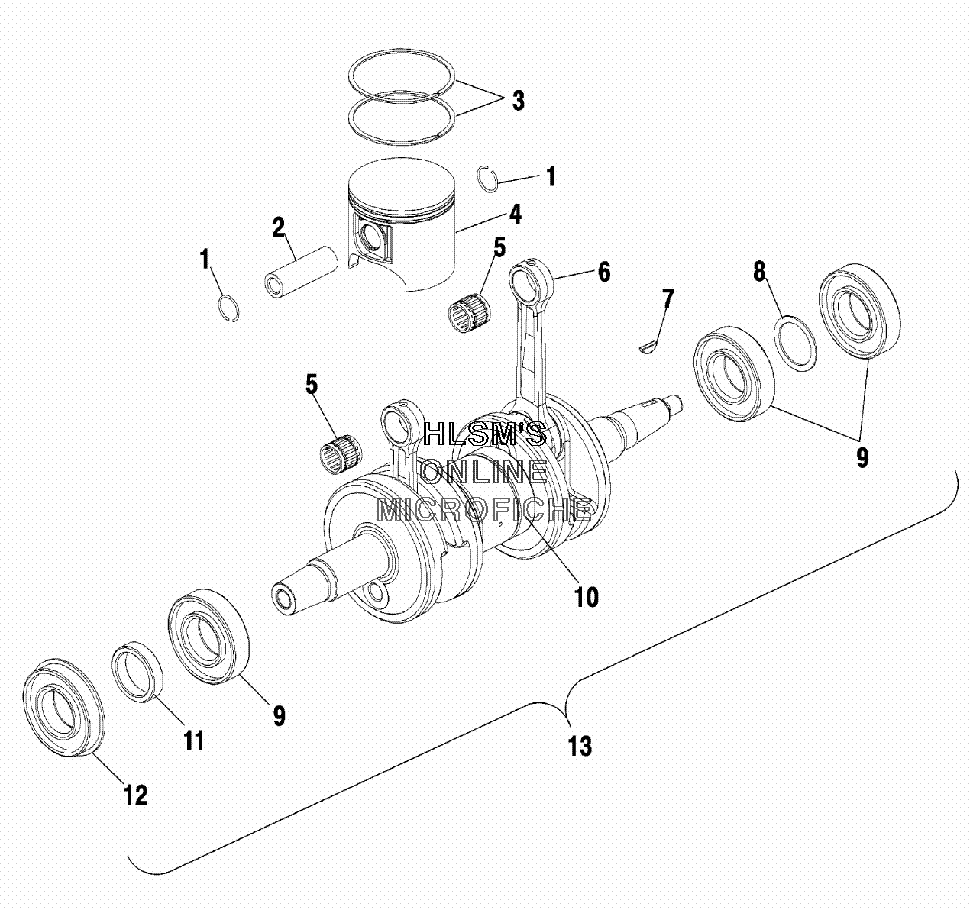

PISTON AND CRANKSHAFT для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
13022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
32200895 KIT, RINGS, 81MM, SNOKIT, RINGS, 81MM, SNO
-
42201358 KIT, PISTON ASSY. [INCL. 1, 2, 3]KIT, PISTON ASSY. [INCL. 1, 2, 3]
-
53584001 BEARING, CONNECT.RODBEARING, CONNECT.ROD
-
62201953 KIT CONN ROD 5131087 W/BUR PIN [INCL. ROD, PIN, BEARING, WASHERS]KIT CONN ROD 5131087 W/BUR PIN [INCL. ROD, PIN, BEARING, WASHERS]
-
77721117 KEY, WOODRUFFKEY, WOODRUFF
-
87555905 BUSHINGBUSHING
-
93585503 BEARING, BALLBEARING, BALL
-
103514318 BEARING, BALLBEARING, BALL
-
115131899 SPACER, CRANKSHAFTSPACER, CRANKSHAFT
-
123514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
132201848 KIT CRANKSHAFT [INCL. 8 12]KIT CRANKSHAFT [INCL. 8 12]
