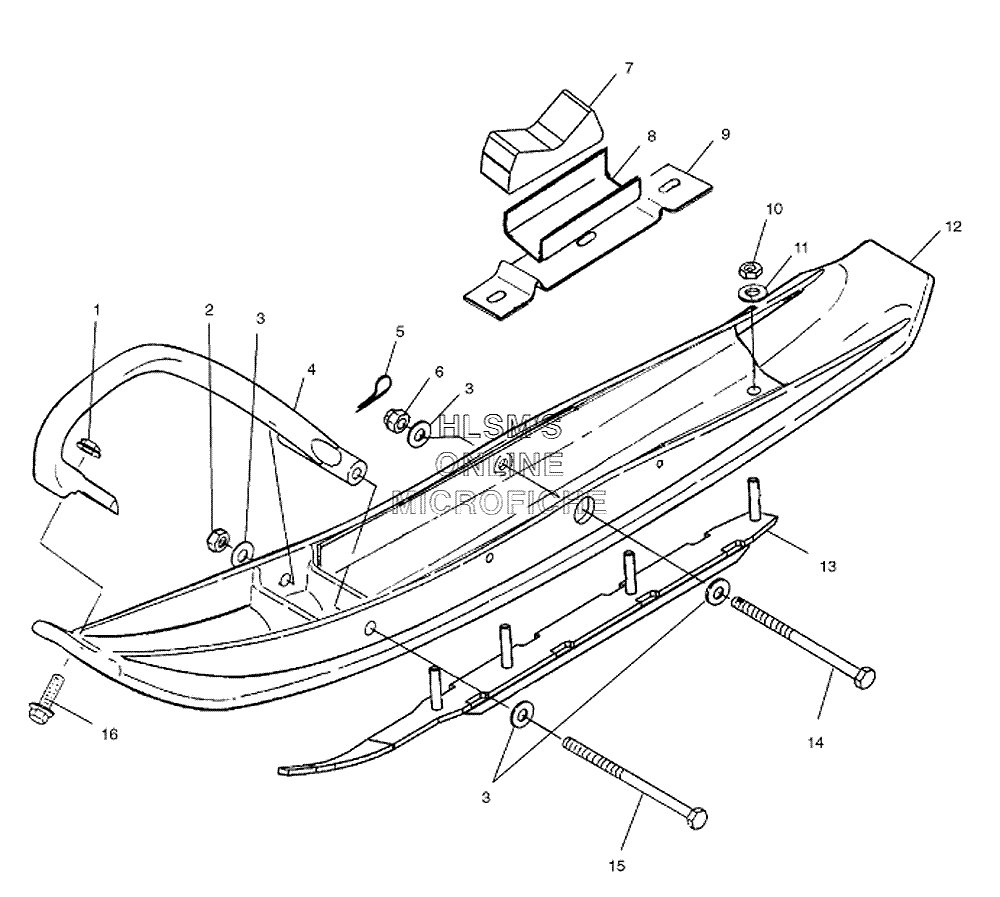

SKI ASSEMBLY (BUILT AFTER 11/5/01) для Polaris 600 CLASSIC TOURING (S02ST6ES) - 2002 года выпуска
-
№АртикулНазвание
-
17542321 NUT LOCKNUT LOCK
-
27542439 NUT, NYLOCKNUT, NYLOCK
-
37555832 WASHERWASHER
-
45434165-070 TOE PLASTIC SKI (BLACK)TOE PLASTIC SKI (BLACK)
-
57661209 PIN, COTTERPIN, COTTER
-
67542438 NUT, CASTLENUT, CASTLE
-
75412018 STOP SKI, RUBBERSTOP SKI, RUBBER
-
85243824 RETAINER SKI RUBBERRETAINER SKI RUBBER
-
95241912-067 SUPPORT, SKI RUBBER (BLACK)SUPPORT, SKI RUBBER (BLACK)
-
107542324 NUTNUT
-
117555843 WASHERWASHER
-
121820821-070 COMP SKI BLANK ASSY. (BLACK)COMP SKI BLANK ASSY. (BLACK)
-
132874066 SKAG, DUAL CARBURETORSKAG, DUAL CARBURETOR
-
147512596 SCREWSCREW
-
157515514 BOLTBOLT
-
167515307 BOLTBOLT
