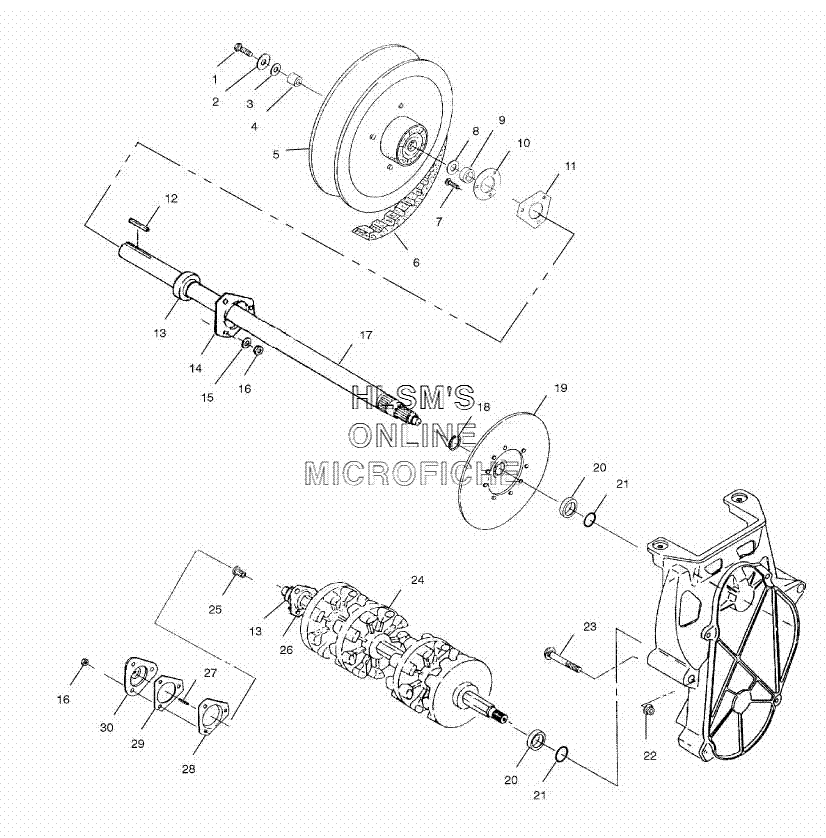

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 600 CLASSIC TOURING (S02ST6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7515369 BOLT
    BOLT
  • 2
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 3
    7555734 WASHER
    WASHER
  • 4
    5020913 SPACER
    SPACER
  • 5
    1322015 DRIVEN CLUTCH ASSY.
    DRIVEN CLUTCH ASSY.
  • 6
    3211075 BELT, DRIVE
    BELT, DRIVE
  • 7
    7512377 BOLT
    BOLT
  • 8
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 9
    5020837 SPACER
    SPACER
  • 10
    5241359 FLANGE, RELUBE W/ZERK
    FLANGE, RELUBE W/ZERK
  • 10
    7080561 FITTING, LUB/VEN
    FITTING, LUB/VEN
  • 11
    5811095 GASKET, JACKSHAFT (BLACK)
    GASKET, JACKSHAFT (BLACK)
  • 12
    7721128 KEY
    KEY
  • 13
    3514525 BEARING
    BEARING
  • 14
    5222751 FLANGETTE
    FLANGETTE
  • 15
    7558402 WASHER, STEEL
    WASHER, STEEL
  • 16
    7542324 NUT
    NUT
  • 17
    1332207 JACKSHAFT ASSY. (15 SPLINE) (INCL. 13, 18)
    JACKSHAFT ASSY. (15 SPLINE) (INCL. 13, 18)
  • 18
    7710422 RING, RETAINING
    RING, RETAINING
  • 19
    1910403 BRAKE DISC ASSY.
    BRAKE DISC ASSY.
  • 20
    5020588 SLEEVE, SEAL
    SLEEVE, SEAL
  • 21
    5410613 O-RING
    O-RING
  • 22
    7542423 NUT
    NUT
  • 23
    7515428 BOLT
    BOLT
  • 24
    1590282 DRIVESHAFT ASSY. W/BEARING (INCL. 25, 26)
    DRIVESHAFT ASSY. W/BEARING (INCL. 25, 26)
  • 25
    3280019 BUSHING, METAL SPEEDOMETER
    BUSHING, METAL SPEEDOMETER
  • 26
    1012945 FLANGETTE ASSY. W/SCREWS
    FLANGETTE ASSY. W/SCREWS
  • 27
    3280017 SQUARE, KEY SPEEDOMETER
    SQUARE, KEY SPEEDOMETER
  • 28
    5243529 FLANGETTE OFFSET, W/HOLE
    FLANGETTE OFFSET, W/HOLE
  • 29
    5830012 GASKET, DRIVE ADAPTOR
    GASKET, DRIVE ADAPTOR
  • 30
    3280116 ADAPTER, DRIVE W/ZERK
    ADAPTER, DRIVE W/ZERK
