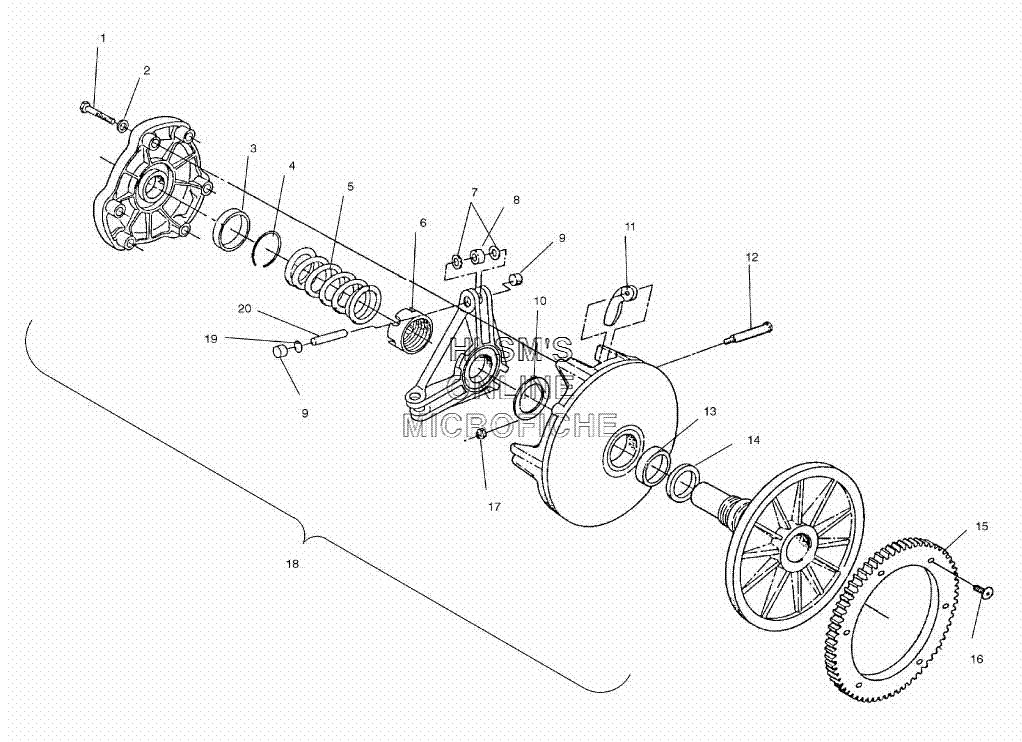

CLUTCH - DRIVE для Polaris 600 CLASSIC TOURING (S02ST6ES) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 LOCK, WASHER
    LOCK, WASHER
  • 3
    3576516 COVER, BEARING
    COVER, BEARING
  • 4
    7710417 RING, RETAINING BOLT
    RING, RETAINING BOLT
  • 5
    7041781 SPRING, CLUTCH (DARK BLUE/WHITE)
    SPRING, CLUTCH (DARK BLUE/WHITE)
  • 6
    5020425 NUT, JAM
    NUT, JAM
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321622 ROLLER AND BUSHING ASSY.
    ROLLER AND BUSHING ASSY.
  • 9
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 10
    5210754 SPACER (.050'')
    SPACER (.050'')
  • 10
    5210753 SPACER (.032'')
    SPACER (.032'')
  • 10
    5242981 SPACER (.025'')
    SPACER (.025'')
  • 10
    5210752 SPACER (.020'')
    SPACER (.020'')
  • 11
    1321588 WEIGHT/BUSHING ASSY.
    WEIGHT/BUSHING ASSY.
  • 12
    7515105 PIN, WEIGHT HARDENED
    PIN, WEIGHT HARDENED
  • 13
    3576502 SLEEVE, BEARING
    SLEEVE, BEARING
  • 14
    5010188 BUSHING, RETAINER
    BUSHING, RETAINER
  • 15
    5131062 GEAR RING
    GEAR RING
  • 16
    7515351 BOLT, RING GEAR
    BOLT, RING GEAR
  • 17
    7541906 NUT, FLEX LOC
    NUT, FLEX LOC
  • 18
    1321931 DRIVE CLUTCH ASSY. (117W/B) (INCL. ALL LESS 5, 11)
    DRIVE CLUTCH ASSY. (117W/B) (INCL. ALL LESS 5, 11)
  • 19
    2200387 SHIM KIT, DRIVE CLUTCH
    SHIM KIT, DRIVE CLUTCH
  • 20
    5133079 PIN ROLLER (1'')
    PIN ROLLER (1'')
