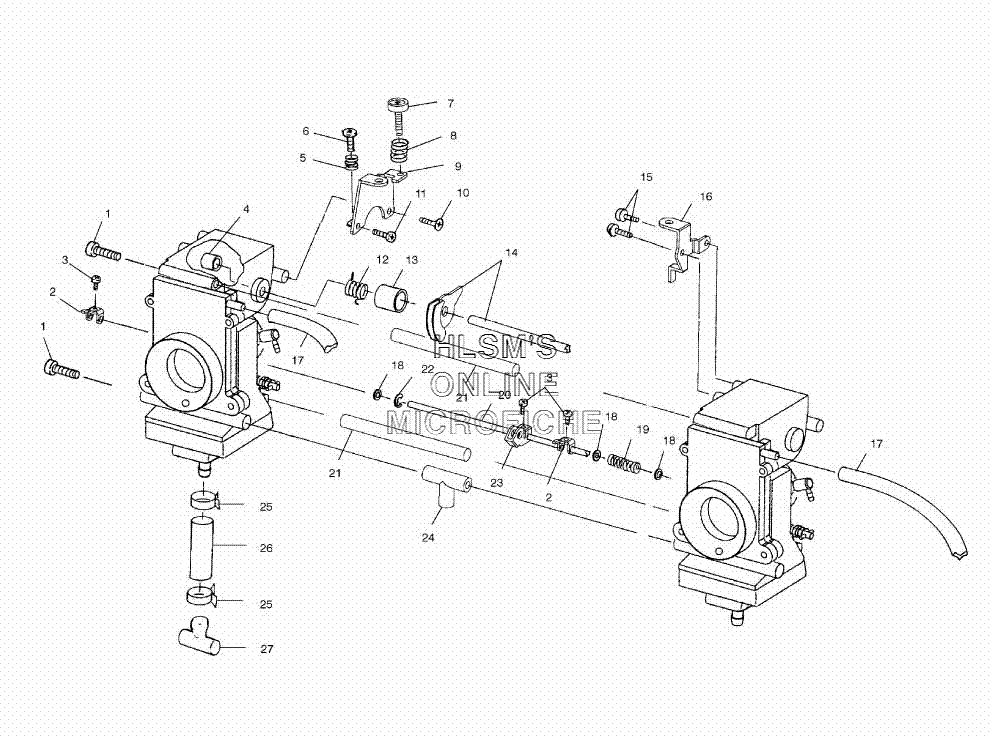

CARBURETOR ASSEMBLY для Polaris 600 CLASSIC TOURING (S02ST6ES) - 2002 года выпуска

№

Артикул

Название
1A

1253437 CARBURETOR ASSY.

CARBURETOR ASSY.
1

3130951 SCREW

SCREW
2

3130872 CAP (TOP)

CAP (TOP)
3

3130871 GASKET

GASKET
4

3130844 SCREW

SCREW
5

3130846 WASHER, PACKING

WASHER, PACKING
6

3130856 CLIP

CLIP
7

3130845 RING

RING
8

3130857 PLATE

PLATE
9

3130847 E-RING

E-RING
10

3130831 CAP, STARTER (RUBBER)

CAP, STARTER (RUBBER)
11

3130830 HOLDER, STARTER GUIDE

HOLDER, STARTER GUIDE
12

3130829 SPRING, STARTER

SPRING, STARTER
13

3130828 PLUNGER ASSY. (.258)

PLUNGER ASSY. (.258)
14

3131216 PV, NOTCHED (1.5)

PV, NOTCHED (1.5)
15

3130794 JET, NEEDLE

JET, NEEDLE
16

3130867 PACKING

PACKING
17

3130868 E-RING

E-RING
18

3130843 PLATE

PLATE
19

3130855 LEVER ASSY.

LEVER ASSY.
19

3130849 LEVER ASSY.

LEVER ASSY.
20

3130848 RING

RING
21

3130854 SCREW

SCREW
22

3130850 SCREW

SCREW
23

3130870 O-RING, AIR FUNNEL

O-RING, AIR FUNNEL
24

3130869 FUNNEL ASSY.

FUNNEL ASSY.
25

3130825 SCREW, AIR FUNNEL

SCREW, AIR FUNNEL
26

3131258 JET, AIR, PILOT (1.1)

JET, AIR, PILOT (1.1)
27

3130599 JET, MAIN (#410)

JET, MAIN (#410)
28

3131248 BOLT DRAIN

BOLT DRAIN
29

3130863 O-RING, DRAIN SCREW

O-RING, DRAIN SCREW
30

3130824 SCREW, FLOAT BOWL

SCREW, FLOAT BOWL
31

3130858 FLOAT, BODY

FLOAT, BODY
32

3130861 O-RING, FLOAT BOWL

O-RING, FLOAT BOWL
33

3130860 SCREW, VALVE SEAT

SCREW, VALVE SEAT
34

3130977 FLOAT ASSY.

FLOAT ASSY.
35

3130066 JET, PILOT (#35)

JET, PILOT (#35)
36

3130769 JET, STARTER (#145)

JET, STARTER (#145)
37

3130837 WASHER

WASHER
38

3130836 SPRING

SPRING
39

3130987 ADJUSTER

ADJUSTER
40

3130986 CAP

CAP
41

3131010 SCREW (MAG)

SCREW (MAG)
42

3131009 SENSOR ASSY. (MAG)

SENSOR ASSY. (MAG)
43

3130479 CAP

CAP
44

3130835 PACKING

PACKING
45

7051020 VALVE, CHECK (90 DEG)

VALVE, CHECK (90 DEG)
