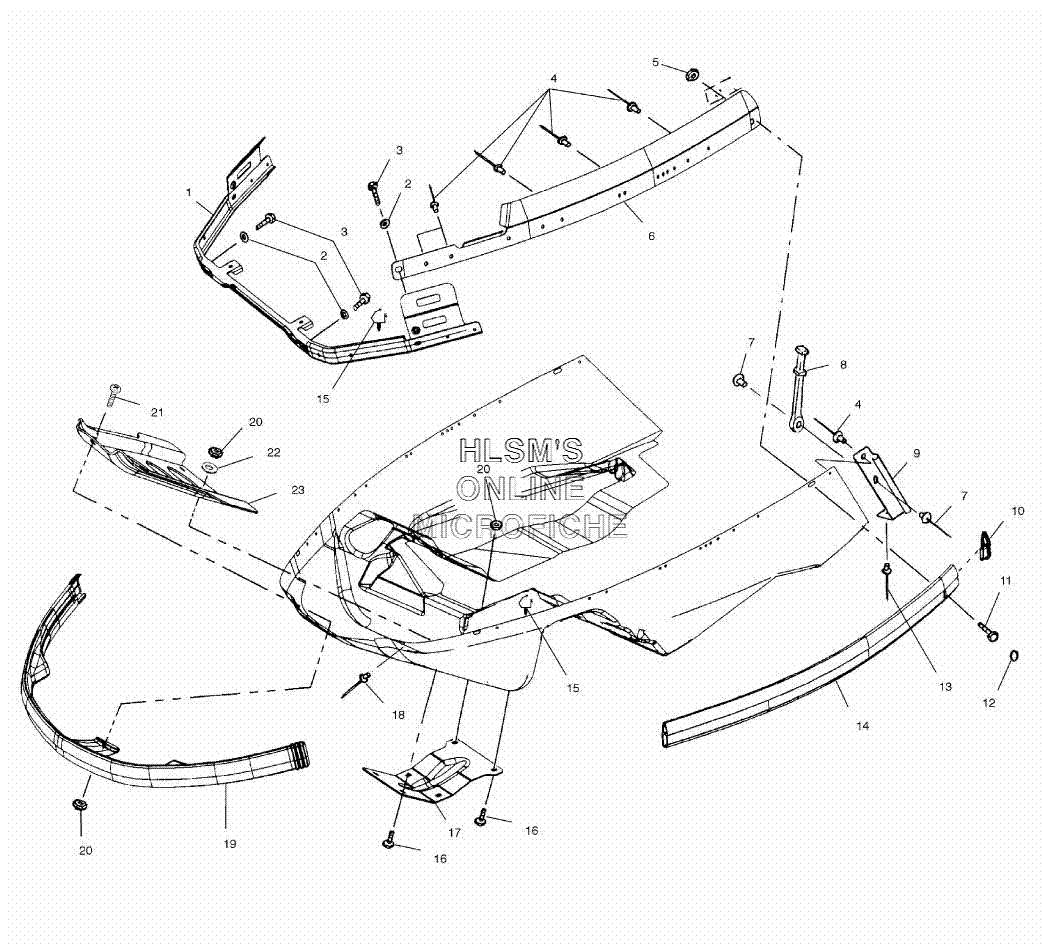

NOSEPAN ASSEMBLY #2 для Polaris 600 CLASSIC TOURING (S02ST6ES) - 2002 года выпуска`
-
№АртикулНазвание
-
11012783-067 BRACE, HINGE (BLACK)BRACE, HINGE (BLACK)
-
27552801 LOCK, WASHERLOCK, WASHER
-
37512276 BOLTBOLT
-
47621402 POP, RIVETPOP, RIVET
-
57542103 NUT, LOCKNUT, LOCK
-
65243005 GUIDE, HOOD (LEFT)GUIDE, HOOD (LEFT)
-
65243006 GUIDE, HOOD (RIGHT)GUIDE, HOOD (RIGHT)
-
77621601 RIVETRIVET
-
85410370 STRAP, HOOD LATCHSTRAP, HOOD LATCH
-
95220522-067 BRACE, PAN (LEFT)BRACE, PAN (LEFT)
-
95220523-067 BRACE, PAN (RIGHT)BRACE, PAN (RIGHT)
-
105432887 CAP, BUMPER (LEFT/BLACK)CAP, BUMPER (LEFT/BLACK)
-
105432888 CAP, BUMPER (RIGHT/BLACK)CAP, BUMPER (RIGHT/BLACK)
-
117515166 SCREWSCREW
-
127080416 PLUG, HOLEPLUG, HOLE
-
137621432 RIVETRIVET
-
145243460-067 EXTRUSION BUMPER, FORMED (LEFT/BLACK)EXTRUSION BUMPER, FORMED (LEFT/BLACK)
-
145243461-067 EXTRUSION BUMPER, FORMED (RIGHT/BLACK)EXTRUSION BUMPER, FORMED (RIGHT/BLACK)
-
157670109 CLIP, ROUTINGCLIP, ROUTING
-
167512193 BOLTBOLT
-
175242575-067 BRACE, PAN (LOWER/BLACK)BRACE, PAN (LOWER/BLACK)
-
187621463 RIVETRIVET
-
195432891-070 BUMPER (FRONT/BLACK)BUMPER (FRONT/BLACK)
-
207542122 NUT, LOCKNUT, LOCK
-
217515175 BOLTBOLT
-
227558301 WASHERWASHER
-
235243820 BRACE, PAN (UPPER)BRACE, PAN (UPPER)
