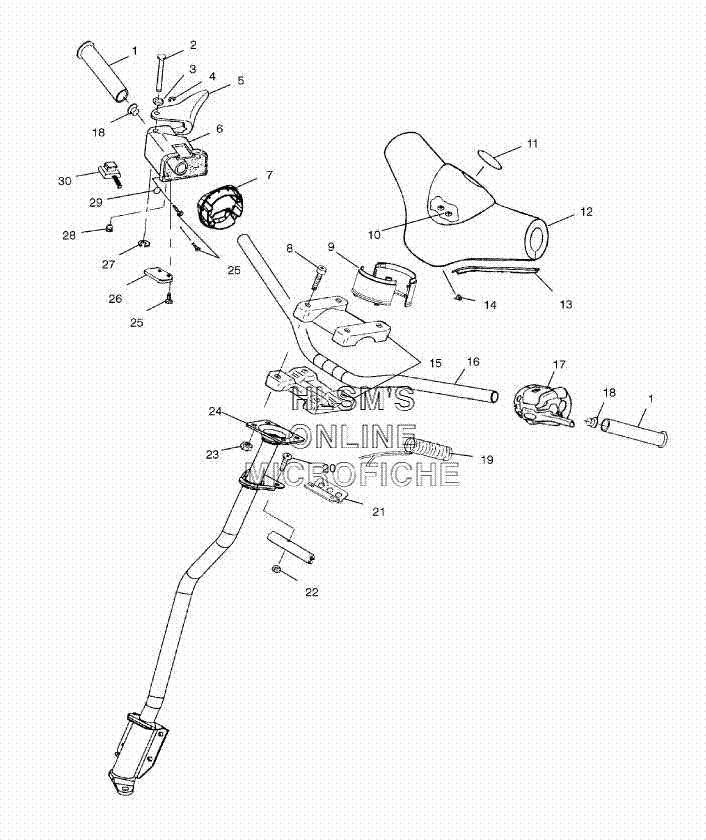

HANDLEBAR ASSEMBLY для Polaris 600 CLASSIC TOURING (S02ST6ES) - 2002 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN, HINGEPIN, HINGE
-
37555730 WASHERWASHER
-
47710503 RETAINING RINGRETAINING RING
-
55432970 THROTLE, LEVER (35.5MM)THROTLE, LEVER (35.5MM)
-
52010171 LEVER ASSY, HEATER (HI/LO) (35.5MM)LEVER ASSY, HEATER (HI/LO) (35.5MM)
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75433345 ADAPTER BLOCK, THROTTLEADAPTER BLOCK, THROTTLE
-
87517238 SCREWSCREW
-
95433331 BOOT, HANDLEBARBOOT, HANDLEBAR
-
107670106 NUT, PUSH ONNUT, PUSH ON
-
115434179 EMBLEM ''STAR''EMBLEM ''STAR''
-
125433159-070 COVER, HANDLEBAR (BLACK)COVER, HANDLEBAR (BLACK)
-
135433160-070 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
144010287 DART CLIP NYLON (BLACK)DART CLIP NYLON (BLACK)
-
155630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
165243355-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
172010206 CONTROL ASSY. (LEFT)CONTROL ASSY. (LEFT)
-
185431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
192460677 HEATER, GRIP (LO/MED/HI)HEATER, GRIP (LO/MED/HI)
-
207517377 SCREWSCREW
-
215242553-067 BRACKET, RETENTION (BLACK)BRACKET, RETENTION (BLACK)
-
227542103 NUT, LOCKNUT, LOCK
-
237542122 NUT, LOCKNUT, LOCK
-
241820663-067 STEERING POST (BLACK)STEERING POST (BLACK)
-
257511848 SCREW, SEMSSCREW, SEMS
-
265432261 HOLDER, WIREHOLDER, WIRE
-
277710401 E-RINGE-RING
-
287512465 SCREWSCREW
-
297555727 RIVET, BURRRIVET, BURR
-
304110106 SWITCH, AUX. SHUT OFFSWITCH, AUX. SHUT OFF
