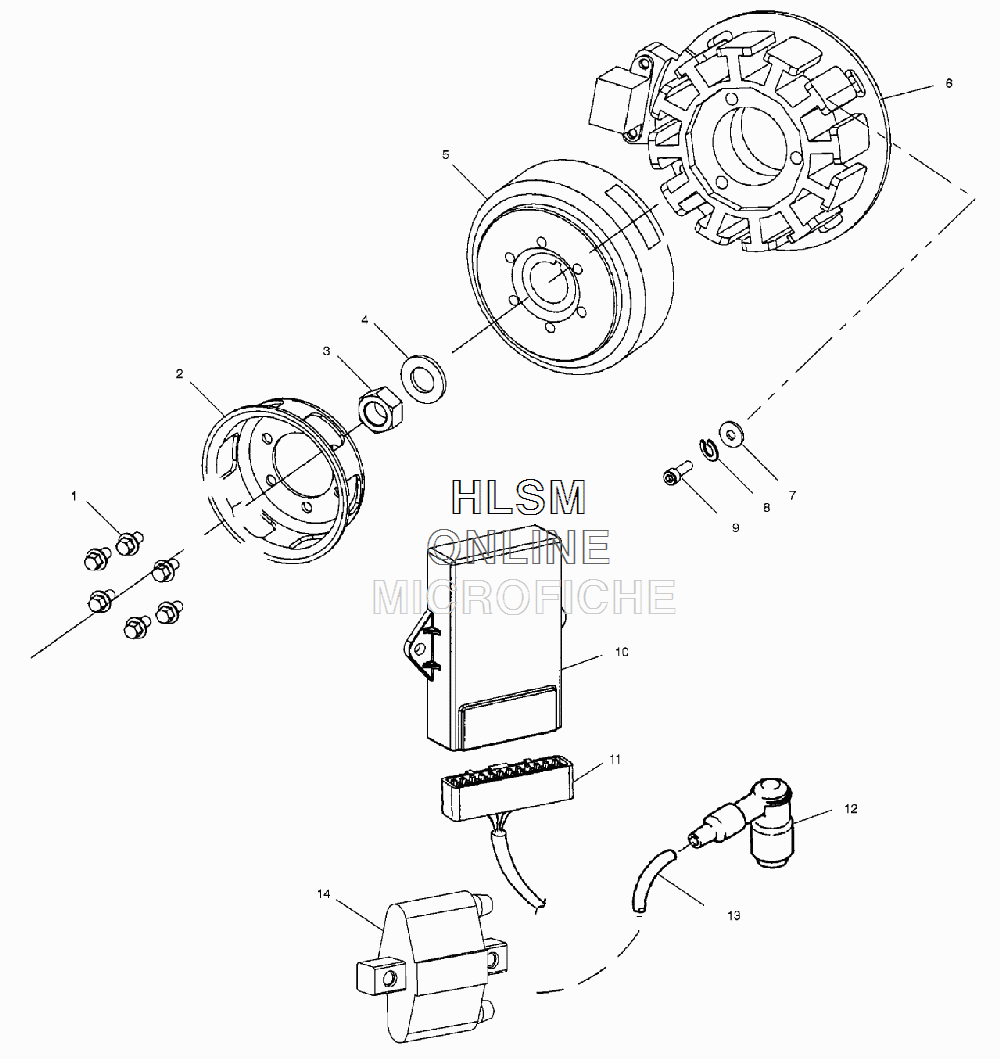

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 500 XC SP EDGE (S02NP5CSA) - 2002 года выпуска`
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010629 FLYWHEELFLYWHEEL
-
64060222 STATOR, IGNITIONSTATOR, IGNITION
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102201978 CDI KIT (INCL. NYOGEL AND DECAL)CDI KIT (INCL. NYOGEL AND DECAL)
-
114010279 HARNESSHARNESS
-
124020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
134010124-305 WIRE, IGNITION (305CM.)WIRE, IGNITION (305CM.)
-
144060229 COIL, IGNITIONCOIL, IGNITION
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- • ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FOX SHOCK - REAR TRACK
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- WATER PUMP/OIL PUMP
