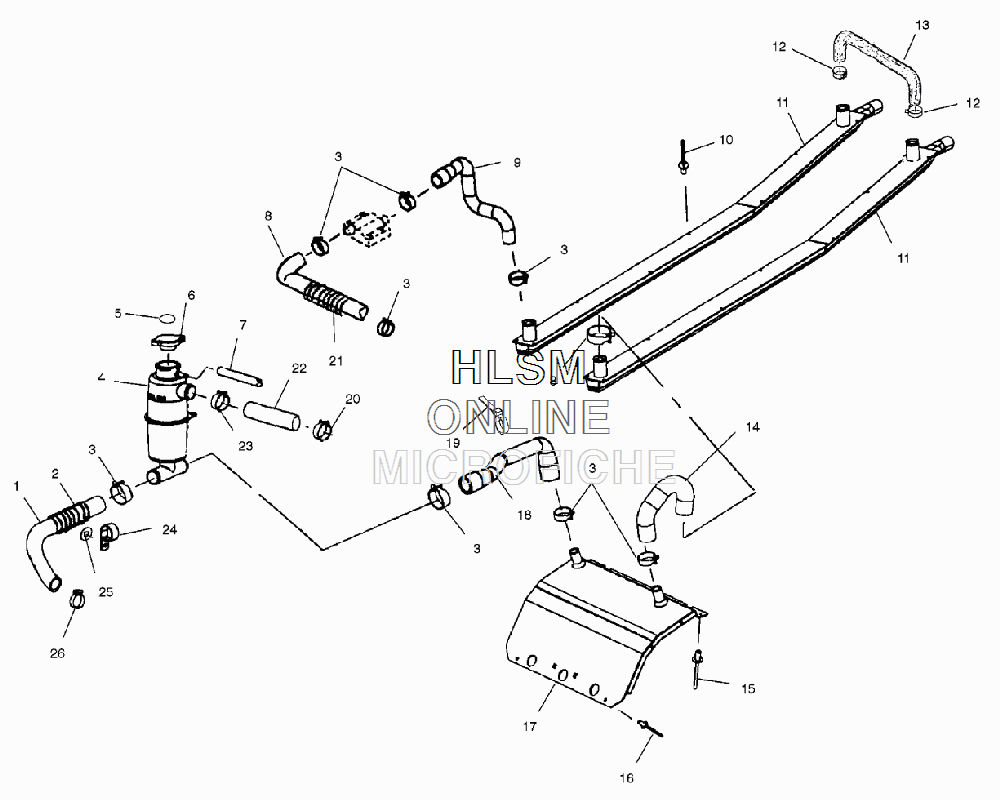

COOLING SYSTEM для Polaris 500 XC SP EDGE (S02NP5CSA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5411507 HOSE, ''T''/ENGINE IN
    HOSE, ''T''/ENGINE IN
  • 2
    5521510 TUBING, CONVOLUTED (1.25''X3'')
    TUBING, CONVOLUTED (1.25''X3'')
  • 3
    7080844 SPRINGBAND, CLAMP (35/12, BLACK)
    SPRINGBAND, CLAMP (35/12, BLACK)
  • 4
    2520314 WELD, COOLANT BOTTLE (5/8 BYPASS)
    WELD, COOLANT BOTTLE (5/8 BYPASS)
  • 5
    7170063 DECAL, WATER BOTTLE CAP
    DECAL, WATER BOTTLE CAP
  • 6
    2511270 CAP, PRESSURE (13 LB)
    CAP, PRESSURE (13 LB)
  • 7
    8450003-1525 FUEL LINE (1/4 ID 1525 CM.)
    FUEL LINE (1/4 ID 1525 CM.)
  • 8
    5411956 HOSE, ENGINE OUT/BRAKE COOLER
    HOSE, ENGINE OUT/BRAKE COOLER
  • 9
    5411852 HOSE, STRIP COOLER/BRAKE
    HOSE, STRIP COOLER/BRAKE
  • 10
    7621432 RIVET
    RIVET
  • 11
    1240147 WELD, WEARSTRIP COOLER
    WELD, WEARSTRIP COOLER
  • 12
    7080843 SPRINGBAND, CLAMP (BROWN)
    SPRINGBAND, CLAMP (BROWN)
  • 13
    5411854 HOSE, CROSSOVER, WEAR STRIP
    HOSE, CROSSOVER, WEAR STRIP
  • 14
    5411853 HOSE, CENTER/STRIP COOLER
    HOSE, CENTER/STRIP COOLER
  • 15
    7661130 RIVET
    RIVET
  • 16
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 17
    2520239 WELD, COOLER (CENTER)
    WELD, COOLER (CENTER)
  • 18
    5411878 HOSE, COOLER/BOTTLE
    HOSE, COOLER/BOTTLE
  • 19
    7080138 STRAP PANDUIT
    STRAP PANDUIT
  • 20
    7080696 CLAMP, HOSE (1.25 WORM DRIVE)
    CLAMP, HOSE (1.25 WORM DRIVE)
  • 21
    7042041 SPRING, HOSE RETAINER
    SPRING, HOSE RETAINER
  • 22
    5412104 HOSE, BYPASS
    HOSE, BYPASS
  • 23
    7080533 CLAMP
    CLAMP
  • 24
    7080908 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 26
    7080560 CLAMP
    CLAMP
