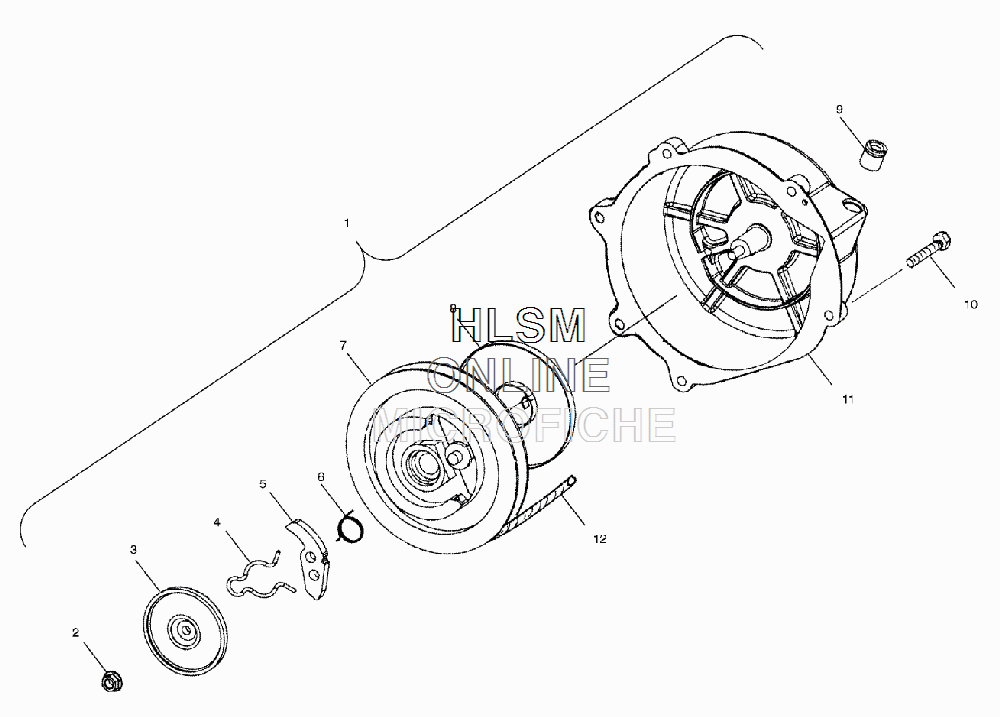

STARTER - RECOIL ASSEMBLY для Polaris 500 XC SP EDGE (S02NP5CSA) - 2002 года выпуска
-
№АртикулНазвание
-
11201815 RECOIL ASSY. (INCL. 2, 8, 11, 12)RECOIL ASSY. (INCL. 2, 8, 11, 12)
-
23083381 NUTNUT
-
33083464 PLATE, FRICTIONPLATE, FRICTION
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53040165 RATCHETRATCHET
-
63083463 SPRING, RETURNSPRING, RETURN
-
73040168 REELREEL
-
83083376 SPRING, SPIRALSPRING, SPIRAL
-
93083107 BUSHING, ROPEBUSHING, ROPE
-
107516827 SCREWSCREW
-
111201815 HOUSING, RECOILHOUSING, RECOIL
-
123040169 ROPE, STARTERROPE, STARTER
