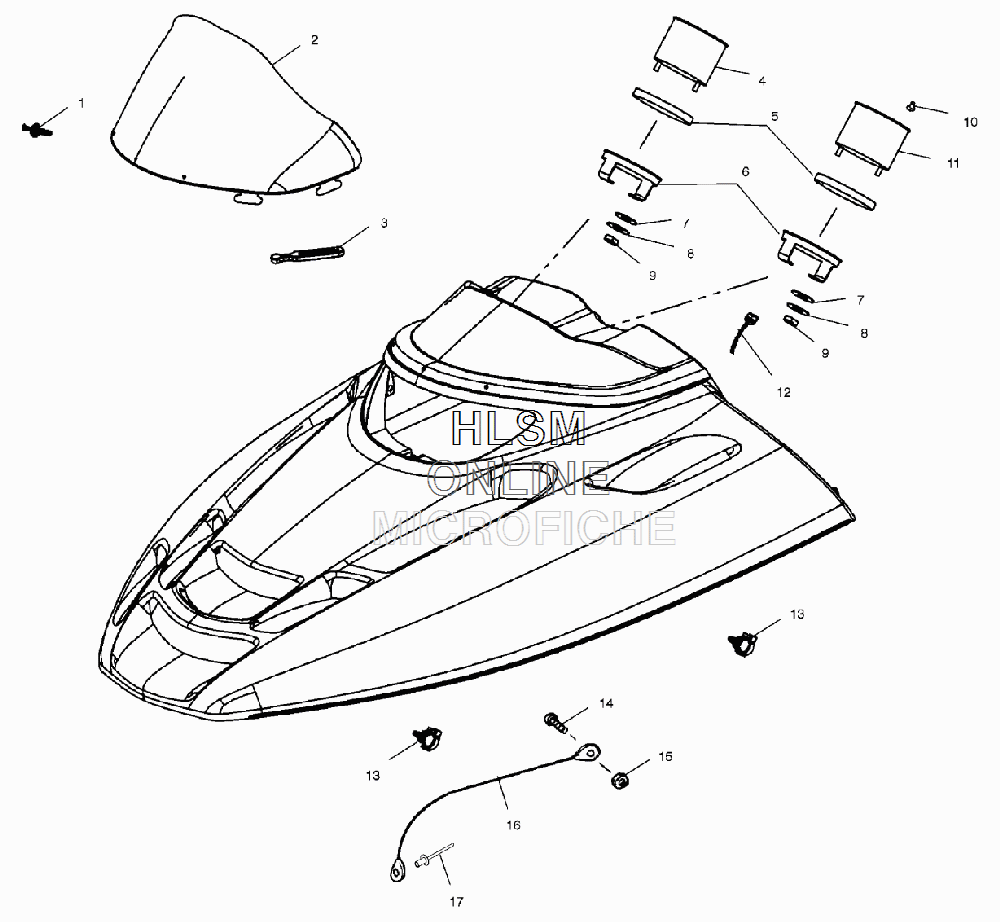

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 500 XC SP EDGE (S02NP5CSA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7621509 RIVET
    RIVET
  • 2
    5433517 WINDSHIELD, 15'' SMOKE
    WINDSHIELD, 15'' SMOKE
  • 3
    5410970 RETAINER, WINDSHIELD
    RETAINER, WINDSHIELD
  • 4
    3280329 TACH, W/FUEL (WHITE)
    TACH, W/FUEL (WHITE)
  • 4
    4030015 BULB TAILLIGHT/TACH/SPEEDO
    BULB TAILLIGHT/TACH/SPEEDO
  • 5
    3280209 CUSHION, TACH/SPEEDO RUBBER
    CUSHION, TACH/SPEEDO RUBBER
  • 6
    3280210 BRACKET, TACH/SPEEDO (5'')
    BRACKET, TACH/SPEEDO (5'')
  • 7
    3280157 WASHER, FLAT
    WASHER, FLAT
  • 8
    3280156 WASHER, SPLIT LOCK
    WASHER, SPLIT LOCK
  • 9
    3280158 NUT
    NUT
  • 10
    3280186 KNOB, TRIP ODOMETER (LEFT)
    KNOB, TRIP ODOMETER (LEFT)
  • 11
    3280348 SPEEDOMETER 5'' 120MPH (WHITE)
    SPEEDOMETER 5'' 120MPH (WHITE)
  • 11
    4030015 BULB TAILLIGHT/TACH/SPEEDO
    BULB TAILLIGHT/TACH/SPEEDO
  • 12
    3280385 CABLE, SPEEDOMETER
    CABLE, SPEEDOMETER
  • 13
    4020139 CLIP, PLASTIC
    CLIP, PLASTIC
  • 14
    7512018 SCREW
    SCREW
  • 15
    7541925 NUT
    NUT
  • 16
    7080521 CABLE, HOOD RETAINER
    CABLE, HOOD RETAINER
  • 17
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
