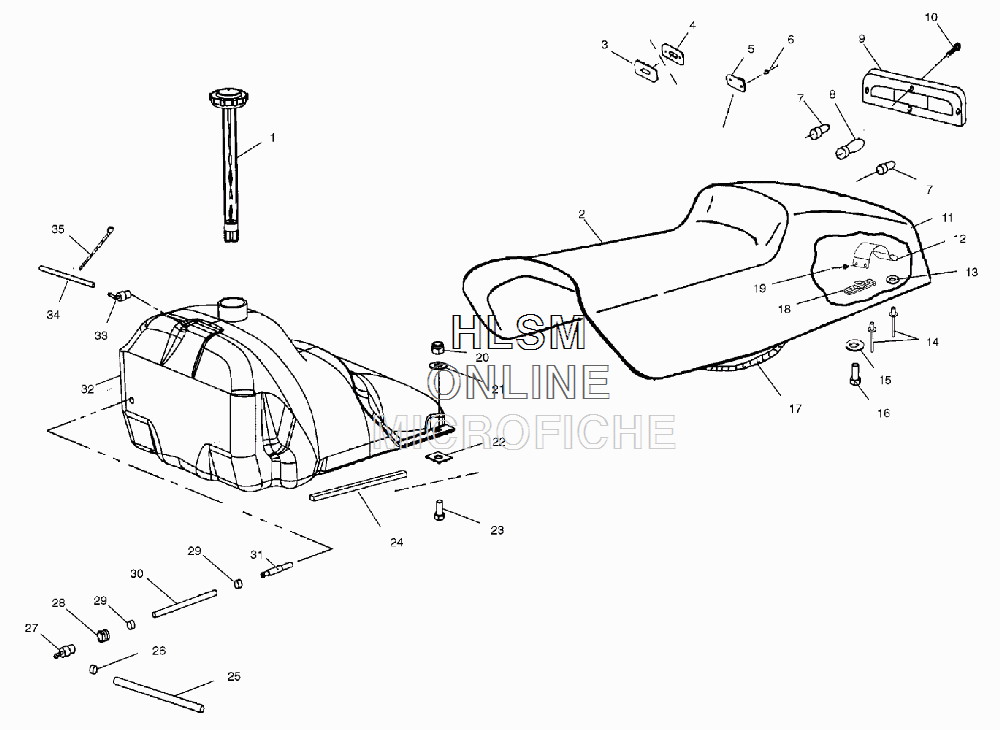

SEAT W/ GAS TANK ASSEMBLY для Polaris 500 XC SP EDGE (S02NP5CSA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1240066 CAP, FUEL W/GAUGE
    CAP, FUEL W/GAUGE
  • 2
    2682755 SEAT, EDGE ASSY. (STD A)
    SEAT, EDGE ASSY. (STD A)
  • 2
    2682756 COVER ASSY. (STD A)
    COVER ASSY. (STD A)
  • 2
    2682752 SEAT, EDGE ASSY. (STD B)
    SEAT, EDGE ASSY. (STD B)
  • 2
    2682753 SEAT COVER, EDGE ASSY. (STD B)
    SEAT COVER, EDGE ASSY. (STD B)
  • 3
    7080550 GROMMET, RELATCH 1'' (BOTTOM)
    GROMMET, RELATCH 1'' (BOTTOM)
  • 4
    7080549 GROMMET, RELATCH 1'' (TOP)
    GROMMET, RELATCH 1'' (TOP)
  • 5
    7080548 TWISTLOCK, RELATCH 1'' W/HOLE
    TWISTLOCK, RELATCH 1'' W/HOLE
  • 6
    7621337 RIVET
    RIVET
  • 7
    4030024 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 8
    4030045 BULB, BRAKELIGHT
    BULB, BRAKELIGHT
  • 9
    5430423 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 10
    7511840 SCREW
    SCREW
  • 11
    5433341 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 12
    5243185 RETAINER, CLIP TOOL POUCH
    RETAINER, CLIP TOOL POUCH
  • 13
    7555727 RIVET BURR
    RIVET BURR
  • 14
    7621307 RIVET
    RIVET
  • 15
    7558301 WASHER
    WASHER
  • 16
    7515159 SCREW
    SCREW
  • 17
    2460399 HARNESS, TAILLIGHT
    HARNESS, TAILLIGHT
  • 18
    5631194 NUT, SEAT
    NUT, SEAT
  • 19
    7621472 RIVET
    RIVET
  • 20
    7542122 NUT, LOCK
    NUT, LOCK
  • 21
    7555960 WASHER
    WASHER
  • 22
    7670021 SPEED, NUT
    SPEED, NUT
  • 23
    7512193 BOLT
    BOLT
  • 24
    5810947 SEAL, FOAM COOLER (RIGHT)
    SEAL, FOAM COOLER (RIGHT)
  • 25
    8350018-160 TUBING, ETHER ERETHNE
    TUBING, ETHER ERETHNE
  • 26
    7080307 CLAMP
    CLAMP
  • 27
    7052259 FITTING
    FITTING
  • 28
    7052028 GROMMET, TANK FITTING
    GROMMET, TANK FITTING
  • 29
    7080402 RING, COMPRESSION
    RING, COMPRESSION
  • 30
    8350019-160 FUEL LINE
    FUEL LINE
  • 31
    7052301 PICK UP, FUEL W/FILTER
    PICK UP, FUEL W/FILTER
  • 32
    2520266 FUEL TANK ASSY. (INCL. 31, 33)
    FUEL TANK ASSY. (INCL. 31, 33)
  • 33
    7052095 FITTING, (90 DEG, 1/8)
    FITTING, (90 DEG, 1/8)
  • 34
    8450061-600 FUEL LINE (3MMX7MM)
    FUEL LINE (3MMX7MM)
  • 35
    7080804 CABLE TIE (5 1/2)
    CABLE TIE (5 1/2)
