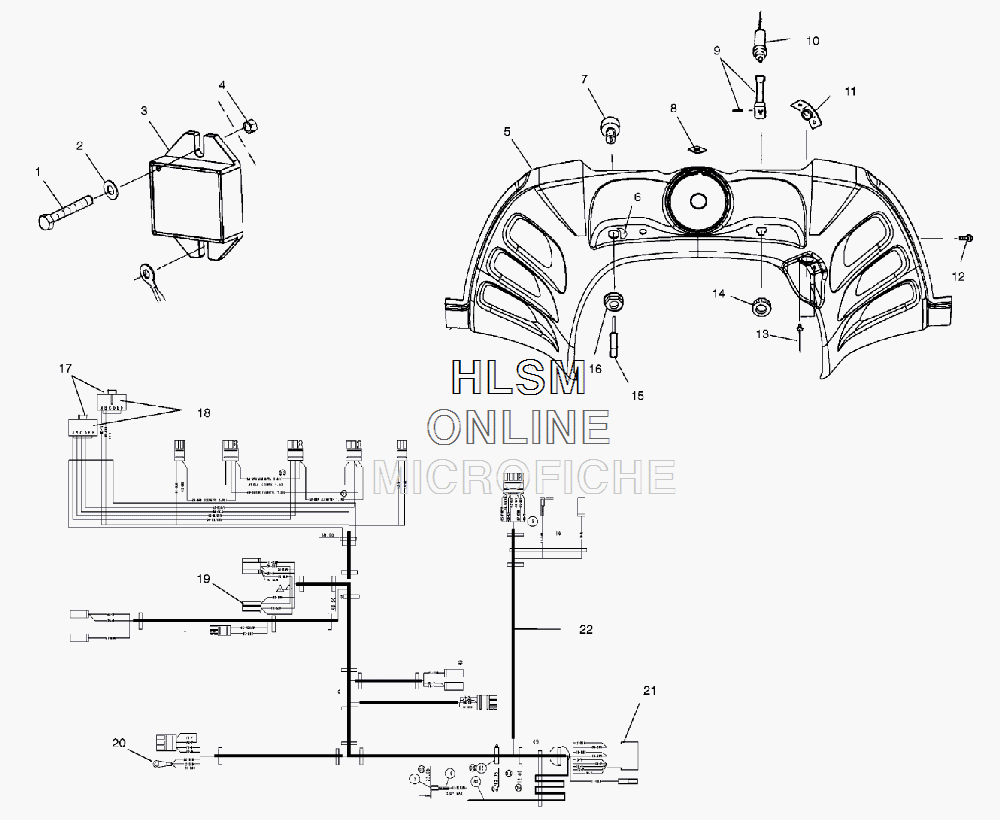

CONSOLE для Polaris 500 XC SP EDGE (S02NP5CSA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512031 BOLT
    BOLT
  • 2
    7555904 BURR, RIVET
    BURR, RIVET
  • 3
    4010301 REGULATOR, AC, (14.3 V)
    REGULATOR, AC, (14.3 V)
  • 4
    7541925 NUT
    NUT
  • 5
    5433724-070 CONSOLE, EDGE (BLACK)
    CONSOLE, EDGE (BLACK)
  • 6
    7078605 DECAL, CONSOLE IGNITION
    DECAL, CONSOLE IGNITION
  • 7
    2201614 IGNITION SWITCH KIT
    IGNITION SWITCH KIT
  • 8
    7670101 CLIP, X, MAS TREE
    CLIP, X, MAS TREE
  • 9
    2201439 CHOKE LEVER KIT (INCL. PIN)
    CHOKE LEVER KIT (INCL. PIN)
  • 10
    7080946 CABLE, CHOKE RACK (INCL. 9, 14)
    CABLE, CHOKE RACK (INCL. 9, 14)
  • 11
    5243049 GUIDE, RECOIL
    GUIDE, RECOIL
  • 12
    7515199 SCREW
    SCREW
  • 13
    7621330 RIVET, POP
    RIVET, POP
  • 14
    5432944 NUT, CHOKE
    NUT, CHOKE
  • 15
    9990000 CAP W/KEY
    CAP W/KEY
  • 16
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 17
    4010193 HOUSING, CONNECTOR (PAC #12186213)
    HOUSING, CONNECTOR (PAC #12186213)
  • 18
    4010192 SOCKET
    SOCKET
  • 19
    4020063 HOUSING
    HOUSING
  • 20
    4020092 TERMINAL, RING
    TERMINAL, RING
  • 21
    4020057 HOUSING W/RECEPTACLE
    HOUSING W/RECEPTACLE
  • 22
    2460792 HARNESS, MAIN WIRE (COMMON)
    HARNESS, MAIN WIRE (COMMON)
