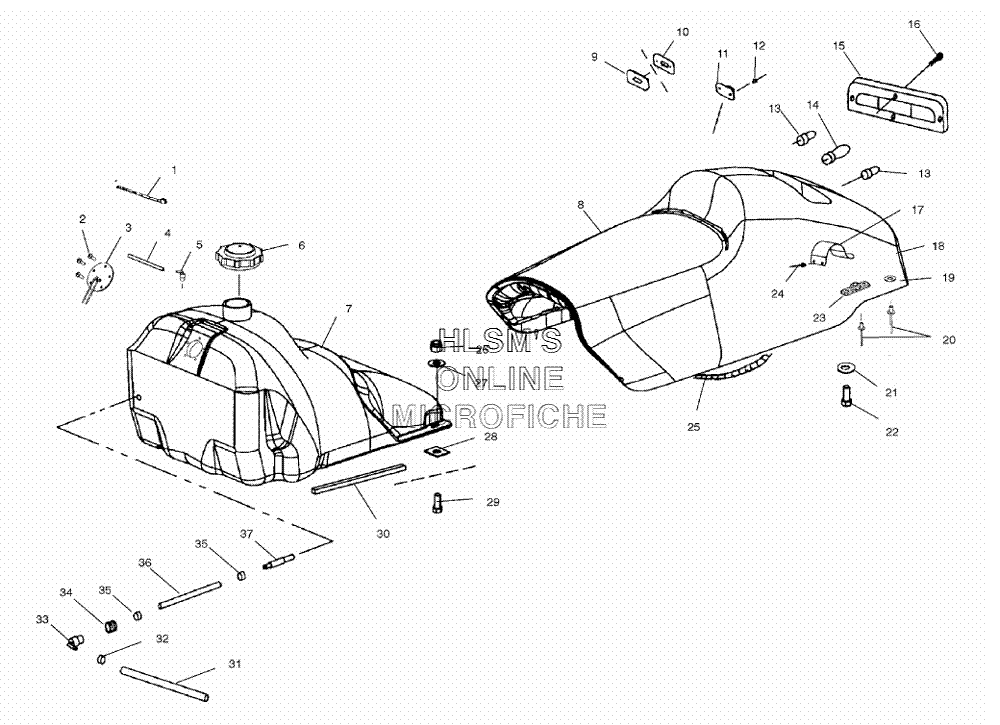

SEAT W/ GAS TANK ASSEMBLY для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска
-
№АртикулНазвание
-
17080804 CABLE TIE, RELEASABLE 5 1/2''CABLE TIE, RELEASABLE 5 1/2''
-
27512045 BOLT, S.S.BOLT, S.S.
-
32410165 SENDER, FUEL, 12.0 GAL, SNOWSENDER, FUEL, 12.0 GAL, SNOW
-
48450061 TUBINGTUBING
-
57052095 FITTING, 90 DEG,1/8FITTING, 90 DEG,1/8
-
62511195-070 CAP ASSY, FUEL (BLACK) (INCL. GASKET)CAP ASSY, FUEL (BLACK) (INCL. GASKET)
-
65810512 GASKET, FUEL CAPGASKET, FUEL CAP
-
72520264 ASSY., FUEL TANK EDGE 12 GAL W/SD (INCL. 5,37)ASSY., FUEL TANK EDGE 12 GAL W/SD (INCL. 5,37)
-
82682759 ASSY., SEAT EDGE (INCL. 8-18,25)ASSY., SEAT EDGE (INCL. 8-18,25)
-
82682760 ASSY., SEAT COVER, EDGEASSY., SEAT COVER, EDGE
-
97080550 GROMMET, RELATCH 1'' (BOTTOM)GROMMET, RELATCH 1'' (BOTTOM)
-
107080549 GROMMET, RELATCH 1'' (TOP)GROMMET, RELATCH 1'' (TOP)
-
117080548 TWISTLOCK, RELATCH 1'' W/HOLETWISTLOCK, RELATCH 1'' W/HOLE
-
127621337 RIVETRIVET
-
134030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
144030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
155430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
167511840 SCREWSCREW
-
175243185 RETAINER, CLIP TOOL POUCHRETAINER, CLIP TOOL POUCH
-
185433341 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
197555727 RIVET BURRRIVET BURR
-
207621319 RIVETRIVET
-
217558301 WASHERWASHER
-
227515159 SCREWSCREW
-
235631194 NUT, SEATNUT, SEAT
-
247621472 RIVETRIVET
-
252460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
267542122 NUT, LOCKNUT, LOCK
-
277555960 WASHERWASHER
-
287670021 SPEED NUTSPEED NUT
-
297512193 BOLTBOLT
-
305810947 SEAL, FOAM. COOLER (REAR)SEAL, FOAM. COOLER (REAR)
-
318350018-600 TUBING, ETHER ERETHNE 160CM SVCTUBING, ETHER ERETHNE 160CM SVC
-
327080307 CLAMPCLAMP
-
337052259 FITTING, 1/4'' 90Ш DEXFITTING, 1/4'' 90Ш DEX
-
347052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
357080402 RING, COMPRESSIONRING, COMPRESSION
-
368350019-600 FUEL LINE, ESTERFUEL LINE, ESTER
-
377052301 PICK-UP, FUEL W/FILTERPICK-UP, FUEL W/FILTER
