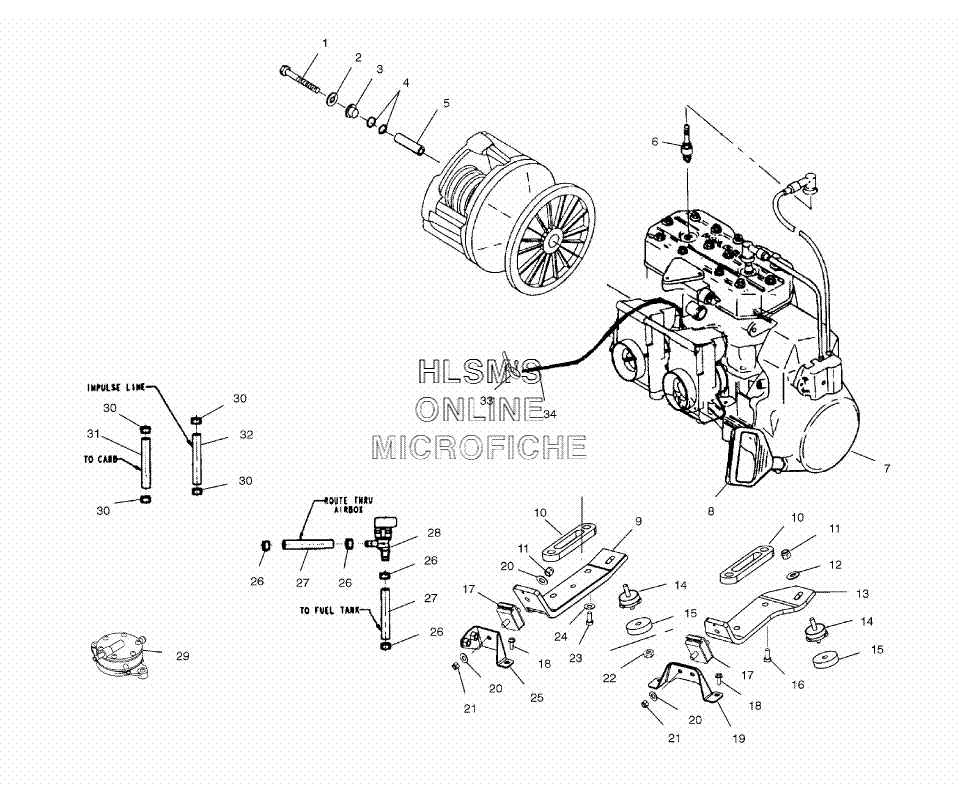

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска
-
№АртикулНазвание
-
17512565 BOLTBOLT
-
27575202 WASHER LOCKWASHER LOCK
-
35010278 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
63070166 SPARKPLUG (RN3C)SPARKPLUG (RN3C)
-
73086877 ENGINE SHORT BLOCK ASSY.ENGINE SHORT BLOCK ASSY.
-
85431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
95245473 STRAP, ENGINE MOUNT 500 (LEFT)STRAP, ENGINE MOUNT 500 (LEFT)
-
105245021 SPACER, ENGINESPACER, ENGINE
-
117542451 NUT, NYLOCNUT, NYLOC
-
127555893 WASHERWASHER
-
135245019 STRAP, ENGINE MOUNT (RIGHT)STRAP, ENGINE MOUNT (RIGHT)
-
143021220 MOUNT, ENGINEMOUNT, ENGINE
-
155245117 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
167517399 SCREWSCREW
-
173021206 MOUNT, ENGINEMOUNT, ENGINE
-
187517854 SCREWSCREW
-
195245044 BRACKET, ENGINE MOUNT FORMED (RIGHT)BRACKET, ENGINE MOUNT FORMED (RIGHT)
-
207555806 WASHERWASHER
-
217547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
227547180 NUT, FLANGED 3/8-16 NYLONNUT, FLANGED 3/8-16 NYLON
-
237517442 BOLTBOLT
-
247553101 WASHER LOCKWASHER LOCK
-
251013397 WELD, ENGINE MOUNT BRACKET (LEFT)WELD, ENGINE MOUNT BRACKET (LEFT)
-
267080307 CLAMPCLAMP
-
278350018-600 TUBING, ETHER ERETHNE 160CM SVCTUBING, ETHER ERETHNE 160CM SVC
-
287052249 VALVE, FUEL PLASTIC 90Ш, 1/4HOSEVALVE, FUEL PLASTIC 90Ш, 1/4HOSE
-
293087012 FUEL PUMP ASSY.FUEL PUMP ASSY.
-
307080003 CLAMP, HOSECLAMP, HOSE
-
318350017-600 FUEL LINE, ETHER, 5/16'' (RED)FUEL LINE, ETHER, 5/16'' (RED)
-
328450040-600 FUEL LINE (1/4 ID 600 CM.)FUEL LINE (1/4 ID 600 CM.)
-
337080138 CABLE TIECABLE TIE
-
347080770 CABLE, THROTTLE SINGLE RACK CARB.CABLE, THROTTLE SINGLE RACK CARB.
