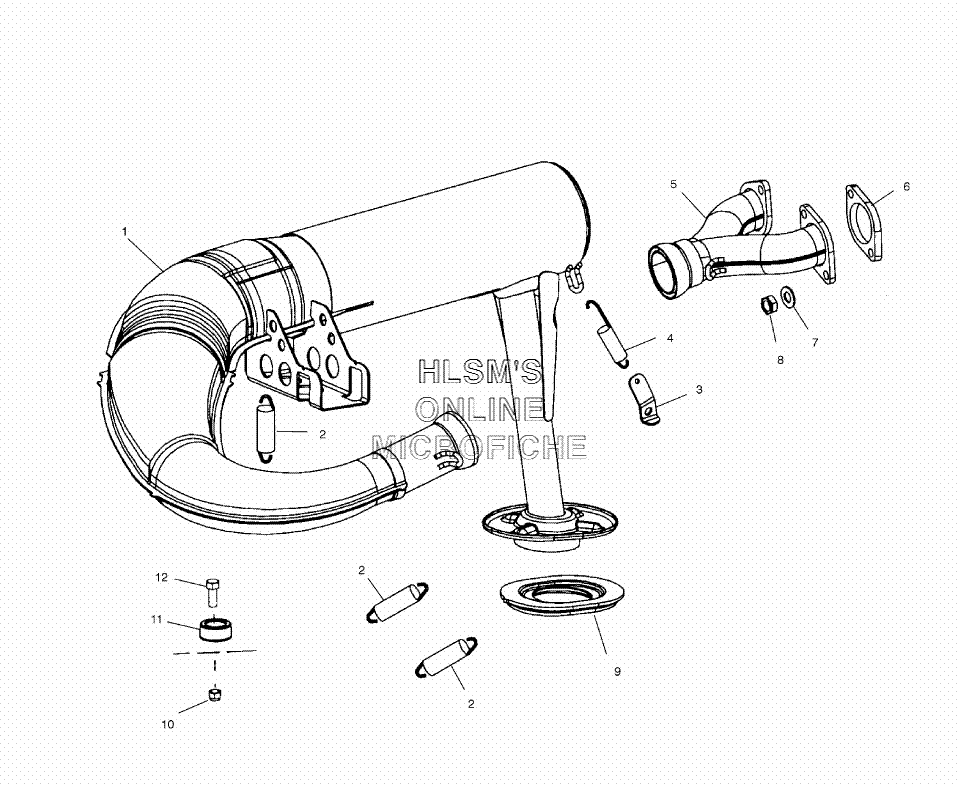

EXHAUST SYSTEM для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1261070-029 TUNED PIPE (MUFFLER) (BLACK)
    TUNED PIPE (MUFFLER) (BLACK)
  • 2
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 3
    5244450 RETAINER, SPRING
    RETAINER, SPRING
  • 4
    7042029 SPRING, EXHAUST
    SPRING, EXHAUST
  • 5
    1261074-029 MAINFOLD (BLACK)
    MAINFOLD (BLACK)
  • 6
    3086995 GASKET, EXHAUST (SEE CYLINDER)
    GASKET, EXHAUST (SEE CYLINDER)
  • 7
    3080530 WASHER, LOCK (SEE CYLINDER)
    WASHER, LOCK (SEE CYLINDER)
  • 8
    3087199 NUT (SEE CYLINDER)
    NUT (SEE CYLINDER)
  • 9
    5411902 BOOT, EXHAUST OUTLET
    BOOT, EXHAUST OUTLET
  • 10
    7547180 NUT, FLANGED (3/8-16 NYLON)
    NUT, FLANGED (3/8-16 NYLON)
  • 11
    5433576 DAMPENER, VIBRATIONS
    DAMPENER, VIBRATIONS
  • 12
    7517935 SCREW
    SCREW
