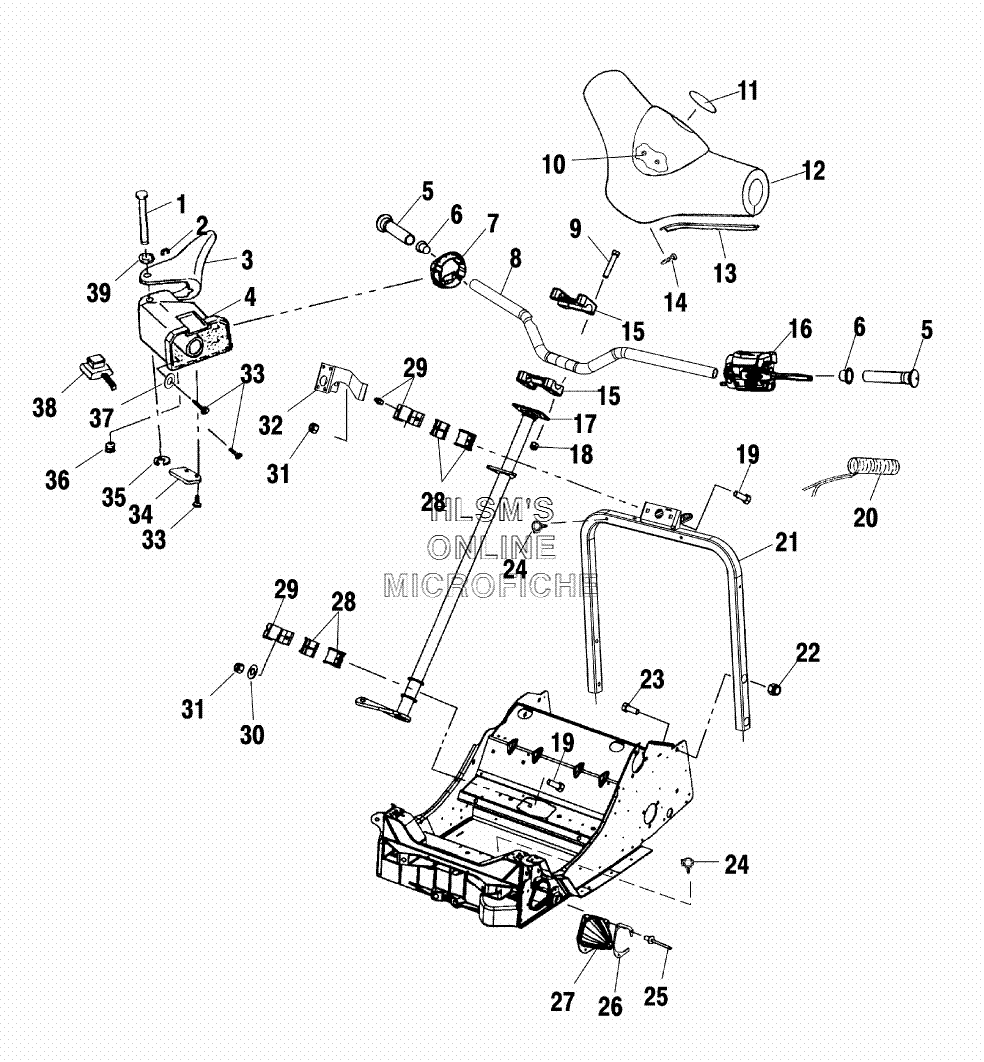

HANDLEBAR ASSEMBLY для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска
-
№АртикулНазвание
-
17661624 PIN, HINGEPIN, HINGE
-
27710503 RETAINING RINGRETAINING RING
-
35432970 THROTLE LEVER, 35.5MMTHROTLE LEVER, 35.5MM
-
32010171 LEVER ASSY., HTR, HI/LO 35.5MMLEVER ASSY., HTR, HI/LO 35.5MM
-
45431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
55432634 GRIP, HANDLEBAR SNOWGRIP, HANDLEBAR SNOW
-
65431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
75433345 ADAPTER, BLOCK THROTTLEADAPTER, BLOCK THROTTLE
-
85243355-067 HANDLE BAR (BLACK)HANDLE BAR (BLACK)
-
97517238 SCREWSCREW
-
107670106 NUT, PUSH ONNUT, PUSH ON
-
115434179 EMBLEM, ''STAR'' PLM. BEZEL, HANDLEBAREMBLEM, ''STAR'' PLM. BEZEL, HANDLEBAR
-
125433159-070 COVER, HANDLEBAR (BLACK)COVER, HANDLEBAR (BLACK)
-
135433160-070 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
144010287 DART, CLIP NYLON (BLACK)DART, CLIP NYLON (BLACK)
-
155630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
162010167 ASSY., CONTROL (SEE BRAKE) (LEFT)ASSY., CONTROL (SEE BRAKE) (LEFT)
-
171820965-067 WELD, STEERING POST EDGE (BLACK)WELD, STEERING POST EDGE (BLACK)
-
187542122 NUT, LOCKNUT, LOCK
-
197517579 BOLT, CARR 5/16-X1'' GR5BOLT, CARR 5/16-X1'' GR5
-
202460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
211013602-067 WELD, STEERING HOOP, REV (BLACK)WELD, STEERING HOOP, REV (BLACK)
-
227542343 NUT, NYLOCKNUT, NYLOCK
-
237512377 BOLTBOLT
-
244020139 CLIP, PLASTICCLIP, PLASTIC
-
257621433 RIVETRIVET
-
265244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
275433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
275433533 BOOT,TIE ROD (RIGHT)BOOT,TIE ROD (RIGHT)
-
285432785 BUSHING, STEERING POSTBUSHING, STEERING POST
-
295131841 BRACKET, STEERING POSTBRACKET, STEERING POST
-
297080510 FITTING, ZERKFITTING, ZERK
-
307558402 WASHER STEELWASHER STEEL
-
317542324 NUTNUT
-
325244829 BRACKET, CONSOLE SUPPORTBRACKET, CONSOLE SUPPORT
-
337511848 SCREW, SEMSSCREW, SEMS
-
345432261 HOLDER, WIREHOLDER, WIRE
-
357710401 'E' RING'E' RING
-
367512465 SCREWSCREW
-
377555727 RIVET BURRRIVET BURR
-
384110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
-
397555730 WASHERWASHER
