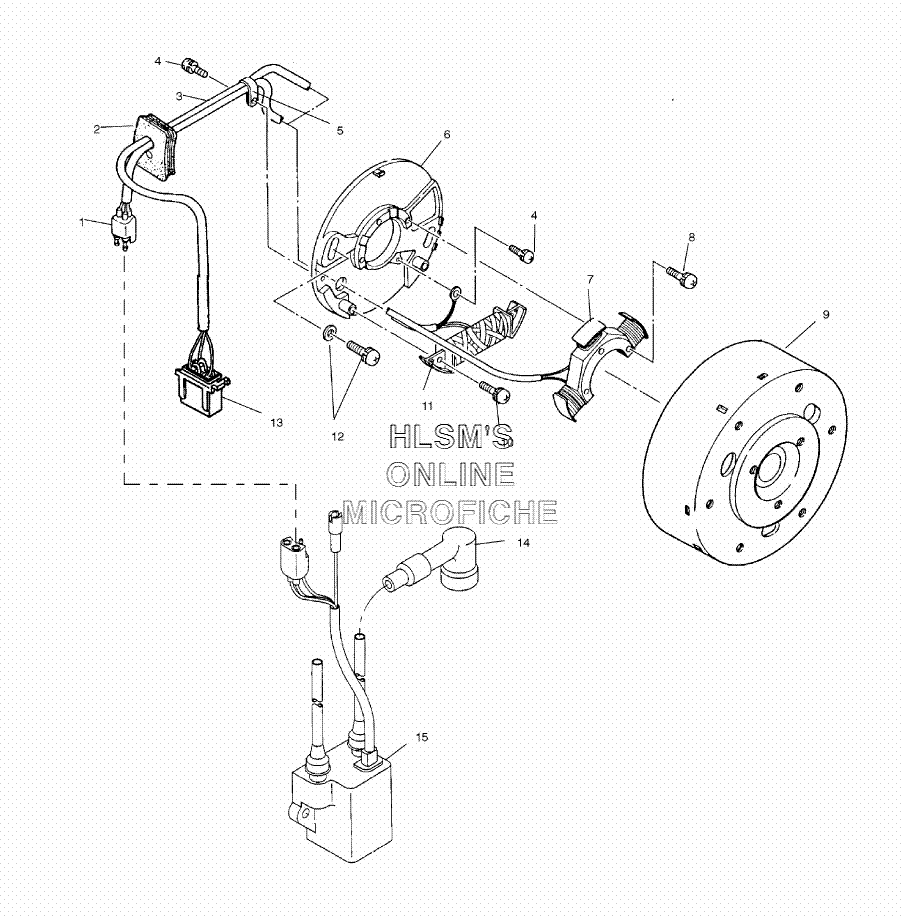

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска
-
№АртикулНазвание
-
13083909 COUPLERCOUPLER
-
23082969 GROMMETGROMMET
-
33087007 HARNESS, WIRE (INCL. 2)HARNESS, WIRE (INCL. 2)
-
43081260 SCREW AND WASHERSCREW AND WASHER
-
53081296 CLAMPCLAMP
-
63087004 ASSY., PLATE (INCL. 1-8,10,11,13)ASSY., PLATE (INCL. 1-8,10,11,13)
-
63083987 PLATE, COILPLATE, COIL
-
73083991 STATOR 1STATOR 1
-
83082365 SCREWSCREW
-
93087005 ASSY, FLYWHEELASSY, FLYWHEEL
-
103083423 SCREW AND WASHERSCREW AND WASHER
-
113083984 COIL, EXCITERCOIL, EXCITER
-
123082175 SCREW AND WASHERSCREW AND WASHER
-
133081513 COUPLER, MALECOUPLER, MALE
-
144020129 CAP SPARK PLUGCAP SPARK PLUG
-
153087006 COIL, IGNITIONCOIL, IGNITION
